Extreme 10444 Compatible 20m(66ft) 100G QSFP28 to 4 SFP28 AOC(Active Optical Cable), Breakout #10444

Extreme 10444 Compatible 20m(66ft) 100G QSFP28 to 4 SFP28 AOC(Active Optical Cable), Breakout #10444

$304.20

HF P/N: AOC-Q44S-020

MFG P/N: 10444

Shipping Cost: Free Shipping on orders over USD $800

Availability: in stock

loading...

Extreme 10444 Compatible 20m(66ft) 100G QSFP28 to 4 SFP28 AOC(Active Optical Cable), Breakout #10444

$304.20

HF P/N: AOC-Q44S-020

MFG P/N: 10444

Shipping Cost: Free Shipping on orders overUSD $800

Availability: in stock

Description

Extreme 10444 Compatible 20m(66ft) 100G QSFP28 to 4 SFP28 AOC(Active Optical Cable), Breakout

QSFP+ Extender Solutions
Used for long-distance transmission under 40G QSFP+. The QSFP+ Port could be transferred/converted into 4x SFP+ port by Direct Attach Copper (DAC) technology under very low insert lose.
Learn More
Learn More
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More

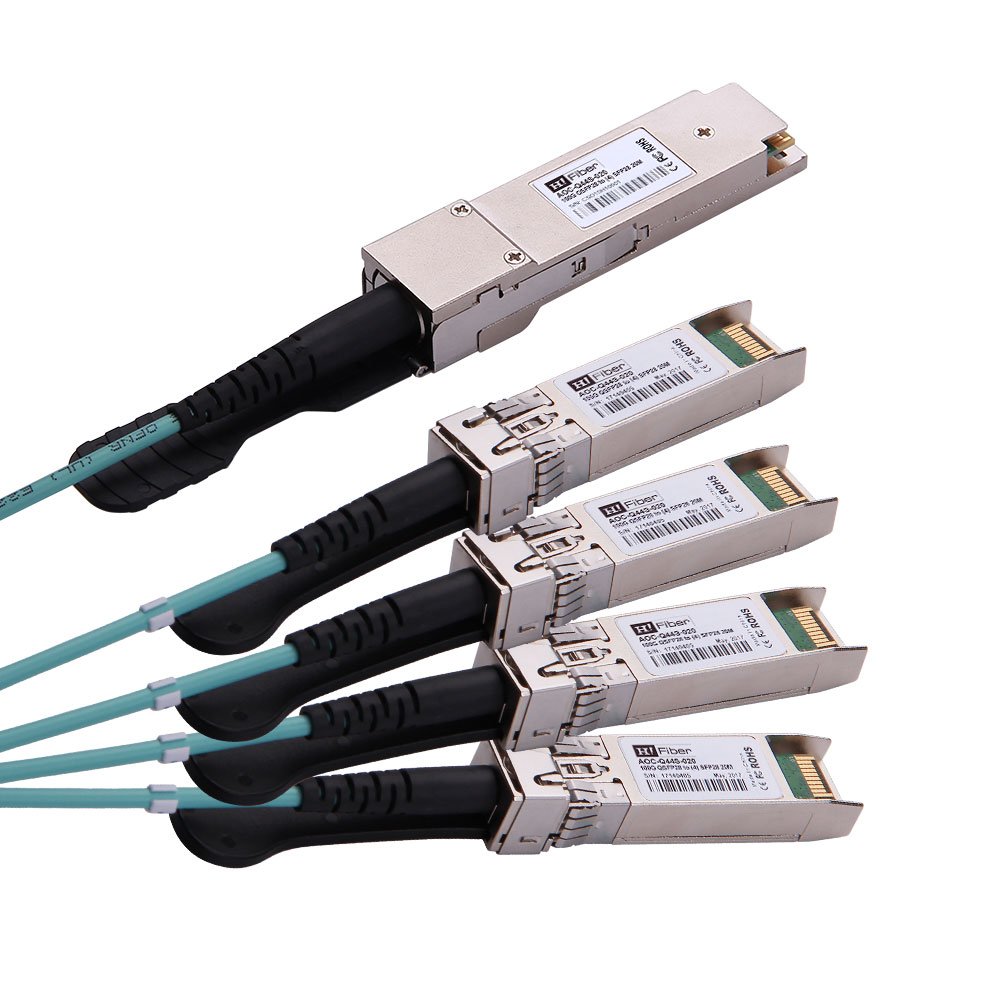

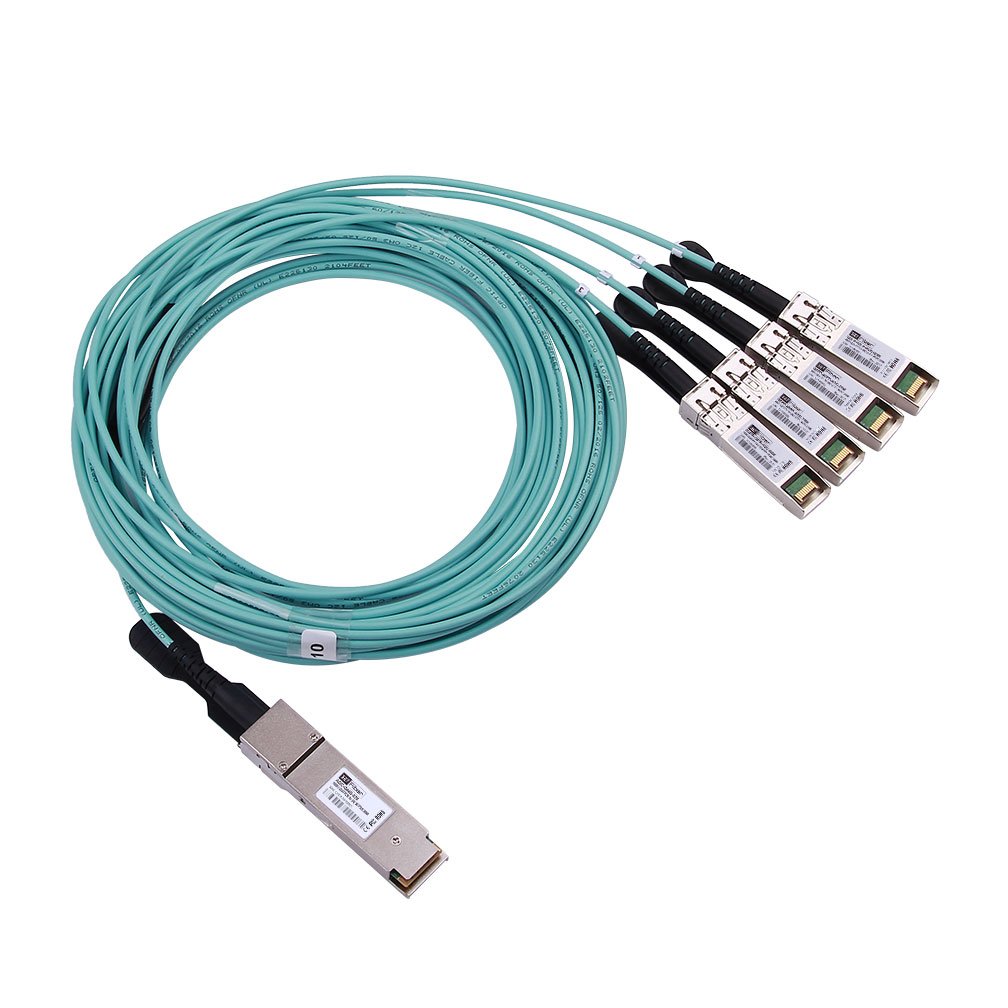

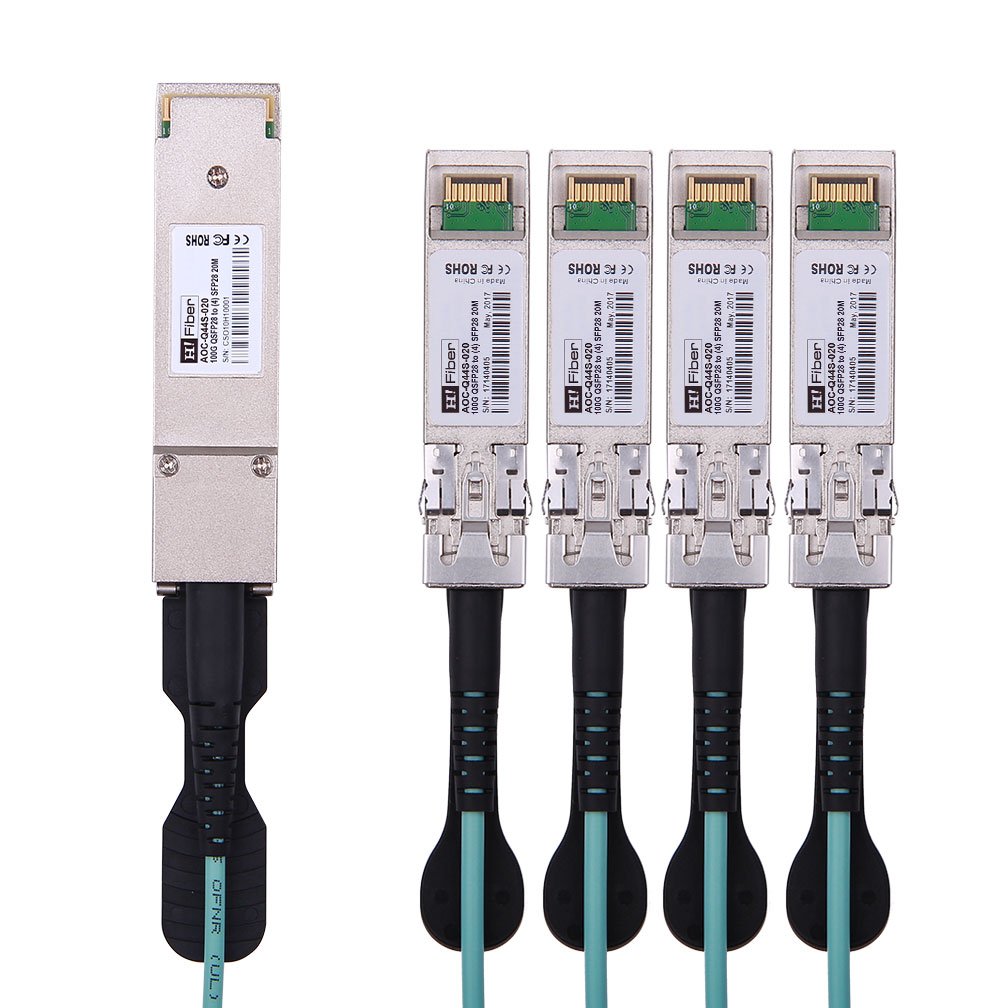

The Hifiber AOC-Q44S-020 is a VCSEL-based, cost-effective 100GbE with 4x25GbE active optical splitter cable (AOC) designed for use in 100GbE Ethernet systems. The AOC-Q44S-020 is compliant with SFF-8402 for the SFP28 ends and with SFF-8665 for the QSFP28 end. It provides connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other side, such as a switch and four servers. The cable connects data signals from each of the 4 MMF(Multi-Mode Fiber) pairs on the QSFP28 end to the single pair of each on the SFP28 ends. Each QSFP and SFP port comprises an EEPROM providing product and status monitoring information which can be read by the host system.

Features

  • Electrical interface compliant to SFF-8436 and SFF-8431
  • 850nm VCSEL laser and PIN photo-detector
  • Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
  • Digital diagnostics functions are available via the I2C interface
  • RoHS compliant
  • Hot Pluggable

Applications

  • 25GBASE-SR Ethernet
  • InfiniBand QDR, SDR, DDR
  • Servers, switches, storage and host card adapters
Specifications/Parameters

Specifications/Parameters

HF P/N
AOC-Q44S-020
MFG P/N
10444
Brands
Extreme
Manufacturer
HiFiber
Connector Type
QSFP28 to 4 SFP28
Fiber(Cable) Type
Active Optical Cable
Length
20m
Max Data Rate
100Gbps
