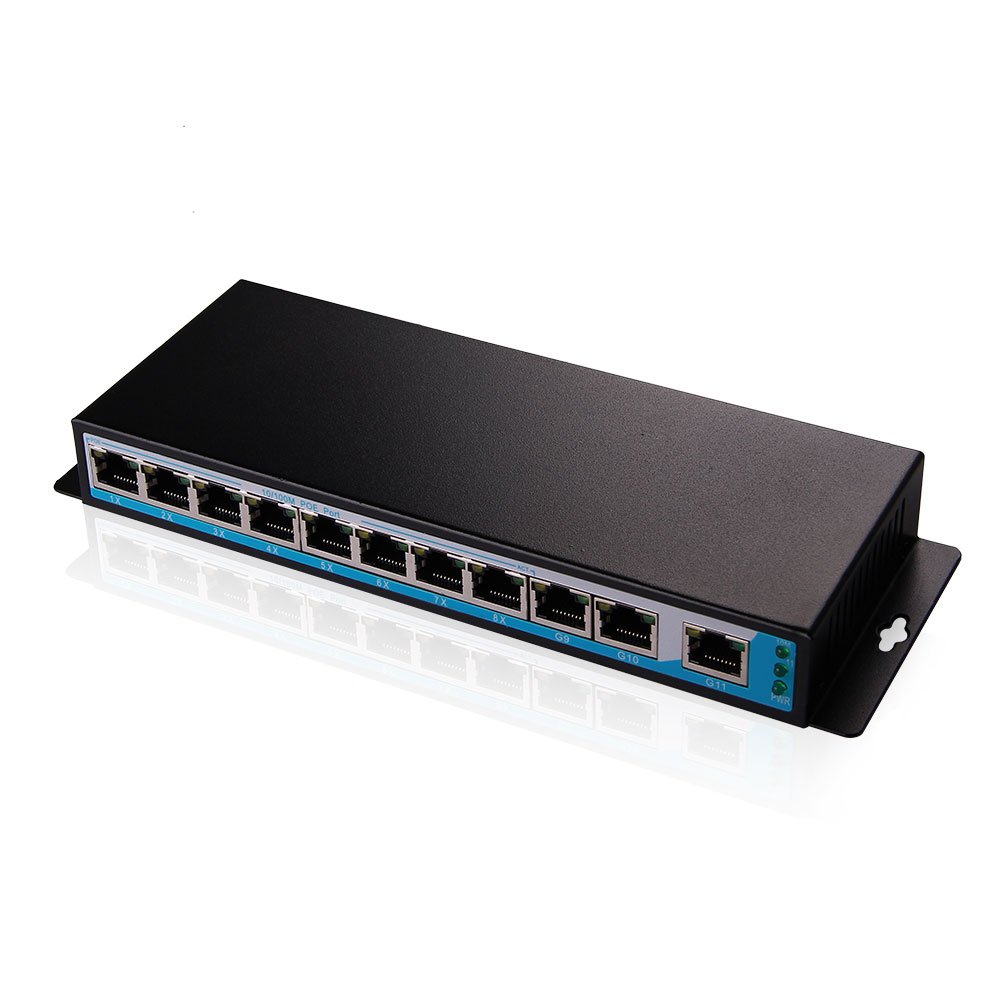

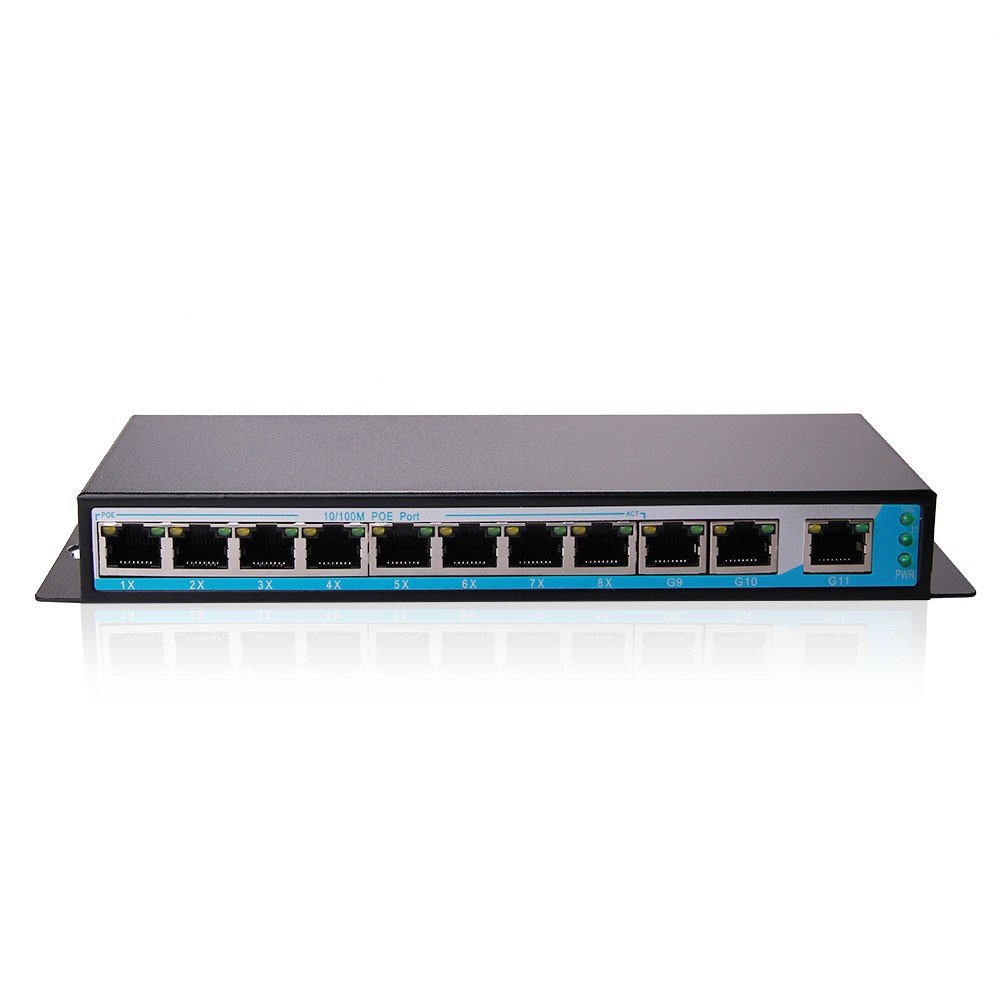

11-Port PoE Switch, with 8x 10/100Mbps PoE Ports, Unmanaged, 802.3af, 96W Power Budget, application for Access points, VoIP phone, IP Camera
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
HiFiber's 8-Port PoE Switch, adapted high-quality high-speed network IC and the most stable PoE chip, PoE port to meet the 802.3af or 802.3at standard. This series of PoE switches can be 10 / 100M Ethernet Network providing seamless connection, and PoE power supply port can automatically detect IEEE802.3af or IEEE802.3at compliant power supply equipment and its power supply, only transmit data for non-PoE equipment.
PoE technology (Power over Ethernet), refers to the power supply technology that some IP-based terminals(such as IP telephones, wireless access AP, network cameras, etc.) provide DC power for the device while transmitting data signals. Those equipments which receive DC power supply called power receiving equipment.
This series of PoE switches, use 8 PoE ports + 3 uplink non-PoE Gigabit adaptive RJ-45 ports, the uplink port used to provide network data and network equipment docking.
Highlights
- 96W total power, each PoE port power up to 15.4W.
- 8x PoE Ports(10/100M) + 3x Uplink RJ-45 Ports(10/100/1000M)
- RJ45 PoE Auto-negotiation 10/100M Ethernet
- Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af
- No Support Network management
Features
- Support power by a Cat.5 Ethernet cable wireless access point(AP) and network surveillance cameras
- 1～24 port support IEEE802.3af standard or IEEE802.3atstandard power(Optional)
- Auto-negotiation 10/100M or 10/100/1000M
- Complies with IEEE 802.3 10Base-T and IEEE 802.3u100Base-TX standard
- Flow control:IEEE 802.3x flow control for Full-duplex Mode,Backpressure for Half-duplex Mode
- Auto-MDI/MDIX
- Supports uplink port Lightning protection
- Each PoE port power up to 15.4W
- Adopts store and forward switching mechanism
- All ports support wire-speed switching, frame size in the range of64 to 1536 can achieve wire-speed
- Supports MAC address auto-learning and auto-update function
- High performance full load power configuration
Application
- Metro optical broadband network: telecommunications, cable television, network systems integration and other data network operators.
- Broadband private network: suitable for the financial, government, oil, railways, electricity,public security, transportation, education and other industry private network.
- Multimedia transmission: image, voice, data, integrated transmission for remote teaching, video conferencing, video telephony etc.
- Real-time monitoring: real-time control signal, image and data transmission simultaneously.
- anti-poor environment: suitable for strong electromagnetic interference, long-distance harsh environment to networking.
Specifications
Technical Parameter List
|
Product Name
|
8-Port AF PoE Switch with 8 PoE Ports and 3 Gigabit Uplink ports
|
|
Model
|
A7S3-31-3GT8TX
|
|
Connector Type
|
8-ports 10/100M POE port, with 3-ports Gigabit Uplink Ethernet port
|
|
Bandwidth
|
7.6Gbps (non-blocking)
|
|
PoE Standard
|
IEEE 802.3af( each port 15.4W)
IEEE 802.3at(each port 30W)
|
|
POE Compatibility
|
AF/AT self-adaptive
|
|
POE power output
|
DC48V
|
|
Power Supply
|

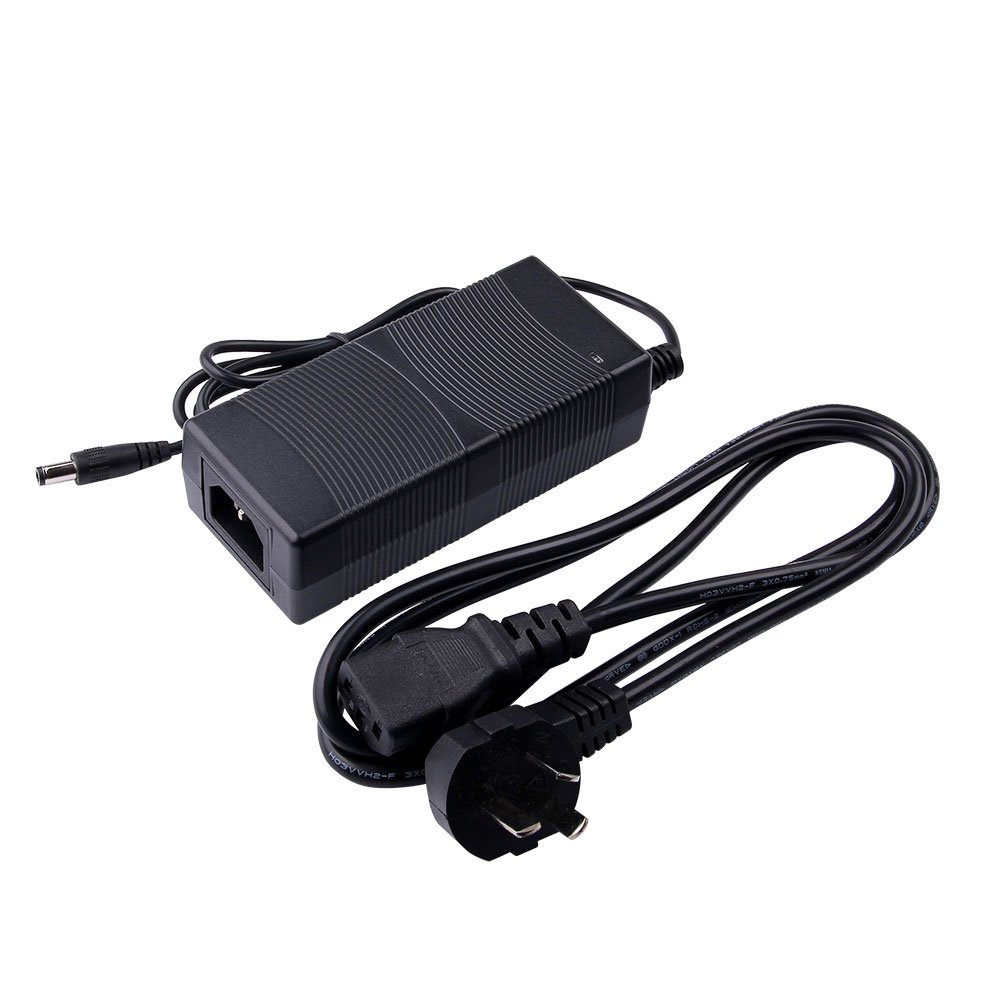

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
|
|
PoE power pin
|
12+,36- (45+,78- Optional)
|
|
PoE Port Power
|
15.4W for each POE port
|
|
PoE Feature
|
All ports support MDI/MDIX
|
|
Network Protocols
|
Support IEEE802.3, IEEE802.3u, IEEE802.3x
|
|
MAC address
|
2K
|
|
Network Media
|
10BASE-T: Cat6 UTP(≤250 meter) ;100BASE-TX: Cat5 or more UTP (≤100 meter);
1000BASE-TX: Cat5 or more UTP (≤100 meter)
|
|
LED Indicator
|
10M: it is on 10Mbps transmission rate while it’s blink
PWR:power is connect while it’s on green
Yellow light; POE Running
Green light: Ethernet Running
|
|
Working Environment
|
Operating Temperature: 0°~ 50°C; Storage Temperature: -40°~ 70°C;
Operating Humidity: max 90%, non-condensing
|
|
Certification
|
CE,CCC,FCC,RoHs
|
|
Transmission Distance
|
PoE transmission distance:100meters,250meters(when it’s on 10Mbps rate with Cat6 or more)
Uplink port transmission distance:100Meters(Uplink RJ45 port); 20KM by default(Uplink fiber port)
|
|
Warranty
|
2 year warranty(1 year warranty for power adapter)
|
