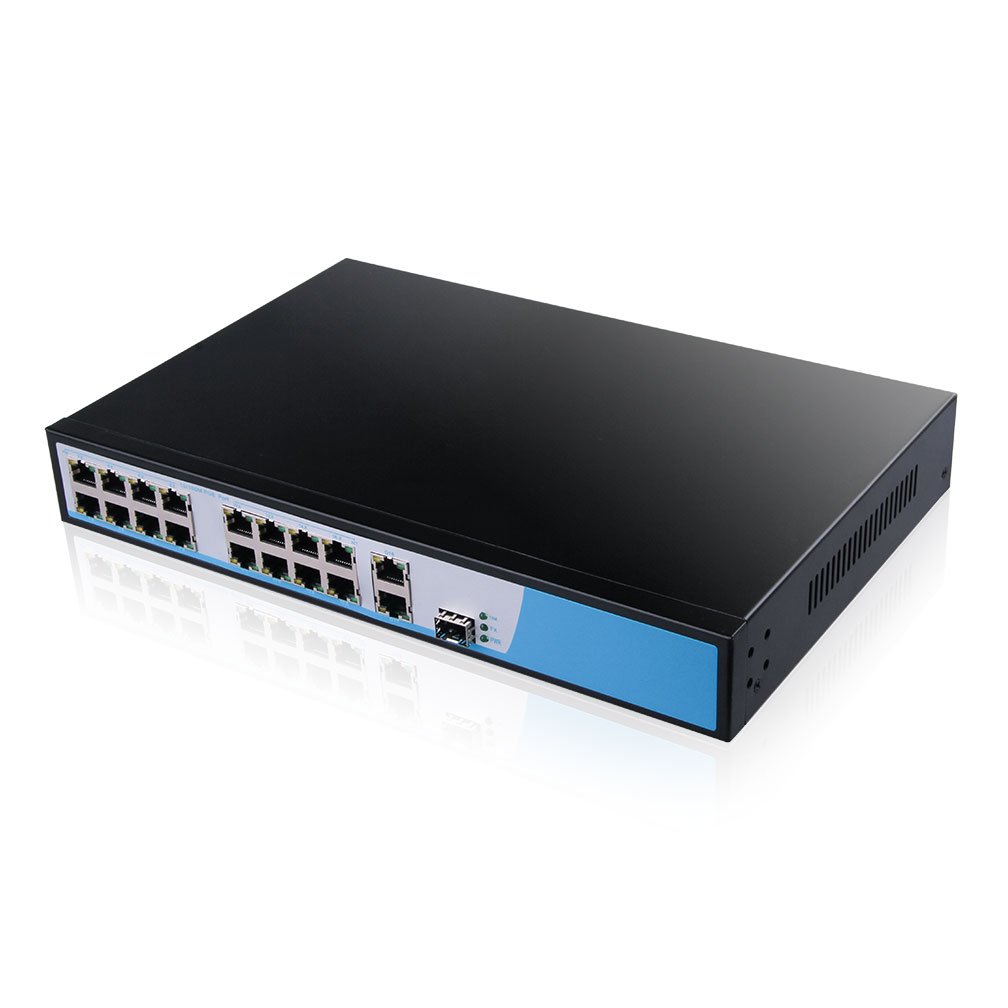

300W 16-Port Fast Ethernet PoE Switch 10/100, with 300W 16-PoE Ports, Support IEEE 802.3af/at
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Hifiber's 16-Port PoE Switch, adapted high-quality high-speed network IC and the most stable PoE chip, PoE port to meet the 802.3af or 802.3at standard. This series of PoE switches can be 10 / 100M Ethernet Network providing seamless connection, and PoE power supply port can automatically detect IEEE802.3af or IEEE802.3at compliant power supply equipment and its power supply, only transmit data for non-PoE equipment.
PoE technology (Power over Ethernet), refers to the power supply technology that some IP-based terminals(such as IP telephones, wireless access AP, network cameras, etc.) provide DC power for the device while transmitting data signals. Those equipments which receive DC power supply called power receiving equipment.

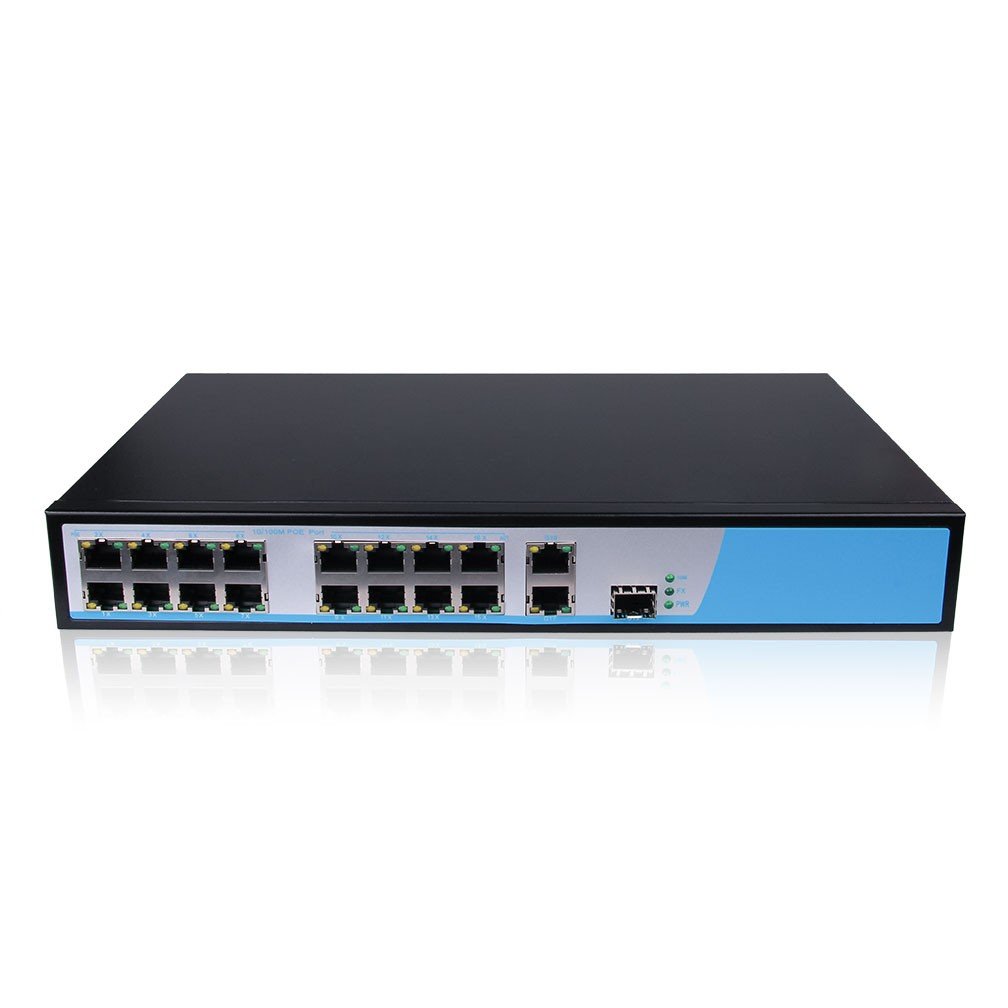

This series of PoE switches, use 16 ports 10/100M POE port+2 ports Gigabit Uplink Ethernet port+1 port Gigabit Uplink SFP port, the uplink port used to provide network data and network equipment docking.
Highlights
- 300W total power, each PoE port power up to 30W.
- 16 ports 10/100M POE port+2 ports Gigabit Uplink Ethernet port+1 port Gigabit Uplink SFP port
- RJ45 PoE Auto-negotiation 10/100M Ethernet
- Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
- No Support Network management
Features
- Support power by a Cat.5 Ethernet cable wireless access point(AP) and network surveillance cameras
- 1～16 port support IEEE802.3af standard or IEEE802.3atstandard power(Optional)
- Auto-negotiation 10/100M?
- Complies with IEEE 802.3 10Base-T and IEEE 802.3u100Base-TX standard
- Flow control:IEEE 802.3x flow control for Full-duplex Mode,Backpressure for Half-duplex Mode
- Auto-MDI/MDIX
- Supports uplink port Lightning protection
- Each PoE port power up to 30W(AF/AT)?
- Adopts store and forward switching mechanism
- All ports support wire-speed switching, frame size in the range of64 to 1536 can achieve wire-speed
- Supports MAC address auto-learning and auto-update function
- High performance full load power configuration
Applications
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system (ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
Application
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system (ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
Specifications
Technical Parameter List
|
Product Name
|
19-Port AF PoE Switch with 16 PoE Ports and 3 Gigabit Uplink ports
|
|
Model
|
A7S3-35-1GX2GT16TX-SFP
|
|
Connector Type
|
16-ports 10/100M POE port, with 2-ports Gigabit Uplink Ethernet port+1-port Gigabit Uplink SFP port
|
|
Optical
|
Multi mode fiber: 1310nm, 2Km
Single mode fiber: 1310nm, 20/40 Km
1550nm, 60/80/100/120Km
|
|
Bandwidth
|
9.2Gbps (non-blocking)
|
|
PoE Standard
|
IEEE 802.3af( each port 15.4W)
IEEE 802.3at(each port 30W)
|
|
POE Compatibility
|
AF/AT self-adaptive
|
|
POE power output
|
DC48V
|
|
Power Supply
|

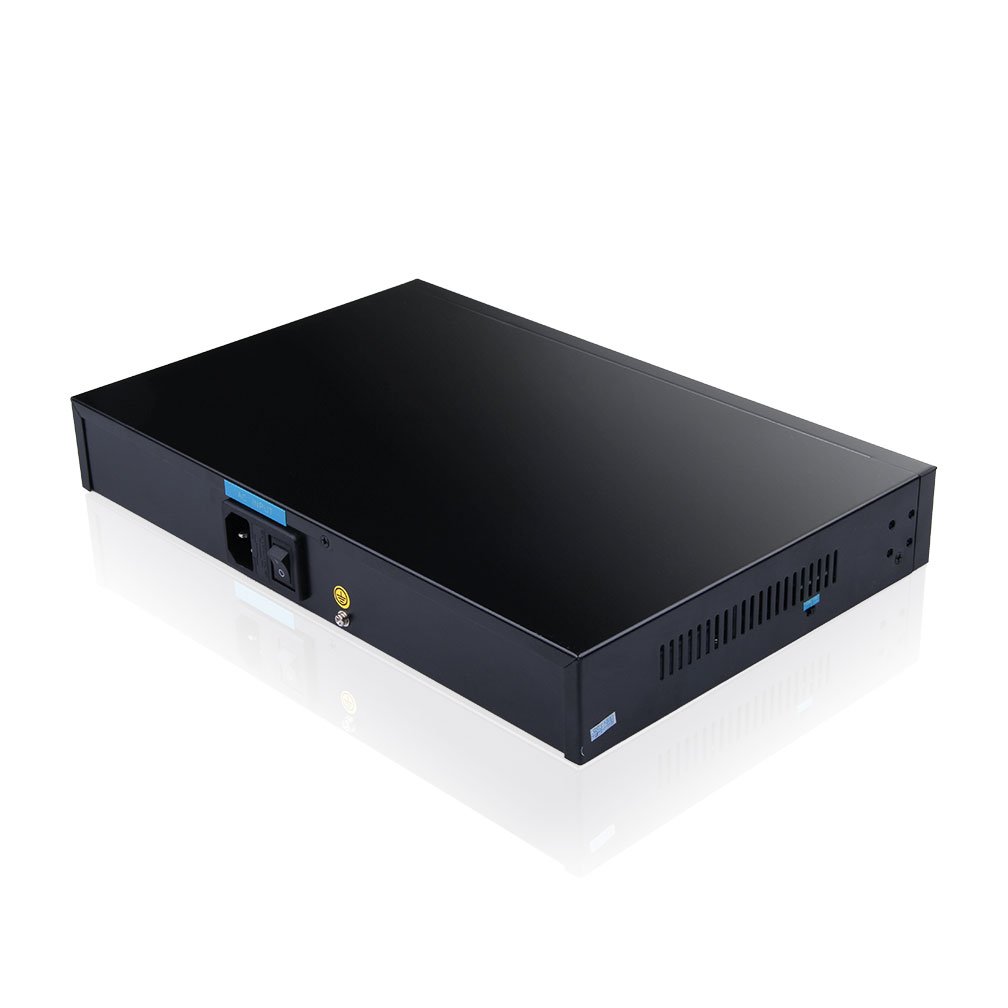

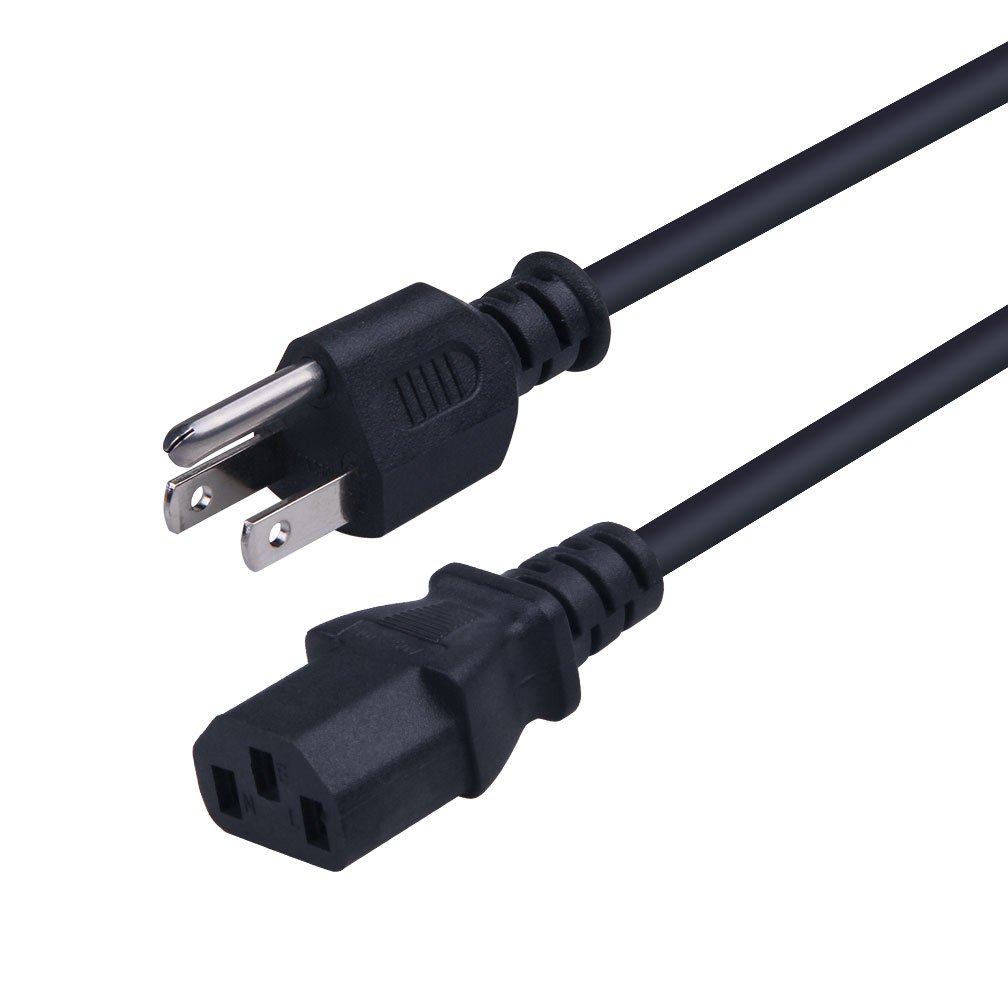

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
|
|
PoE power pin
|
12+,36- ( 45+,78- Optional)
|
|
PoE Port Power
|
15.4W for each POE port
|
|
PoE Feature
|
All ports support MDI/MDIX
|
|
Network Protocols
|
Support IEEE802.3, IEEE802.3u, IEEE802.3x
|
|
MAC address
|
8K
|
|
Network Media
|
10BASE-T: Cat6 UTP(≤250 meter) ;100BASE-TX: Cat5 or more UTP (≤100 meter); 1000BASE-TX: Cat5 or more UTP (≤100 meter)
|
|
LED Indicator
|
10M: it is on 10Mbps transmission rate while it’s blink
PWR:power is connect while it’s on green
Yellow light; POE Running
Green light: Ethernet Running
|
|
Working Environment
|
Operating Temperature: 0 ° ~ 50° C; Storage Temperature: -40 ° ~ 70° C; Operating Humidity: max 90%, non-condensing
|
|
Certification
|
CE,CCC,FCC,RoHs
|
|
Transmission Distance
|
POE transmission distance:100meters, 250meters(when it’s on 10Mbps rate with Cat.6 or more )
Uplink transmission distance: 100meters( Uplink RJ45 port);
Depend on your SFP module( Uplink SFP port)
|
|
Warranty
|
2 year warranty( 1 year warranty for power adapter)
|
