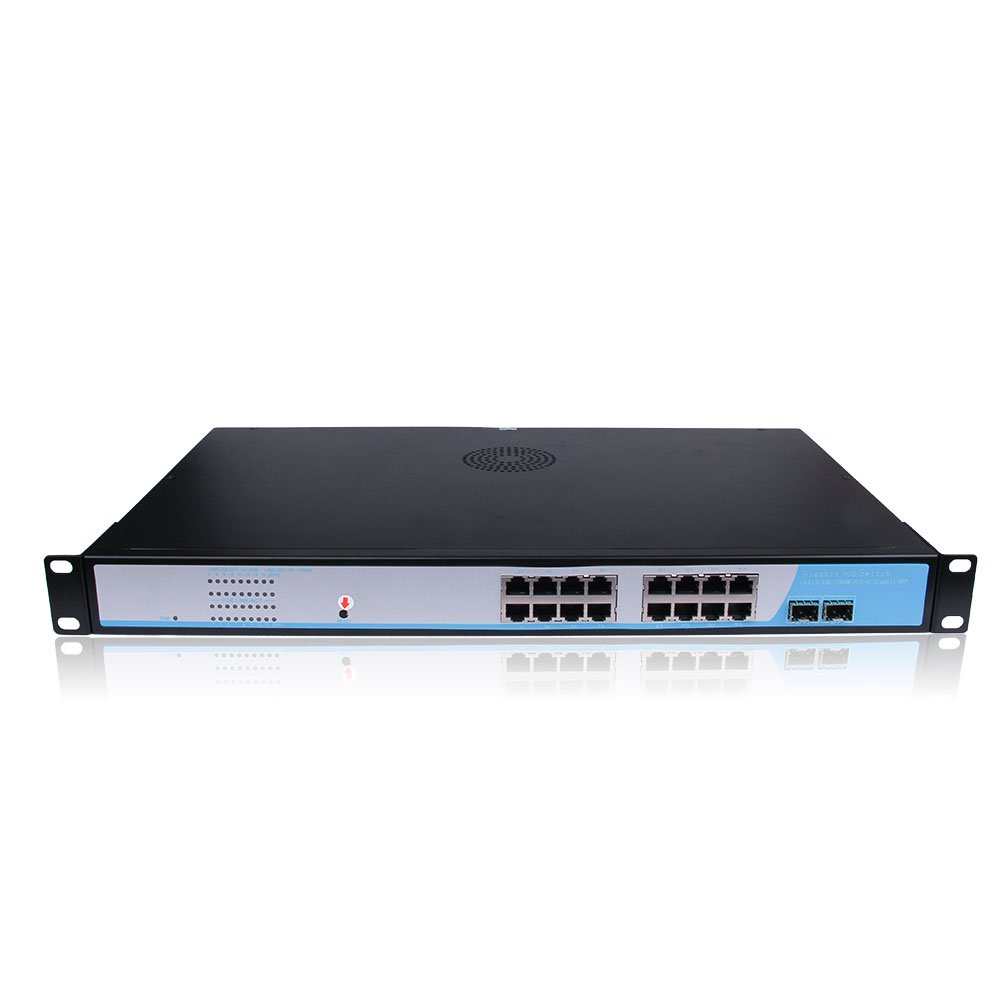

300W 16-Port Gigabit Ethernet PoE Switch 10/100/1000M, with 300W 16-PoE Ports, Support IEEE 802.3af/at
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Hifiber's 16-Port PoE Switch, adapted high-quality high-speed network IC and the most stable PoE chip, PoE port to meet the 802.3af or 802.3at standard. This series of PoE switches can be 10 / 100M Ethernet Network providing seamless connection, and PoE power supply port can automatically detect IEEE802.3af or IEEE802.3at compliant power supply equipment and its power supply, only transmit data for non-PoE equipment.
PoE technology (Power over Ethernet), refers to the power supply technology that some IP-based terminals(such as IP telephones, wireless access AP, network cameras, etc.) provide DC power for the device while transmitting data signals. Those equipments which receive DC power supply called power receiving equipment.

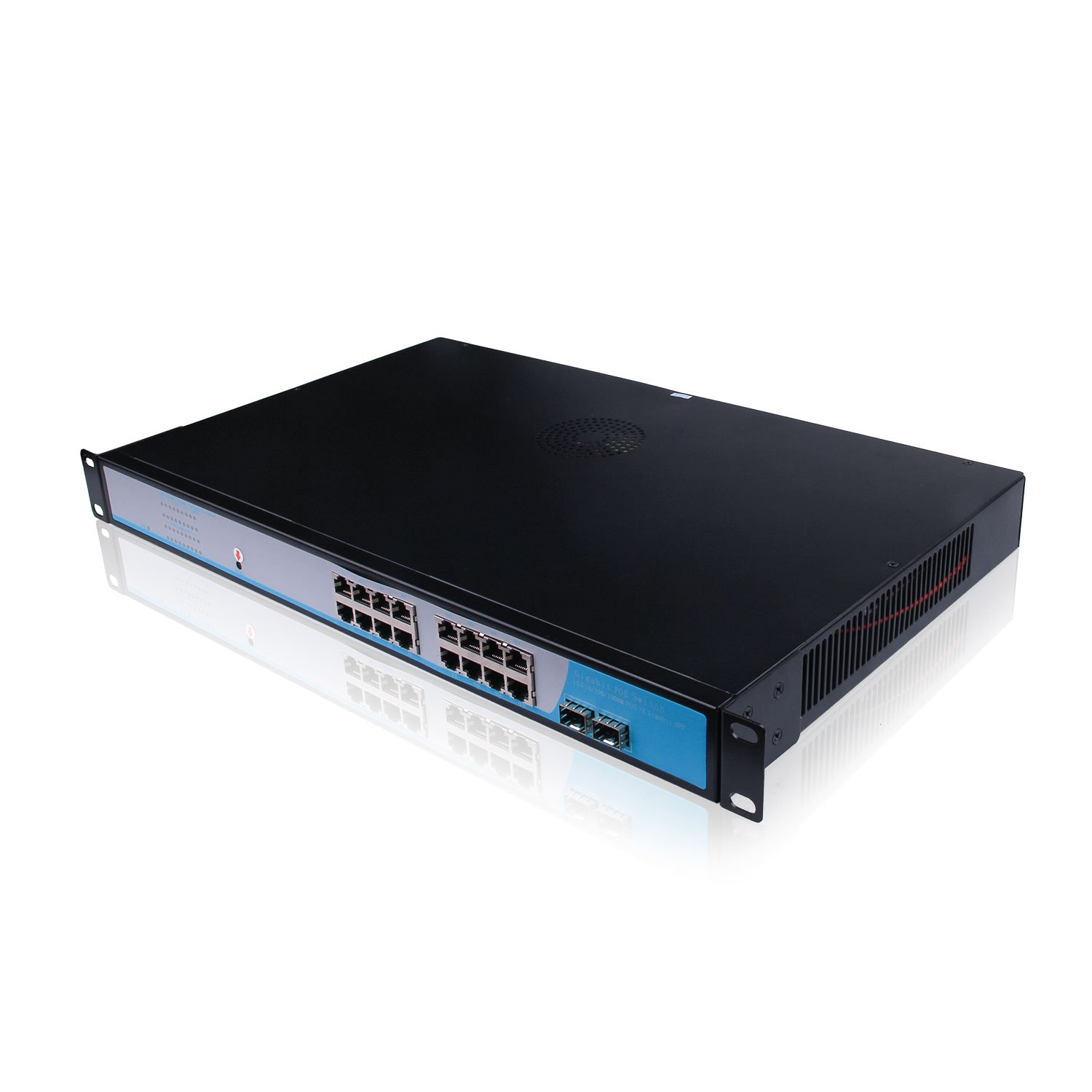

This series of PoE switches, use 16x 10/100/1000M RJ45 PoE Ports+2 Gigabit SFP Uplink ports, the uplink port used to provide network data and network equipment docking.
Highlights
- 300W total power, each PoE port power up to 30W.
- 16x 10/100/1000M RJ45 PoE Ports+2 Gigabit SFP Uplink ports
- RJ45 PoE Auto-negotiation 10/100M Ethernet
- Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
- No Support Network management
Features
- Support power by a Cat.5 Ethernet cable wireless access point(AP) and network surveillance cameras
- 1～16 port support IEEE802.3af standard or IEEE802.3atstandard power(Optional)
- Auto-negotiation 10/100/1000M?
- Complies with IEEE 802.3 10Base-T and IEEE 802.3u100Base-TX standard
- Flow control:IEEE 802.3x flow control for Full-duplex Mode,Backpressure for Half-duplex Mode
- Auto-MDI/MDIX
- Supports uplink port Lightning protection
- Each PoE port power up to 30W(AF/AT)?
- Adopts store and forward switching mechanism
- All ports support wire-speed switching, frame size in the range of64 to 1536 can achieve wire-speed
- Supports MAC address auto-learning and auto-update function
- High performance full load power configuration
Application
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system (ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
Specifications
Technical Parameter List
|
Product Name
|
18-Port Gigabit PoE Switch with16 PoE Ports and 2 SFP Ports
|
|
Model
|
A7S3-35-2GX16GT-SFP
|
|
Connector Type
|
16x 10/100/1000M RJ45 PoE Ports+2 Gigabit SFP Uplink ports
|
|
Network Media
|
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
1000BASE-T: Cat6 or more(≤100 meter)
|
|
Bandwidth
|
52Gbps (non-blocking)
|
|
MTBF
|
190,000 hours (about 21 years)
|
|
Forwarding Mode
|
Store-And-Forward
|
|
Network Protocols
|
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;
IEEE 802.1af DTE Power via MDI; IEEE 802.3af
|
|
LED Display
|
System: power supply; Every Port: connecting, PoE working status
|
|

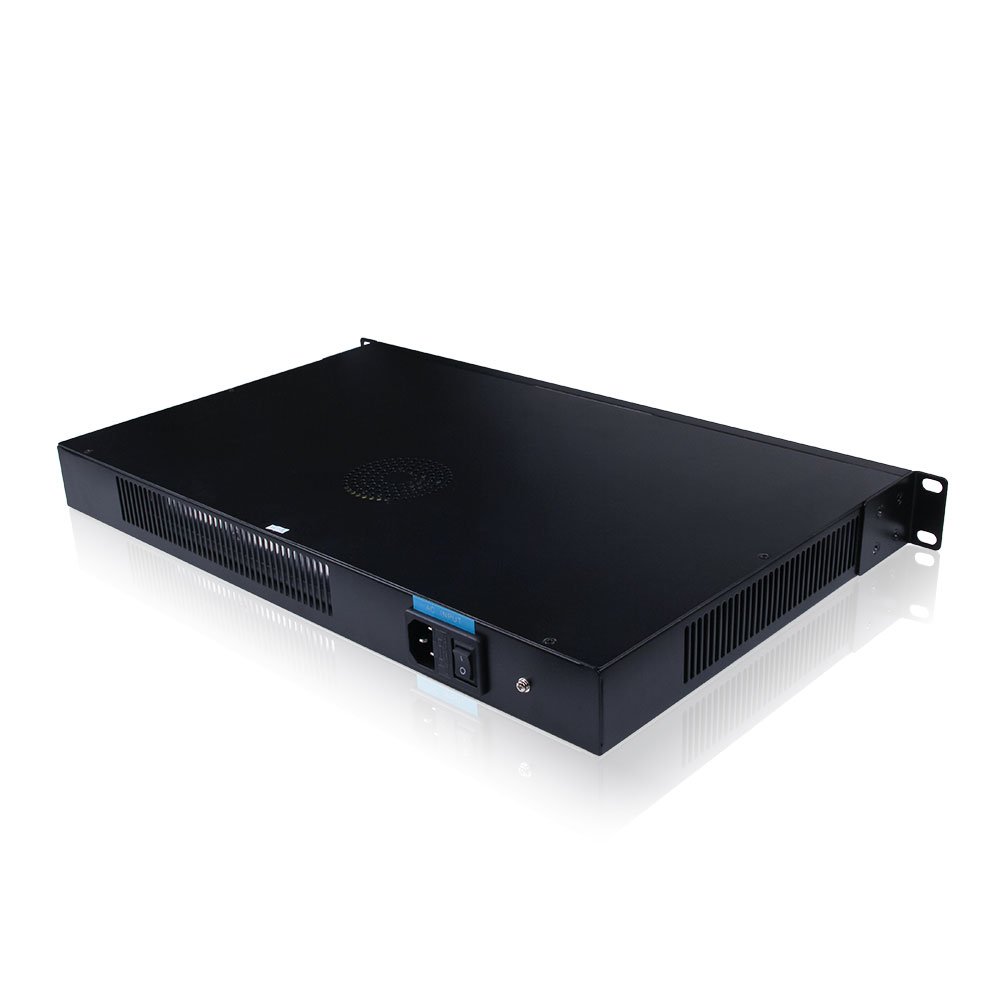

Power Supply
|

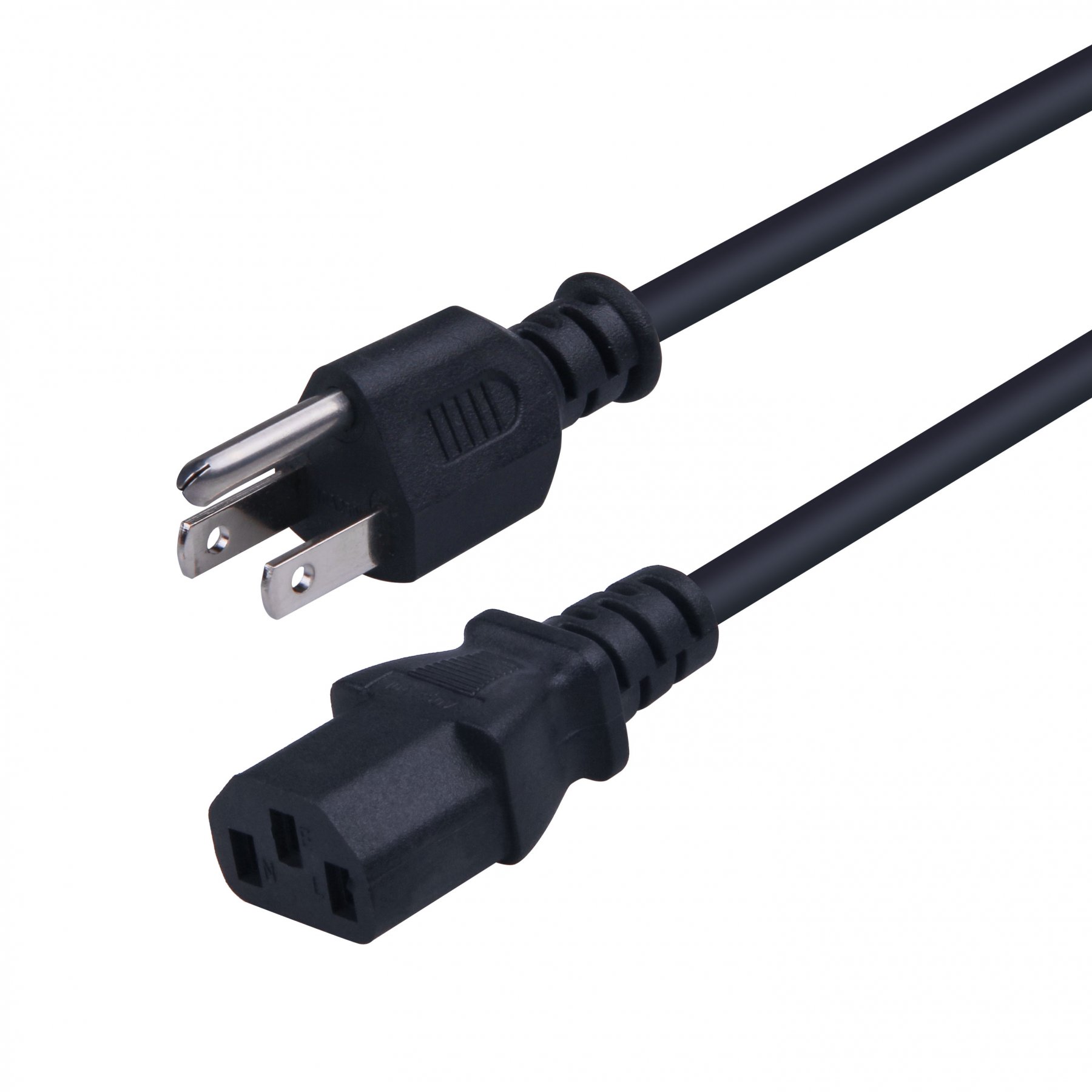

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
|
|
PoE Ports
|
16 ports support POE
|
|
PoE Port Power
|
15.4W for each POE port, 300W for total
|
|
PoE Standard
|
IEEE 802.3af
|
|
PoE Feature
|
All ports support MDI/MDIX
|
|
Working Environment
|
Operating Temperature: -20 ° ~ 55 ° C;; Storage Temperature: -40 ° ~ 85 ° C;
Operating Humidity: 10% ~ 95%, non-condensing
|
|
Certification
|
CE Mark ,commercial; CE/LVD EN60950, RoHS
|
|
Radiation
|
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
|
|
Transmission Distance
|
Ethernet <100m, Optical fiber depend on SFP module
|
|
Power Supply Type
|
End-span type(Mid-span optional)
|
|
Net weight
|
3.46kg
|
|
Gross weight
|
4.5kg
|
|
Net Dimension
|
43cm*21cm*6.6cm
|
|
Package Dimension
|
55cm*35cm*15cm
|
|
Warranty
|
3 year warranty(1 yeas warranty for power adapter)
|
