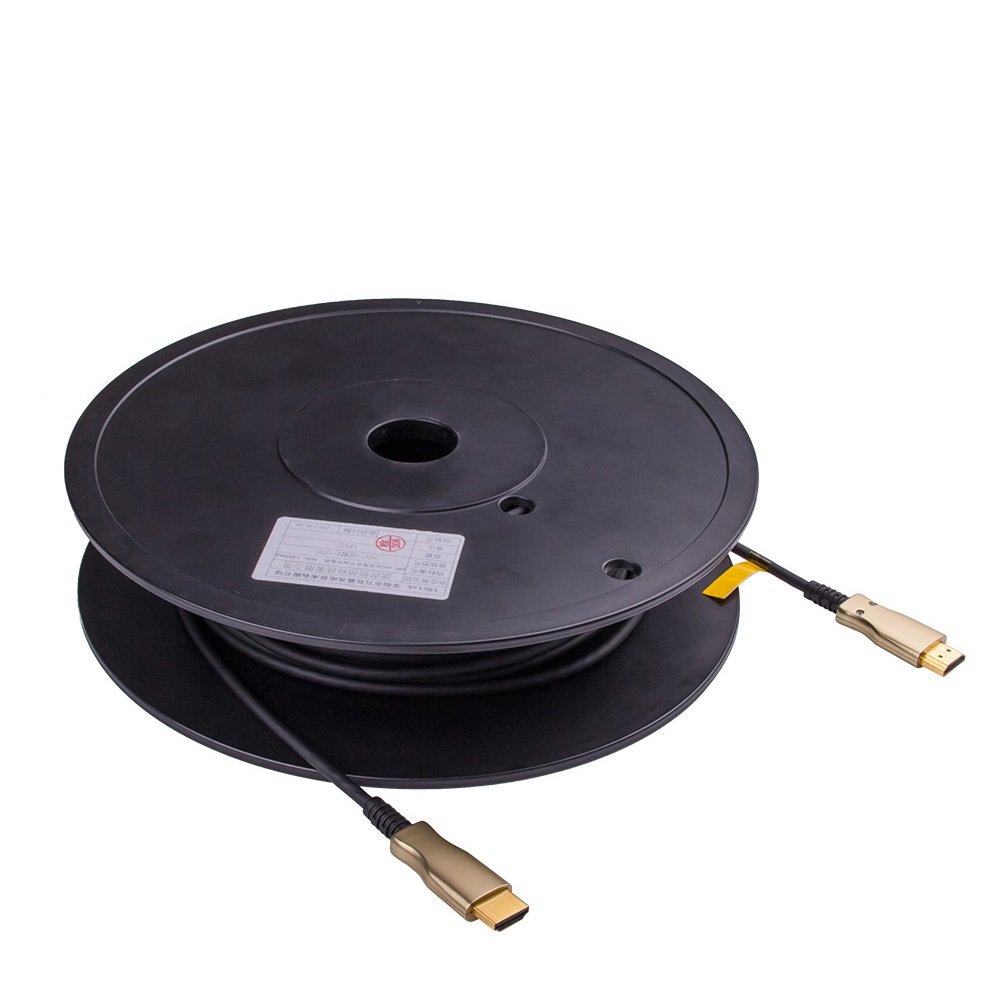

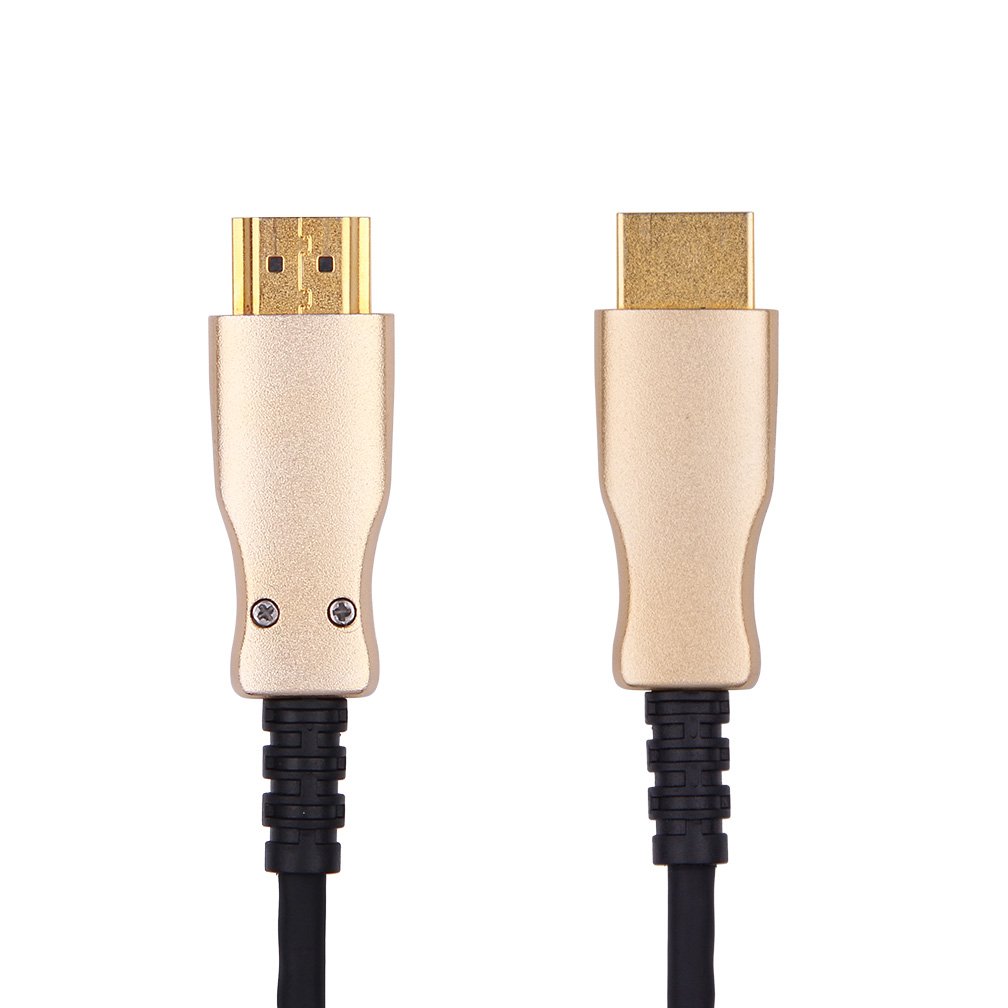

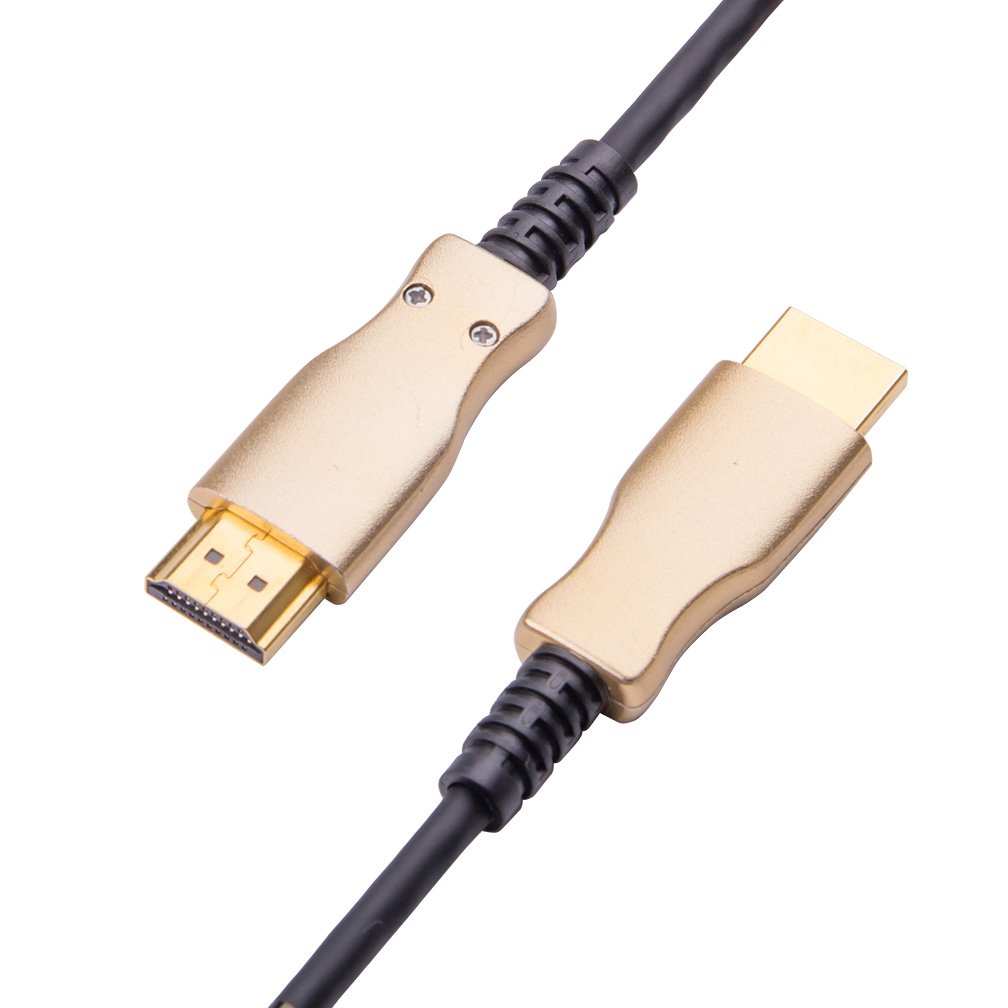

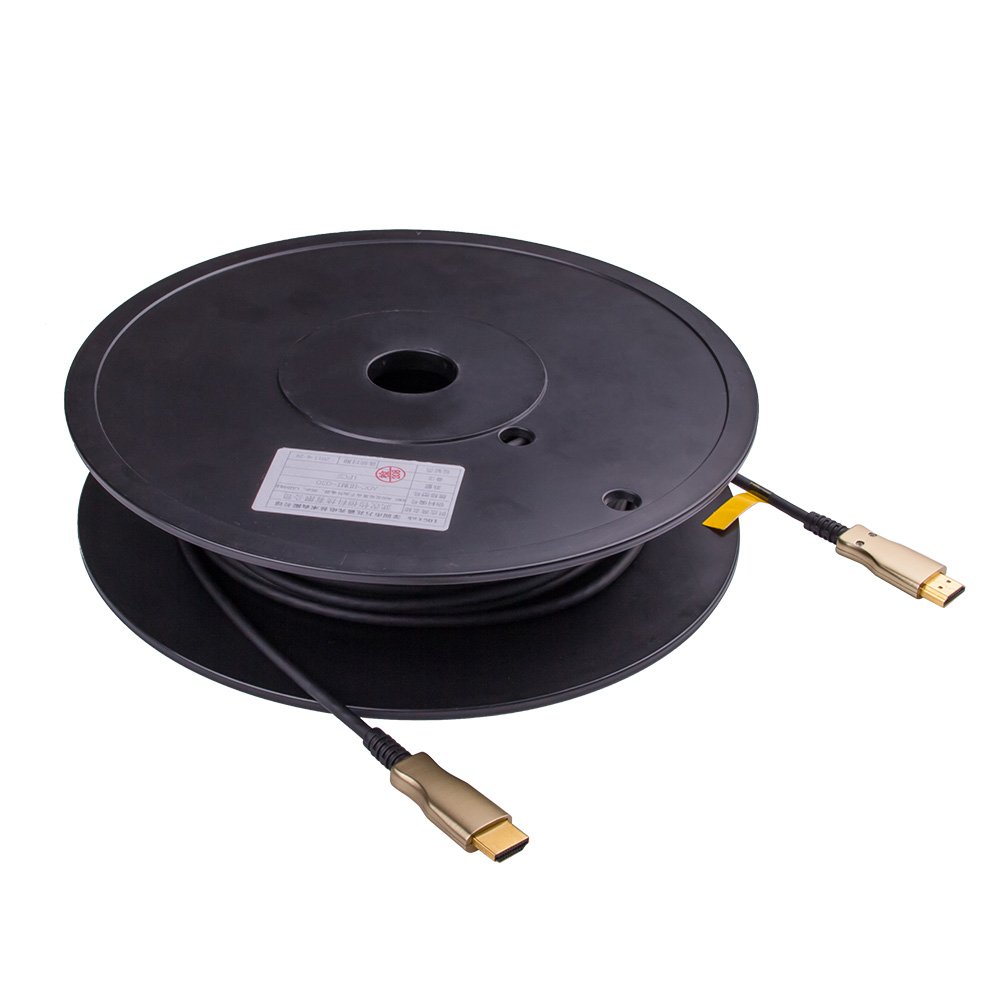

HDMI Hybrid Optical Cable, Support HDMI 2.0/HDCP 2.2, HDMI 4K 60Hz,50m
QSFP+ Extender Solutions
Used for long-distance transmission under 40G QSFP+. The QSFP+ Port could be transferred/converted into 4x SFP+ port by Direct Attach Copper (DAC) technology under very low insert lose.
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Hifiber's HDMI-AOC-50M is widely used in the large international conference center, home theater, gymnasium, commercial cinema, medical equipment, industrial automation, large ornamental Hall, International Exhibition Hall, Outdoor screen advertising, Airport, Railway display screen and so on.
Highlights
Support HDMI 2.0 & HDCP 2.2;
Hybrid Copper Optical Cable, external power supply not needed;
Operates on MMF(OM3), with a low-smoke zero-halogen jacket(LSZH);
Provides image transmission without signal compression;
Space Saving: Cable outer diameter is only 4.2mm.
Features
- Support HDMI 2.0 and HDCP 2.2;
- Support 3D and all 4Kx2Kx60 optical converter;
- Support HDCP1.4/HDCP2.2;
- Support DDC CEC HPD ARC HEC signal transmission;?
- RoHS compliant.
Applications
- Home Theater
- Large International Conference Center
- International Exhibition Hall
- Gymnasium
- Commercial Cinema
- Outdoor Screen Advertising
- Airport
- Railway Display Screen
- Large Ornamental Hall
- Industrial Automation
- Medical Equipment
- more...
Absolute Maximum Ratings
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Note
|
|
Transmission rate
|
|
18
|
48
|
GHz
|
Total bandwidth
|
|
Operating temperature
|
-20
|
25
|
50
|
°C
|
|
|
Power consumption
|
|
0.6
|
1
|
W
|
|
|
Operationg voltage
|
4.5
|
5
|
5.5
|
V
|
|
|
Operating current
|
|
70
|
120
|
mA
|
RX
|
|
|
60
|
100
|
mA
|
TX
|
|
Tensile Strength
|
|
200
|
|
N
|
Short-term 300N
Long-term150N
|
|
Crush Resistance
|
|
100
|
|
N
|
Short-term?500 N/100mm
Long-term?100N/100mm
|
|
Bending radius
|
20
|
40
|
|
mm
|
static?40mm，dynamic?80mm
|
|
Repeated bending
|
|
20000
|
|
times
|
180degree Swing Sheath without cracking
|
Parameters
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Note
|
|
Cable outer diameter
|
3.8
|
4.2
|
4.5
|
mm
|
|
|
Cable length
|
1
|
50
|
|
M
|
|
|
Refresh rate
|
Up to 120 Hz
|
Hz
|
MAX Support 120Hz
1080P & 2160P 4:2:0
|
|
Support resolution
|
Up to 4Kx2K
|
px
|
4Kx2K??4:4:4 ?60Hz
|
|
Support 3D
|
Yes
|
|
|
|
Support HDCP
|
HDCP1.4/HDCP2.2
|
|
|
|
Wavelength
|
850
|
nm
|
|
|
Execution error rate
|
1.00E-12
|
|
|
|
Output power
|
Class 1
|
|
EN 60825-1 2007
EN 60825-2 A2 2010
|
|
Ethernet
|
Yes
|
|
|
|
Audio return
|
Yes
|
|
|
|
CEC
|
Yes
|
|
|
|
Hot pluggable
|
Yes
|
|
|
Specifications
|
Parameter
|
Min
|
Typ
|
MAX
|
Unit
|
Note
|
|
Cable specification
|
Optical fiber
|
4*OM3-850
|
nm
|
Four optical and seven electric hybrid copper-optical cable
|
|
Copper cable
|
AWG20+AWG22+5*AWG28
|
UIT
|
|
Mechanism specification
|
19
|
Pins
|
HDMI A Type Port
|
|
Environmental performance
|
complies with RoHS
|
|
|
Installation
|
NO.
|
NAME
|
MATERIAL
|
QTY
|
REMARK
|
|
①
|
CABLE
|
Hybrid type with OM3 fiber and copper wire OD: 5.2MM
|
1PCS
|
|
|
②
|
CONNECTOR
|
HDMI A MALE, BLACK LCP INSULATION, GOLD FLASH PLATED ON CONTACTS, NICKEL PLATED SHELL+Source PCBA
|
1PCS
|
|
|
③
|
CONNECTOR
|
HDMI A MALE, BLACK LCP INSULATION,GOLD FLASH PLATED ON CONTACTS, NICKEL PLAED SHELL+Display PCBA
|
1PCS
|
|
|
④
|
HDMI SHELL
|
HDMI A MALE Source SHELL
|
1PCS
|
|
|
⑤
|
HDMI SHELL
|
HDMI A MALE Display SHELL
|
1PCS
|
|
|
⑥
|
CAP
|
HDMI A M DUST CAP
|
2PCS
|
|
