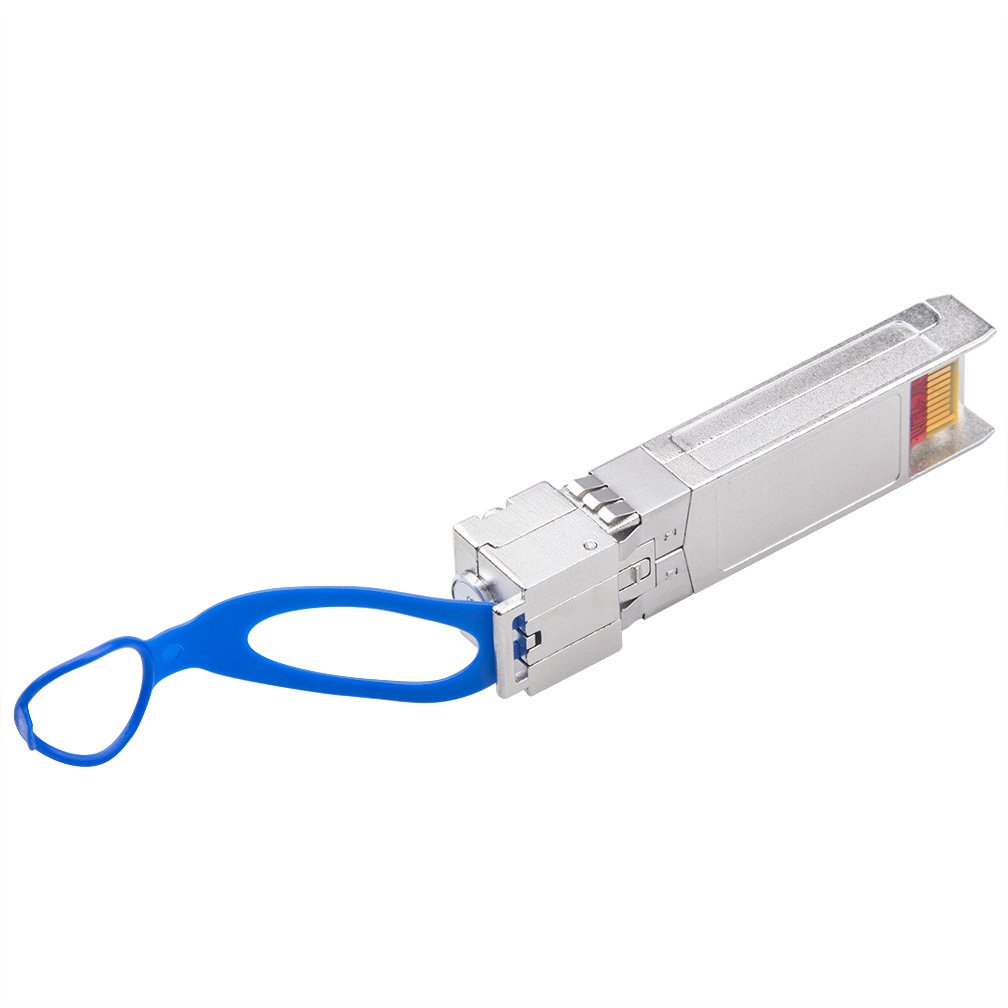

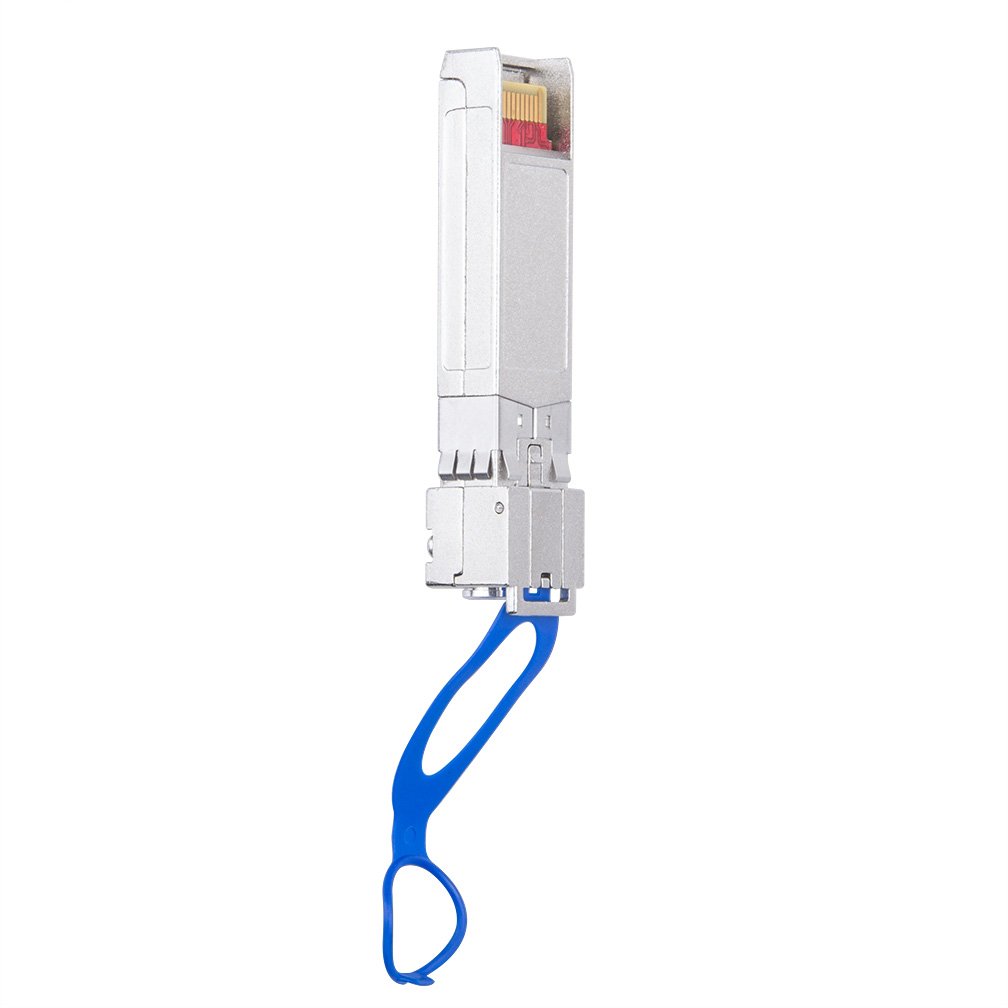

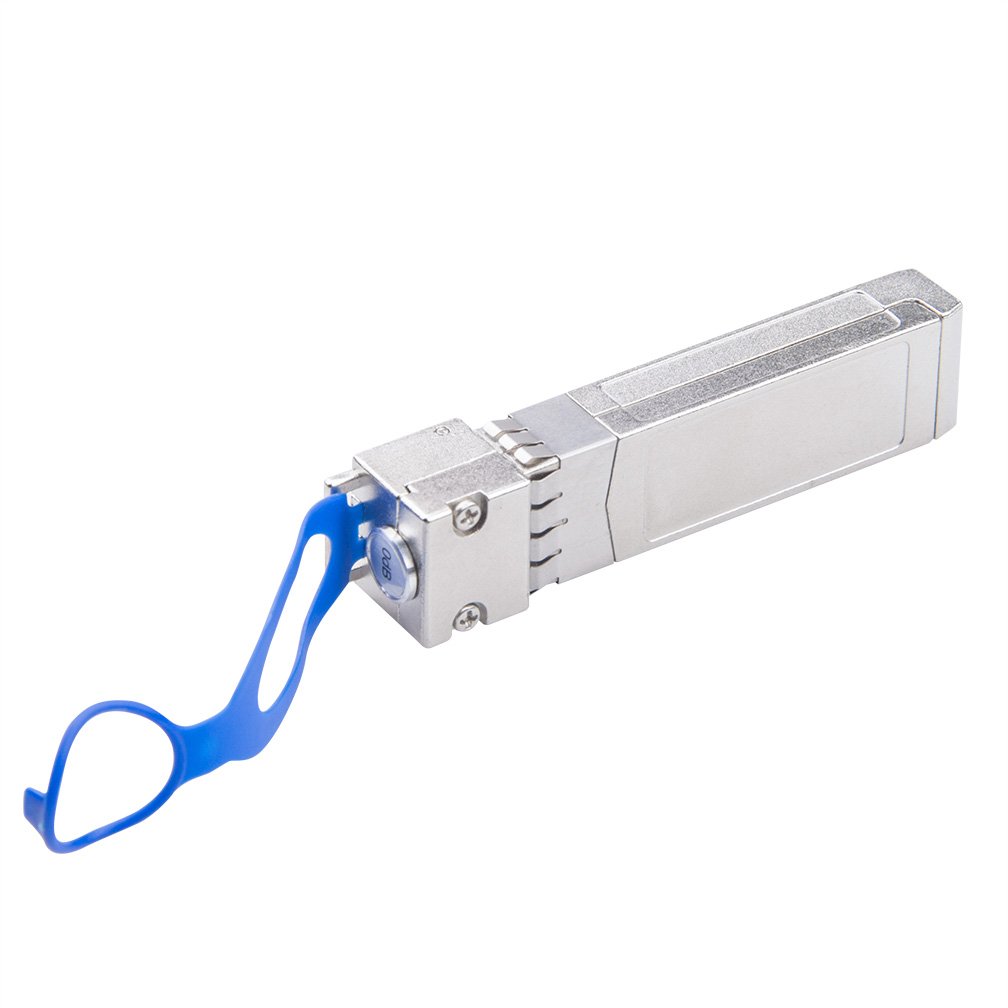

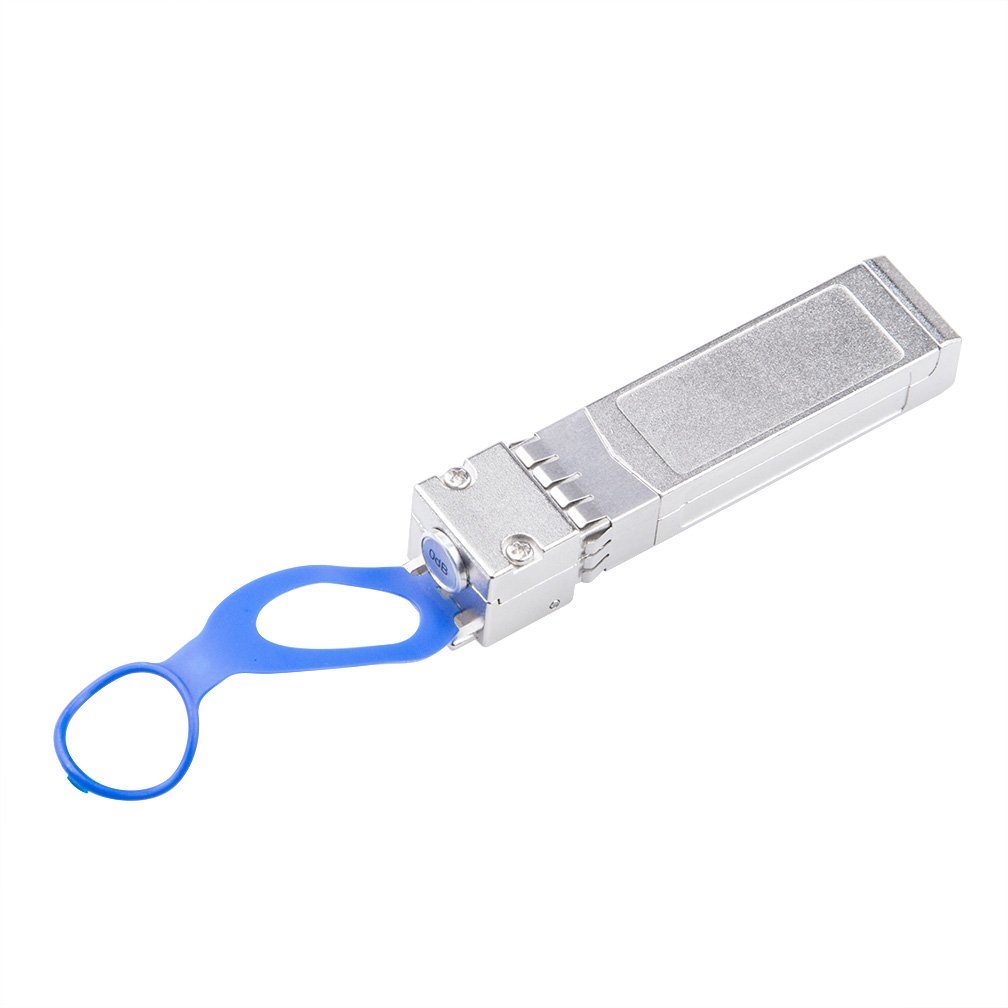

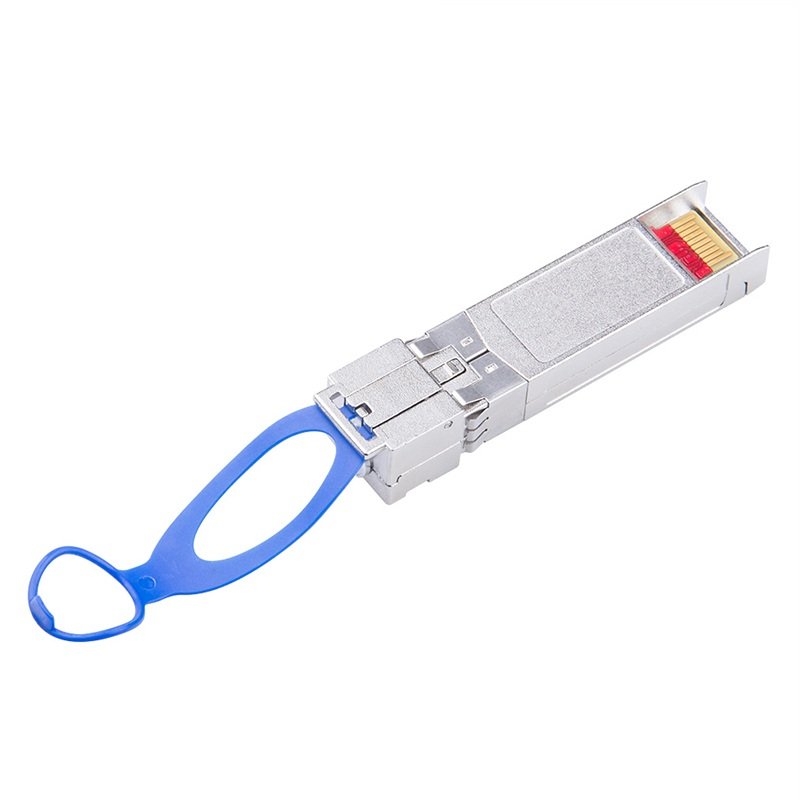

SFP28 Electrical Passive Loopback, 5dB
HiFiber SFP28 passive electrical loopback is used for testing SFP28 transceiver ports in board level test. The electrical loopback provides a cost-effective low loss method for SFP28 port testing.
CAB-ZSP-LB5 is packaged in a standard MSA housing compatible with all SFP28 ports. Transmit data from the host is electrically routed (internal to the loopback module) to the receive data outputs and back to the host. Since the loopback module does not contain laser diodes, photodiodes, laser driver or trans impedance amplifier chips, etc. It provides an economical way to exercise SFP28 ports during R&D validation, production testing, and field testing.
Features
- Compliant with SONET, SDH, GBE, FC
- Customizable power consumption
- Custom memory maps available
- Built in diagnostic functions
- Supports 25Gbps
- Host-pluggable MSA footprint
- Full SFF-8432 MSA compliant
- Temperature range from 0℃ to 80℃
- No reference clock required
- Economical and flexible SFP28 port testing
- Board level system testing
- Power on validation
- Excellent signal integrity
Applications
- SFP port/system testing
- Ethernet IEEE 802.3
- SONET, SDH, GBE, Fiber Channel
