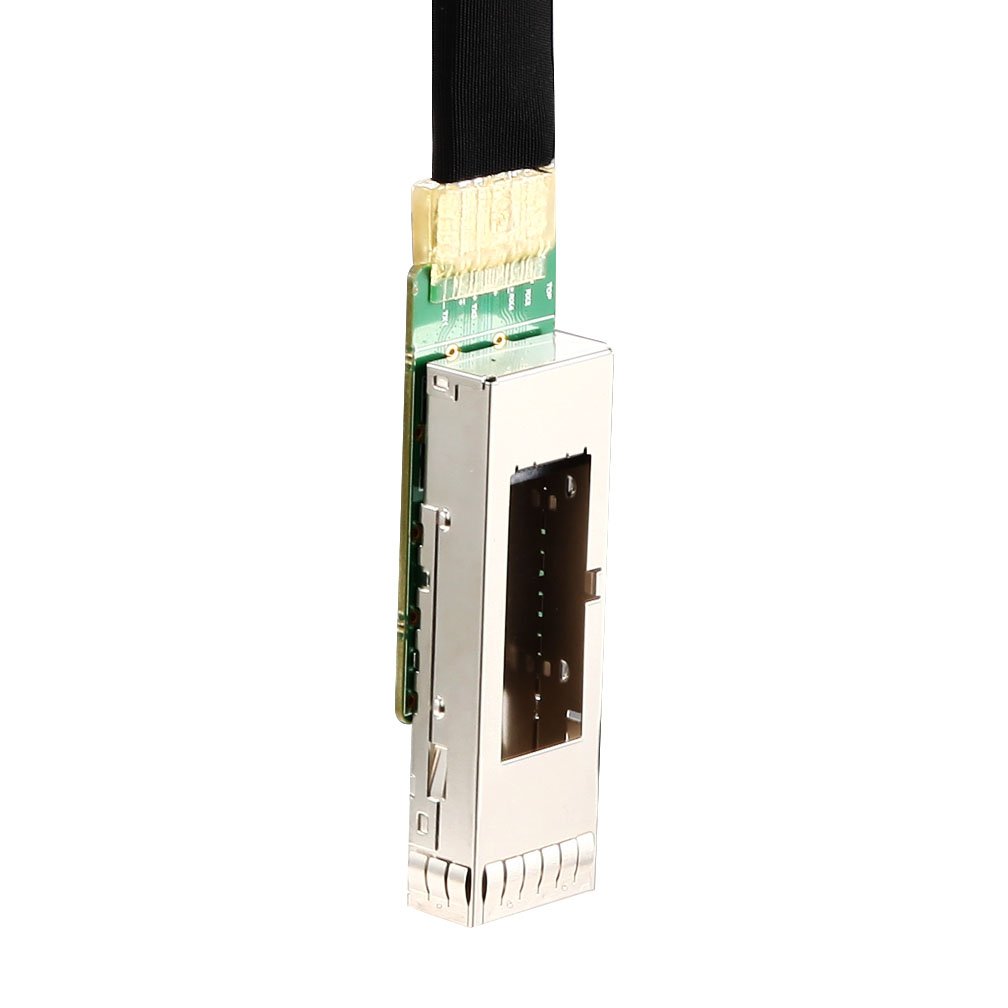

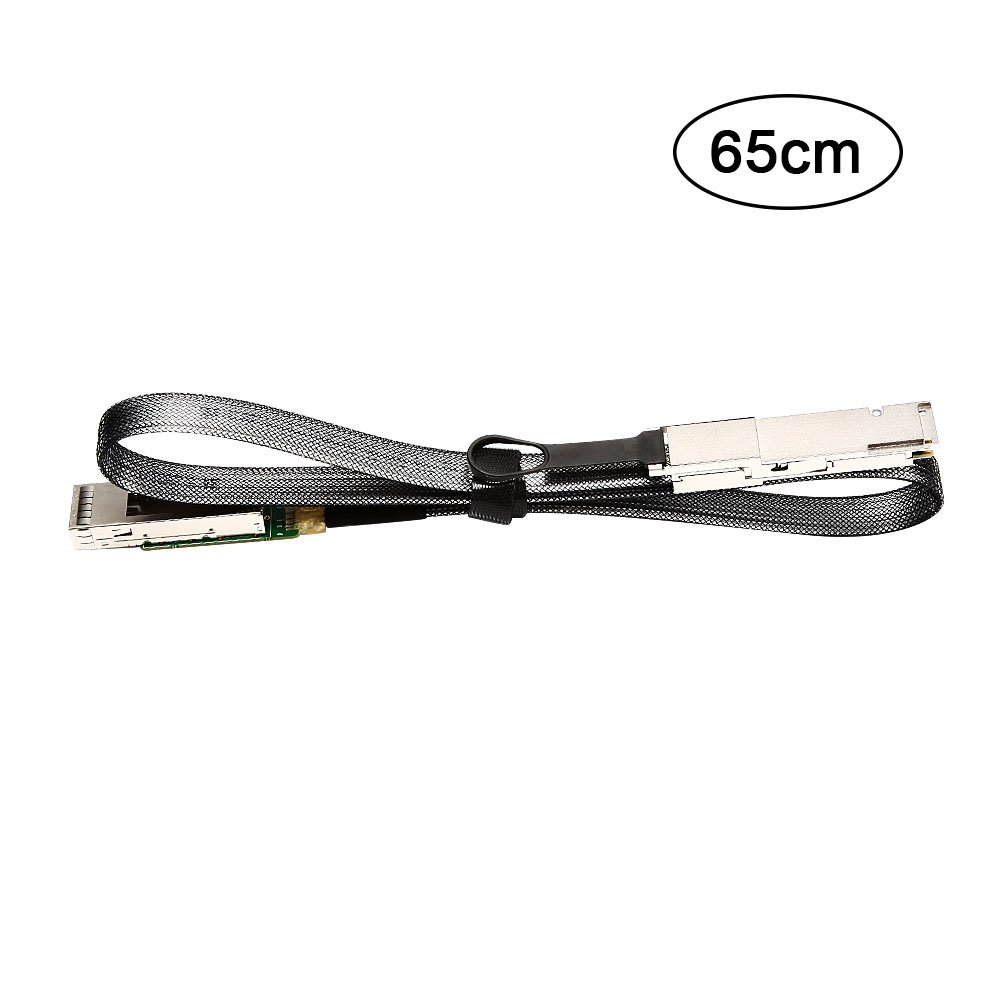

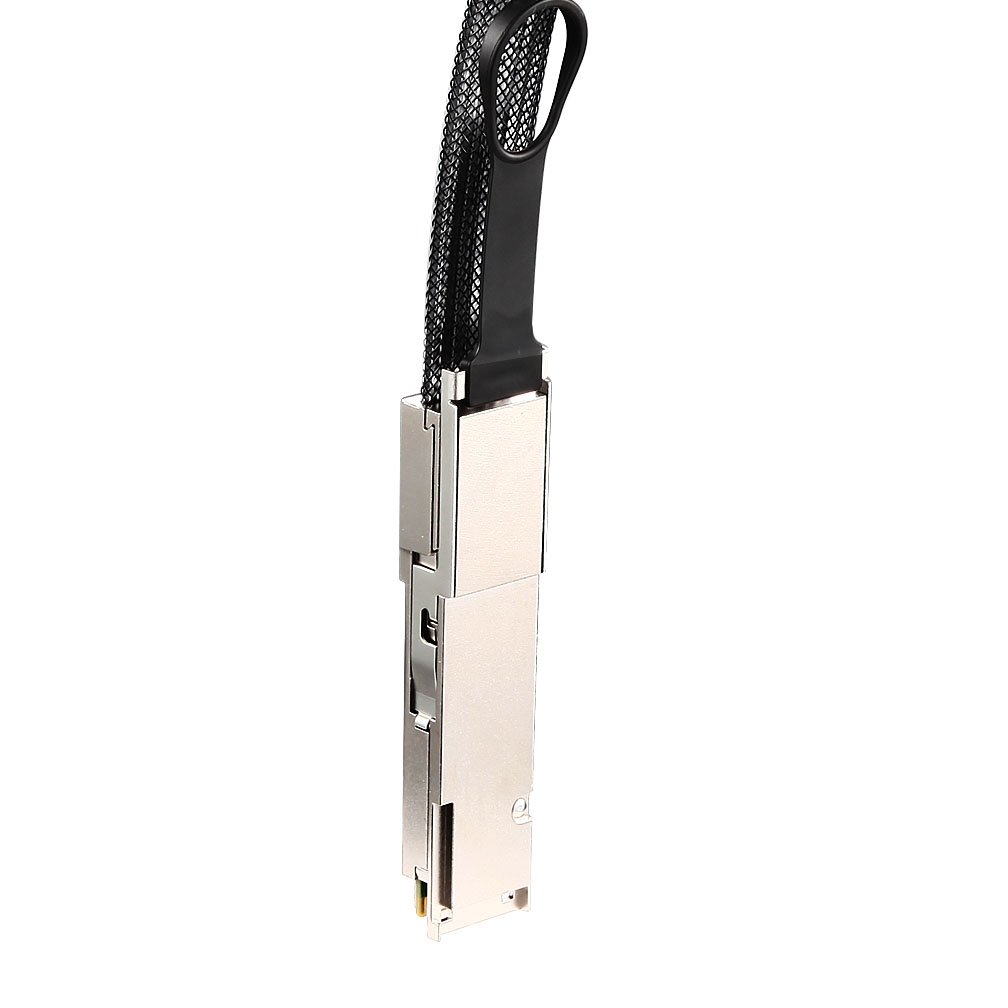

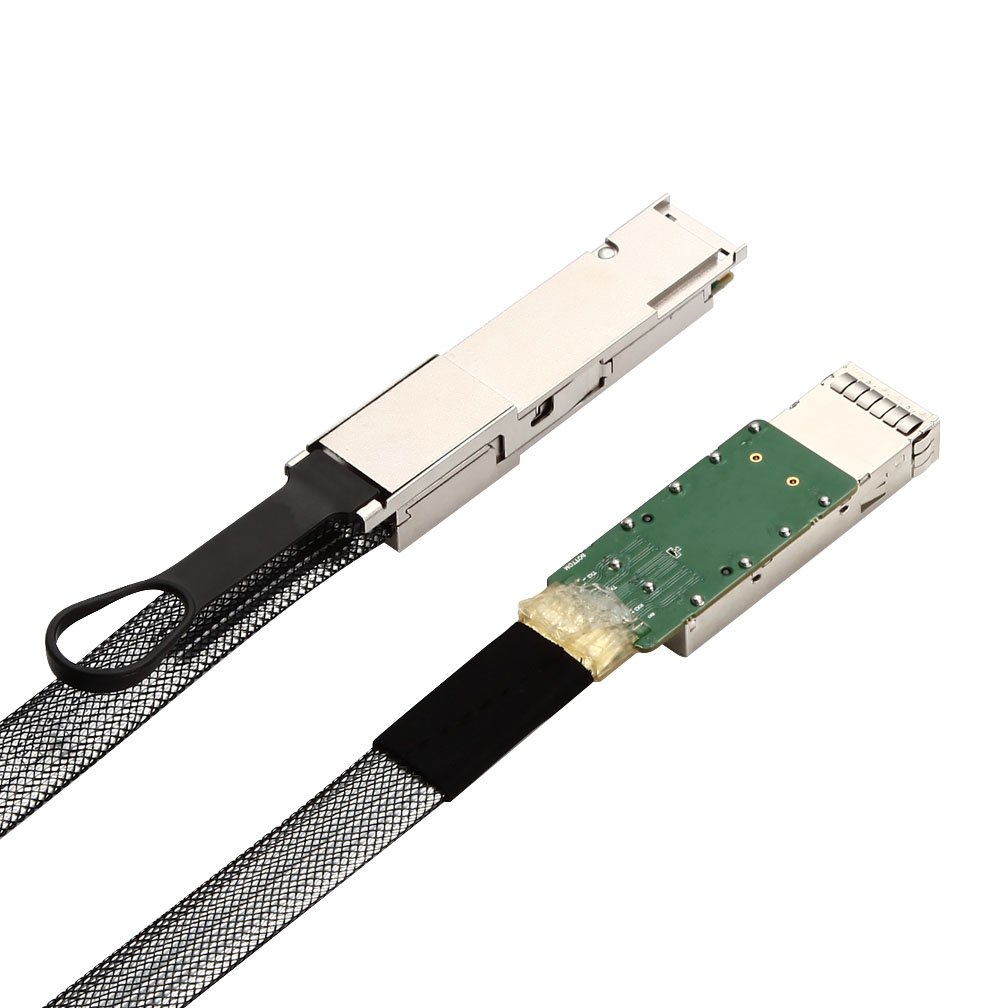

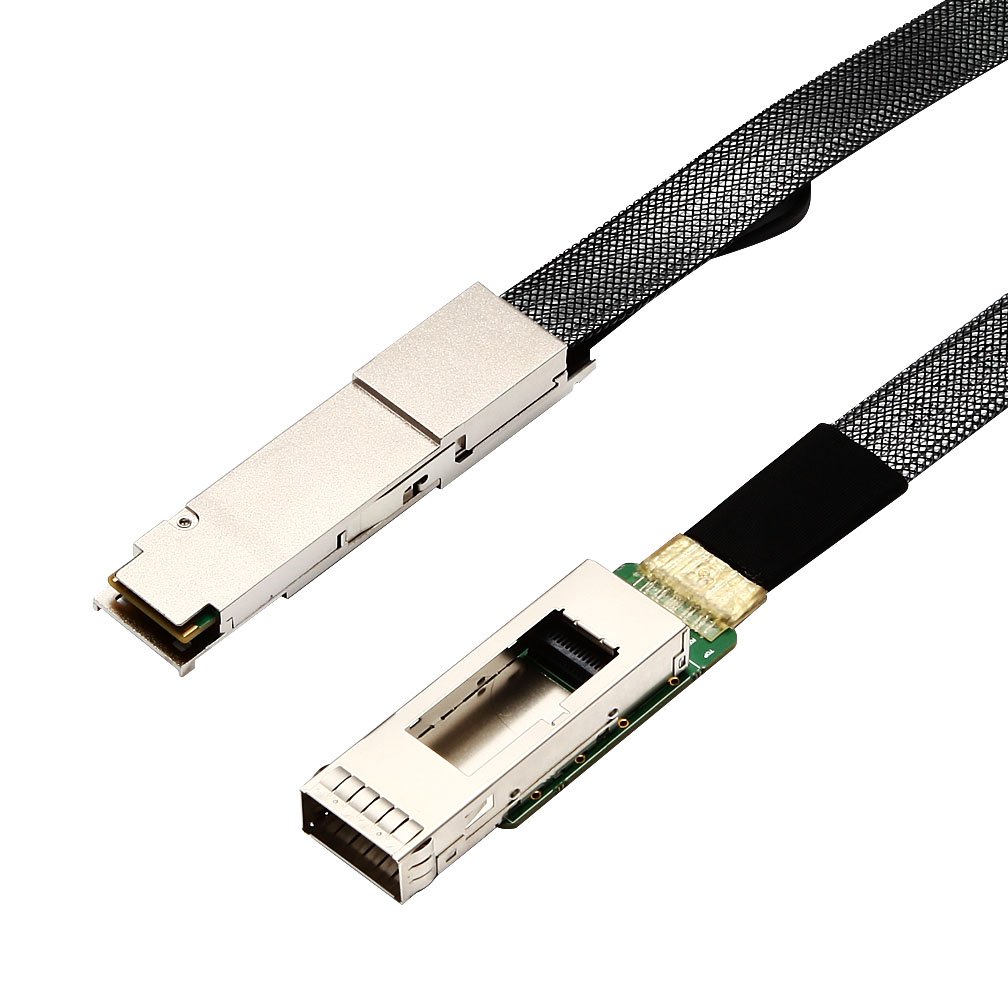

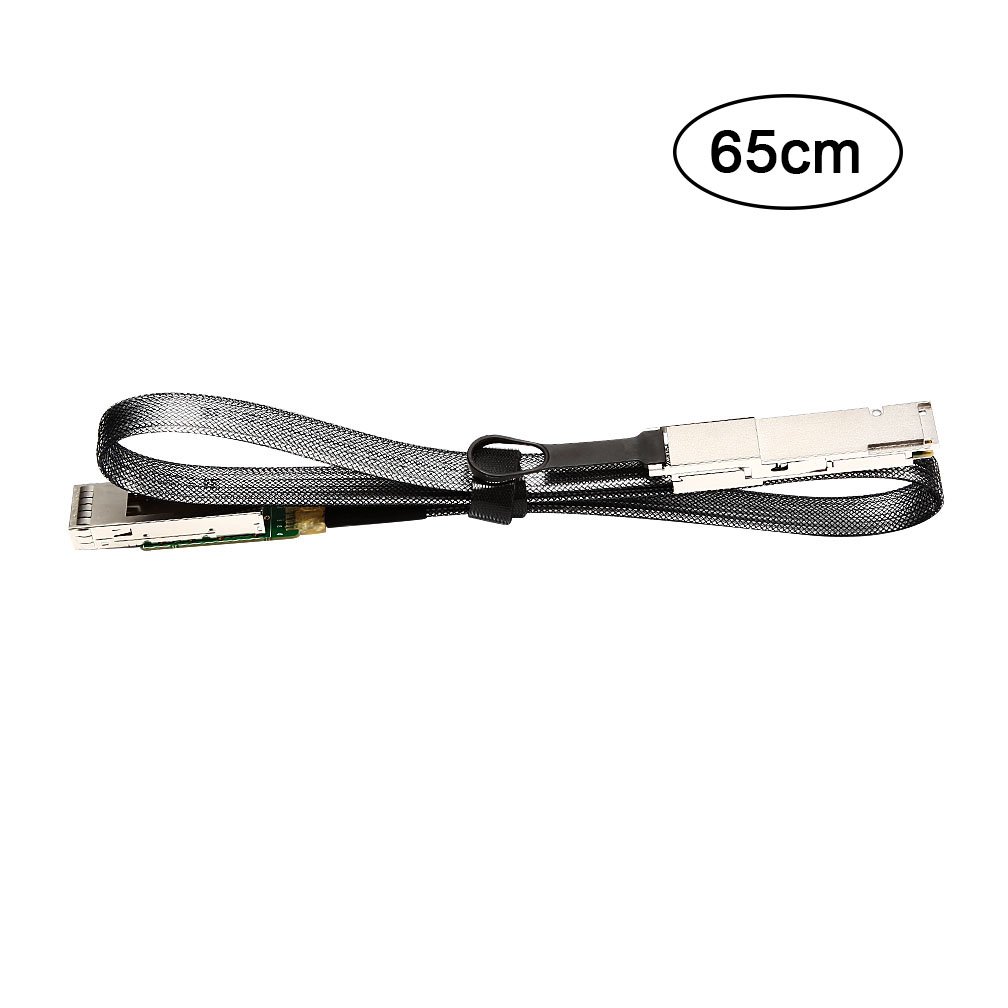

QSFP+ to QSFP+ cage, with EEPROM on the cage side, 30AWG, 65cm length #CVT-Q/Q-Cage-065

QSFP+ to QSFP+ cage, with EEPROM on the cage side, 30AWG, 65cm length #CVT-Q/Q-Cage-065


HF P/N: CVT-Q/Q-Cage-065

Shipping Cost: Free Shipping on orders over USD $300

Availability: in stock


QSFP+ to QSFP+ cage, with EEPROM on the cage side, 30AWG, 65cm length #CVT-Q/Q-Cage-065


HF P/N: CVT-Q/Q-Cage-065

Shipping Cost: Free Shipping on orders overUSD $300

Availability: in stock


QSFP+ to QSFP+ cage, with EEPROM on the cage side, 30AWG, 65cm length

Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More
What is Immersion Cooling Technology? Immersion cooling technology is a new paradigm to solve the challenges being associated with exponential data growth that plagues us today. Immersion technology includes an optimized way of work, highly effective deployment, flexible choice of IT and drastic simplification of data center design. It offers great advantages on all levels of the data center value chain and realize maximum results in Cloud, HPC and Edge. What is 40G Transceiver/AOC Extender for Liquid Immersion System? Concerning the device temperature control, the application of immersed computing design is a trend. However, the performance of fiber lens degrades in liquids, which means that the I/O link can’t support the deployment of transceivers and active optical cables. 10Gtek QSFP Extender, is designed to be applied for immersion solution. It extends the 40G interfaces to surface, aiming to realize the interconnection of 40G transceivers and AOC cables.


  • 40G Transceivers/AOCs Solution for Liquid Immersion Cooling System
  • with 3M flexible cable
  • Insertion Loss 7.5dB on 40Gbps application
  • Oil-resistance, dust-proof and anti-corrosion
  • Customizable EEPROM mapping


  • Compliant QSFP MSA specifications and SFF-8436
  • Low EMI radiation
  • Insertion Loss 7.5dB on 40G Application
  • Oil-resistance, dust-proof and anti-corrosion
  • 100 ohm differential impedance system
  • Low Near-End Crosstalk(NEXT)
  • Customizable EEPROM mapping for cable signature
  • RoHS compliant


  • Extend the 40Gb/s high speed interconnection for liquid immersion solution
  • Extend the link of 40G AOCs
  • Extend the link of 40G transceivers

Performance specifications - electrical

Mechanical Specifications



QSFP+ Cage 65cm
Form Type
LC Duplex
Temp. Range
0 to 70°C (32 to 158°F)
