8 Channels Dual LC CWDM MUX/DEMUX 1470~1610nm, Monitor Port, IL<2.75dB | CWDM-MUX8A= #CWDM-MUX8A=C

8 Channels Dual LC CWDM MUX/DEMUX 1470~1610nm, Monitor Port, IL<2.75dB | CWDM-MUX8A= #CWDM-MUX8A=C



Shipping Cost: Free Shipping on orders over USD $300

Availability: in stock


8 Channels Dual LC CWDM MUX/DEMUX 1470~1610nm, Monitor Port, IL<2.75dB | CWDM-MUX8A= #CWDM-MUX8A=C



Shipping Cost: Free Shipping on orders overUSD $300

Availability: in stock


8 Channels Dual LC CWDM MUX/DEMUX 1470~1610nm, Monitor Port, IL<2.75dB | CWDM-MUX8A=

Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More

The Hifiber ’s WDM series comprises a set of CWDM passive modules mechanically compatible with the Hifiber ’s CWDM chassis (part number CWDM-CHASSIS-2=) and a 1300/1550 nm splitter cable. Compared to the previous 1000BASE-CWDM series of passive filters, this new set of devices sports a greatly reduced insertion loss (up to 50 percent), "power-tap" ports to allow live monitoring and troubleshooting of the CWDM signals, as well as the mixing of 1300-nm CWDM signals on the same fiber infrastructures.

Hifiber ’s CWDM solution applications:The Hifiber ’s CWDM solution based on CWDM gigabit interface converters (GBICs) and Small Form-Factor Pluggables (SFPs) and passive modules allows enterprise companies and service providers to provide scalable and easy-to-deploy Gigabit Ethernet and Fibre Channel services in their networks. The product set helps enable the flexible design of highly available and scalable multiservice networks.
The Hifiber’s CWDM GBIC SFP solution is a convenient and cost-effective solution for the adoption of Gigabit Ethernet and Fibre Channel in campus, data-center, and metropolitan-area access networks.
Because of the flexibility of the passive devices, Hifiber’s CWDM solution helps enable the deployment of a variety of topologies to multiplex up to eight different wavelengths on the same pair of fibers in protected or unprotected configurations. A connection between two endpoints is protected when it is associated with two channels (typically of the same wavelength) traveling on diverse fiber routes (for example, clockwise and counterclockwise in ring configurations or on separate fibers in point-to-point scenarios). Single-wavelength OADMs are equipped with two channels traveling different network paths (east and west) to offer redundancy or protection in rings. On the other hand, because CWDM-MUX8A= and CWDM-OADM4-x= have only a single network port (that is, one fiber path), two CWDM-MUX8A= or two CWDM-MUX4-x= are required to connect to redundant (protected) fiber routes.

ParametersUnitCWDM Module
Wavelength Rangenm1260 ~ 1620
Channel Center Wavelengthnm1270 / 1290 / … / 1610 or 1271 / 1291 / … /1611
Channel Spacingnm20
Channel Passbandnmλc ± 7.5
Channel No.λ2481618
Insertion LossdB≤0.8≤1.5≤2.5≤5.2≤6.4
Adjacent Channel IsolationdB≥ 30
Non-adjacent Channel IsolationdB≥ 40
Wavelength thermal stabilitynm/℃≤ 0.003
Insertion loss thermal stabilitydB/℃≤ 0.005≤ 0.007≤ 0.008
PDLdB≤ 0.1≤0.15≤ 0.15≤ 0.20≤ 0.25
Polarization mode dispersionps≤ 0.1≤ 0.15
DirectivitydB≥ 50
Return lossdB≥ 45
Optical PowermW≤ 500
Operating Temperature-10 ~ +70
Storage Temperature-40 ~ +85
Relative Humidity%5 ~ 95
Dimension ABS Box or LGX Box or 1U(2U) Rackmount
Note: 1. Customization is available.
2. We can make low insertion loss solution as well. For more information, please feel free to contact at sales@sfpcables.com.
3. Specified without connector, and add an additional 0.2dB loss per connector.

Hifiber can provide more options and customized CWDM,DWDM,MUX,DEMUX series products.

If you have any inquiries,pls feel free to contact us at sales@sfpcables.com


CWDM Mux/Demux Without Monitor

Order No


CM1-18A18 Channel CWDM Mux/Demux, 1270~1610nm, IL=4.0dB, LC
CM1-16A16 Channel CWDM Mux/Demux, 1270~1350nm,1410~1610nm, IL=3.5dB, LC
CM1-16x16 Channel CWDM Mux/Demux, Customized, IL=3.5dB, LC
CM1-8A8 Channel CWDM Mux/Demux , 1470~1610nm, IL=2.5dB, LC
CM1-8B8 Channel CWDM Mux/Demux , 1270~1430nm, IL=2.5dB, LC
CM1-8C8 Channel CWDM Mux/Demux , 1270~1350nm,1410~1450nm, IL=2.5dB, LC
CM1-8D8 Channel CWDM Mux/Demux , 1270~1410nm, IL=2.5dB, LC
CM1-8x8 Channel CWDM Mux/Demux , Customized, IL=2.5dB, LC
CM1-4A4 Channel CWDM Mux/Demux , 1470~1530nm, IL=1.5dB, LC
CM1-4B4 Channel CWDM Mux/Demux , 1510~1570nm, IL=1.5dB, LC
CM1-4C4 Channel CWDM Mux/Demux , 1550~1610nm, IL=1.5dB, LC
CM1-4D4 Channel CWDM Mux/Demux , 1270~1330nm, IL=1.5dB, LC
CM1-4E4 Channel CWDM Mux/Demux, 1290~1350nm, IL=1.5dB, LC
CM1-4x4 Channel CWDM Mux/Demux , Customized, IL=1.5dB, LC
CM1-2x2 Channel CWDM Mux/Demux , Customized, IL=1.0dB, LC

CWDM Mux/Demux w/ Monitor

Order No

CM1-18AM18 Channel CWDM Mux/Demux , 1270~1610nm, Monitor Port, IL=4.25dB, LC
CM1-16AM16 Channel CWDM Mux/Demux , 1270~1350nm,1410~1610nm, Monitor Port,  IL=3.75dB, LC
CM1-16xM16 Channel CWDM Mux/Demux, Customized, Monitor Port, IL=3.75dB, LC
CM1-8AM8 Channel CWDM Mux/Demux, 1470~1610nm, Monitor Port, IL=2.75dB, LC
CM1-8BM8 Channel CWDM Mux/Demux , 1270~1430nm, Monitor Port, IL=2.75dB, LC
CM1-8CM8 Channel CWDM Mux/Demux, 1270~1350nm,1410~1450nm, Monitor Port,  IL=2.75dB, LC
CM1-8DM8 Channel CWDM Mux/Demux, 1270~1410nm, Monitor Port, IL=2.75dB, LC
CM1-8xM8 Channel CWDM Mux/Demux, Customized, Monitor Port, IL=2.75dB, LC
CM1-4AM4 Channel CWDM Mux/Demux , 1470~1530nm, Monitor Port, IL=1.75dB, LC
CM1-4BM4 Channel CWDM Mux/Demux, 1510~1570nm,Monitor Port, IL=1.75dB, LC
CM1-4CM4 Channel CWDM Mux/Demux , 1550~1610nm, Monitor Port, IL=1.75dB, LC
CM1-4DM4 Channel CWDM Mux/Demux , 1270~1330nm, Monitor Port, IL=1.75dB, LC
CM1-4EM4 Channel CWDM Mux/Demux , 1290~1350nm, Monitor Port, IL=1.75dB, LC
CM1-4xM4 Channel CWDM Mux/Demux , Customized, Monitor Port, IL=1.75dB, LC
CM1-2xM2 Channel CWDM Mux/Demux , Customized, Monitor Port, IL=1.25dB, LC

CWDM Mux/Demux w/ Monitor, w/ 1310nm/1550nm

Order No

CM1-8AM38 Channel CWDM Mux/Demux, 1470~1610nm, Monitor Port, 1310nm Port, IL=3.0dB, LC
CM1-8BM58 Channel CWDM Mux/Demux, 1270~1430nm, Monitor Port, 1550nm Port, IL=3.0dB, LC
CM1-8CM58 Channel CWDM Mux/Demux, 1270~1350nm,1410~1450nm, Monitor Port, 1550nm Port, IL=3.0dB, LC
CM1-8DM58 Channel CWDM Mux/Demux, 1270~1410nm, Monitor Port, 1550nm Port,  IL=3.0dB, LC
CM1-4AM34 Channel CWDM Mux/Demux, 1470~1530nm, Monitor Port, 1310nm Port, IL=2.0dB, LC
CM1-4BM34 Channel CWDM Mux/Demux , 1510~1570nm, Monitor Port, 1310nm Port, IL=2.0dB, LC
CM1-4CM34 Channel CWDM Mux/Demux, 1550~1610nm, Monitor Port, 1310nm Port, IL=2.0dB, LC
CM1-4DM5 4 Channel CWDM Mux/Demux, 1270~1330nm, Monitor Port, 1550nm Port, IL=2.0dB, LC
CM1-4EM54 Channel CWDM Mux/Demux, 1290~1350nm, Monitor Port, 1550nm Port, IL=2.0dB, LC

Figures 1 through 10 illustrate the numerous protected and unprotected deployment scenarios of the Cisco CWDM solution with the Cisco WDM series of passive devices. The following conventions are adopted in the figures:

• Colored circles represent transceivers (GBIC or SFP) at the corresponding color-coded wavelength connected to the filter equipment port.

• N indicates the network port on the CWDM-MUX8A= and CWDM-OADM4-x=.

• P indicates the pass port on the part number CWDM-OADM4-x=.

• E and W indicate the network east and network west ports on the WDM-OADM1-xxxx=.

Figure 1. Point-to-Point Configurations with 4- Channel and 8-Channel Passive Devices

Figure 2. Point-to-Point Configuration with 4-Channel OADMs and Regeneration

Figure 3. Unprotected Bus Configurations with 4-Channel and 1-Channel OADMs With and Without Regeneration

Figure 4. Protected Hub-and-Spoke Configuration with 8-Channel Multiplexer/Demultiplexer and 4-Channel OADMs

Figure 5. Protected Hub-and-Spoke Configuration with 8-Channel Multiplexer/Demultiplexer and 4-Channel and 1-Channel OADMs

Figure 6. Protected Meshed-Ring Configuration with 4- Channel and 1-Channel OADMs

Figure 7. Protected Meshed-Ring Configuration with 8-Channel Multiplexer/Demultiplexer and 1-Channel OADMs

Figure 8. Mixing 1300-nm and CWDM in Point-to-Point Configuration with 1300-nm OADM Transparency

Figure 9. Mixing 1300-nm and CWDM in Point-to-Point Configuration with WDM Splitter Cable

Figure 10. Mixing 1300-nm and CWDM in Protected Rings with WDM Splitter Cable

Figure 11. WDM Splitter Cable for Non-CWDM Applications

Features and Benefits:The Hifiber ’s WDM series of CWDM devices offer numerous improvements over the previous generation of devices:
1. Lowest optical insertion loss (refer to Table 2 for details)-Compared to the previous generation of CWDM filters, the insertion loss is reduced up to 50 percent, depending on the model. This translates into much longer distances in both point-to-point and ring configurations.
2. Addition of "monitor" ports on every network port of multiplexers and OADMs as well as on the pass port on OADM4-x to simplify turn-up operations of CWDM networks-The monitor ports also can be used for in-service monitoring of the CWDM signals by means of an optical spectrum analyzer or a power meter.
3. Addition of two 4-channel OADM types for added flexibility: part number CWDM-OADM4-1 to cover the 1470, 1490, 1510, and 1530 channels and part number CWDM-OADM4-2 to cover the 1550, 1570, 1590, and 1610 channels.4. LC/UPC connectors
5. 1300-nm transparency-OADMs are now transparent to "traditional" 1300-nm channels. In other words, the 1300-nm signals can pass through the OADMs with a well-controlled loss. This feature helps enable configurations where CWDM can share the same fiber with traditional SONET/SDH services running on the 1300-nm wavelength.
6. Addition of a WDM splitter (or Y-cable) to multiplexer and demultiplexer channels in the 1300- and 1550-nm ranges-The WDM splitter cable can be used with CWDM optics or with standard 1550 optics. This Y-cable is another tool to integrate on the same fiber infrastructure CWDM with traditional SONET/SDH services running on the 1300-nm wavelength.

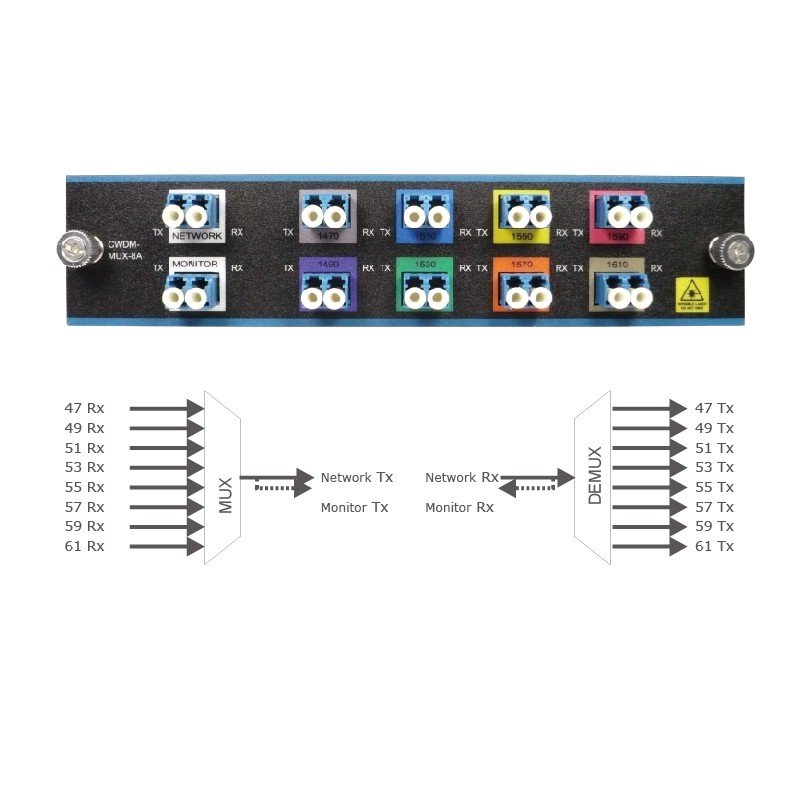

Figure 12 Front-Panel Port Configurations of the CWDM-MUX8A, CWDM-OADM4-x, and CWDM-OADM1-xxxx)

Figure 13. WDM Splitter Cable



Form Type
LC Duplex
Temp. Range
0 to 70°C (32 to 158°F)
