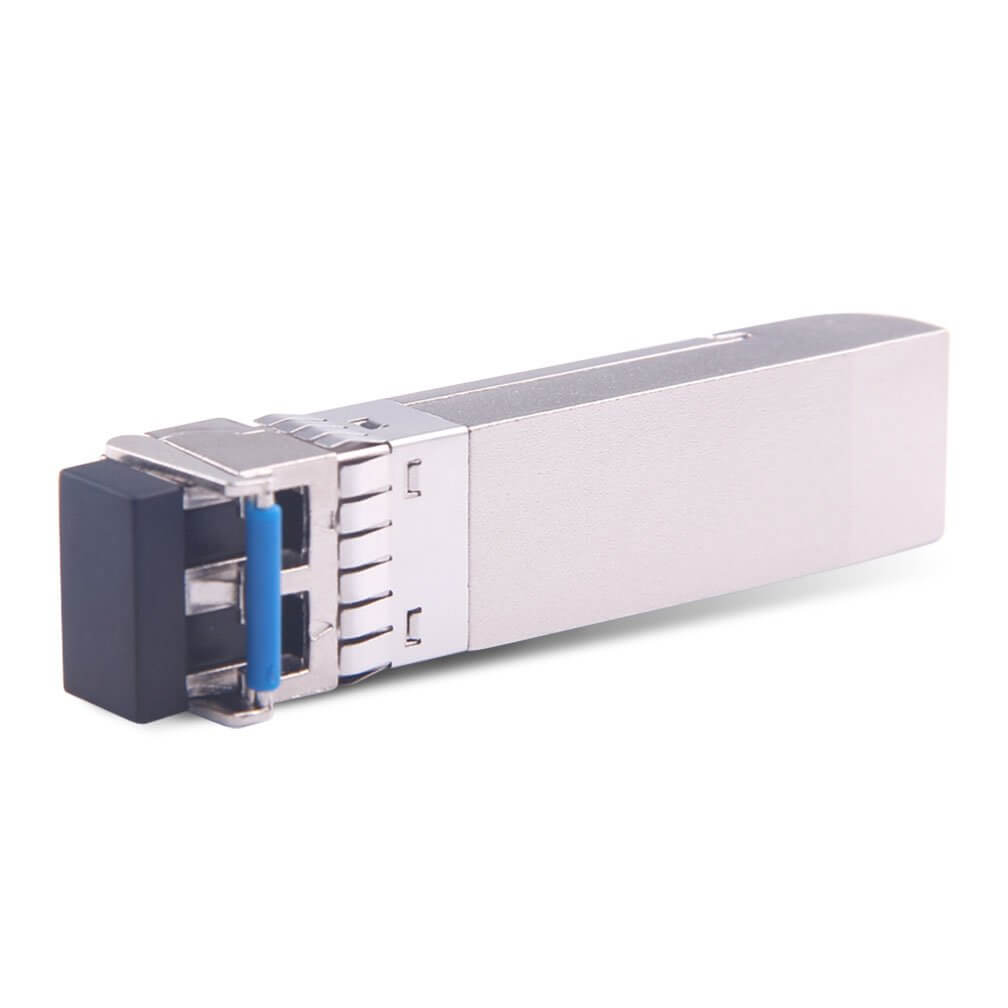

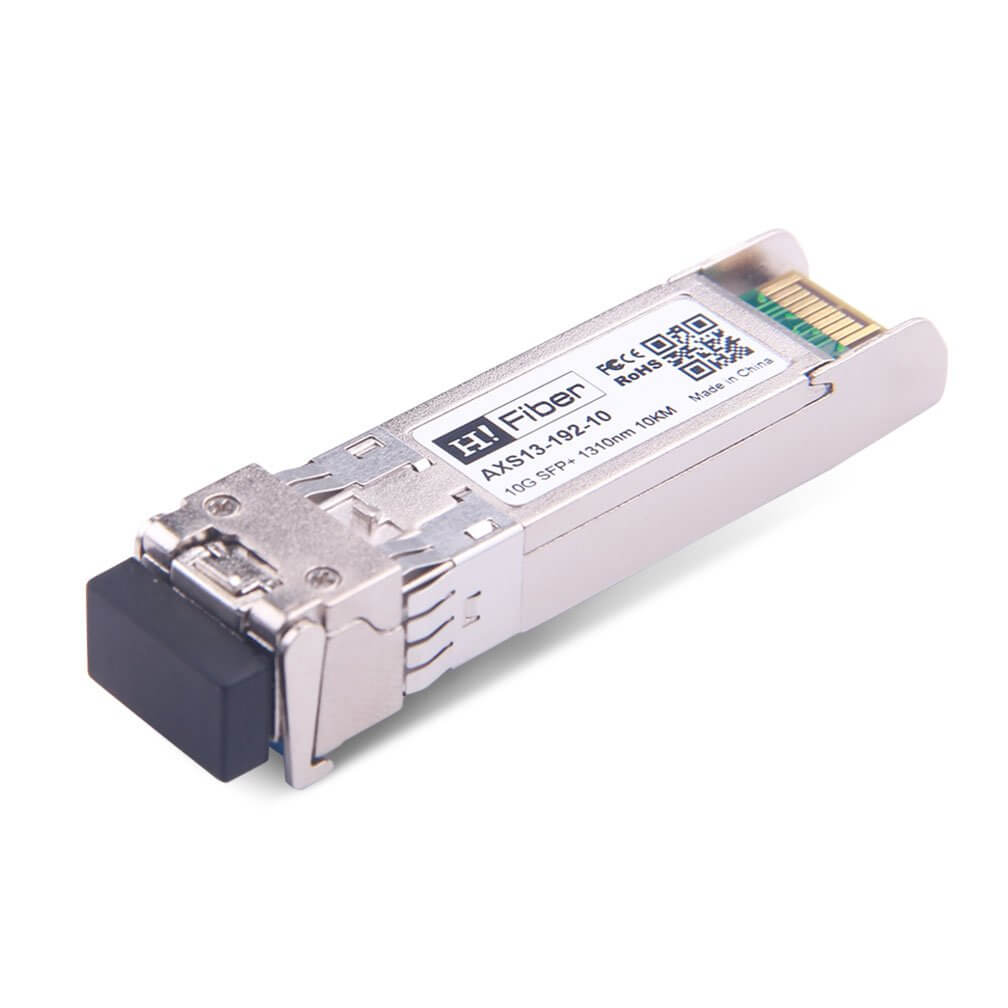

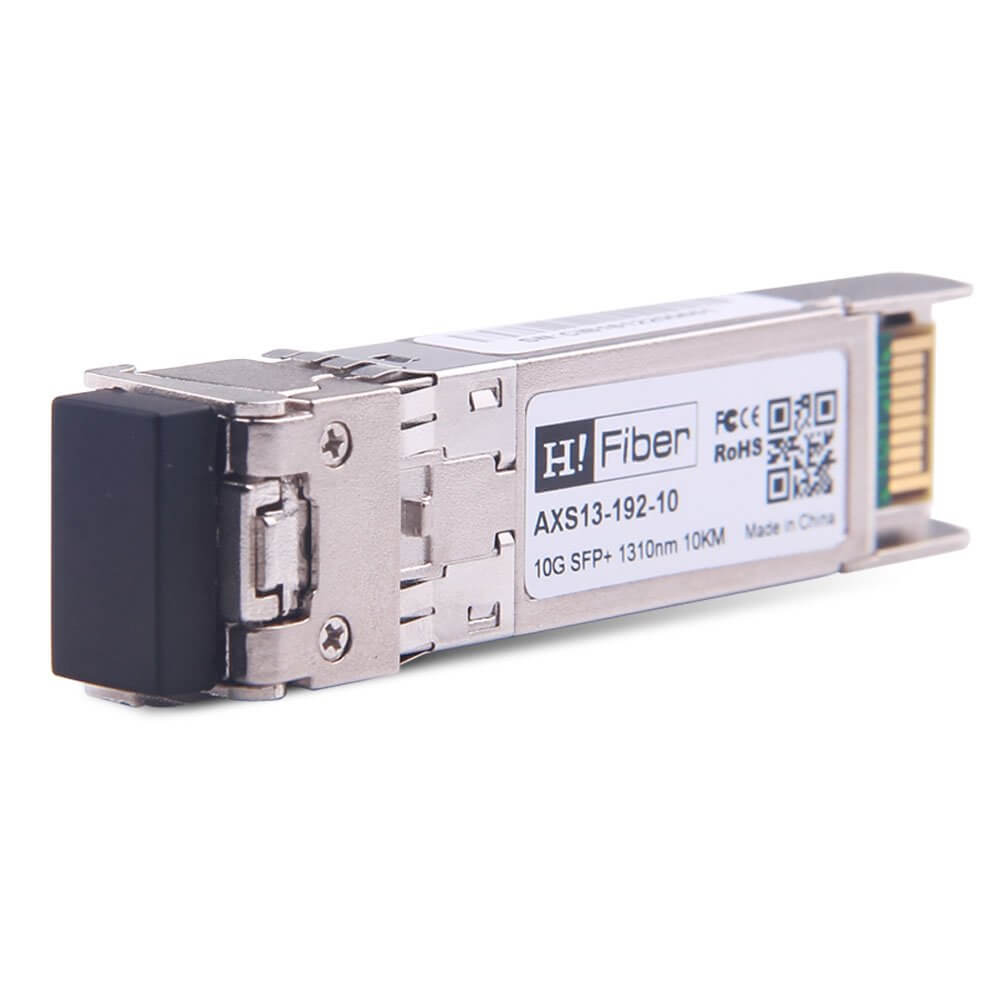

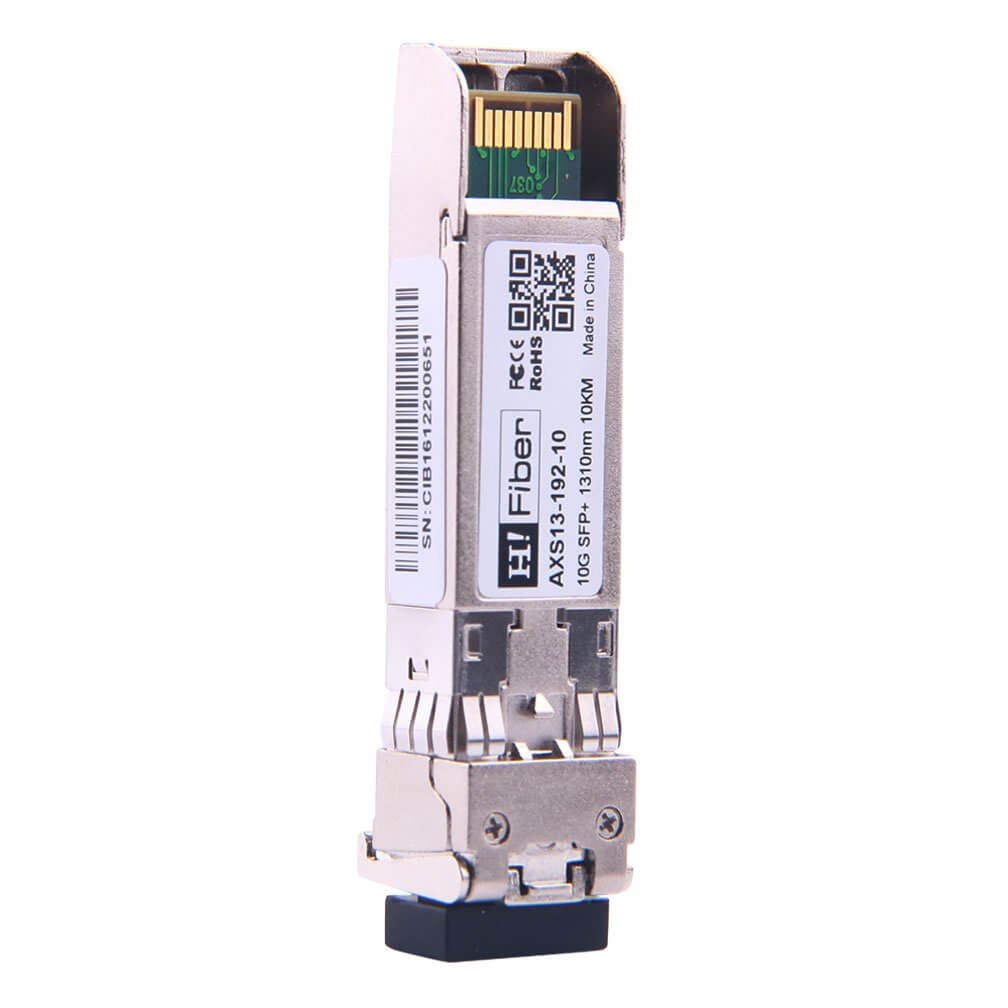

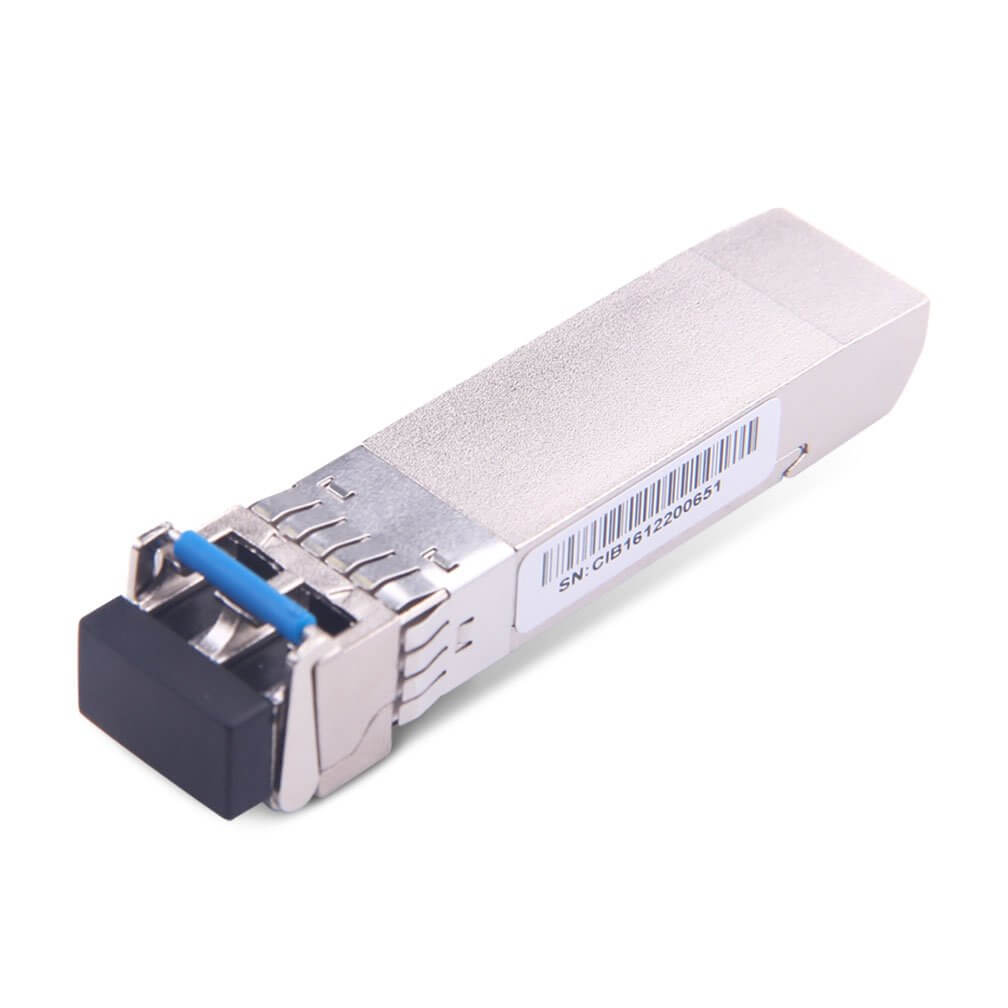

D-Link DEM-432XT-DD Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Transceiver Module for SMF #DEM-432XT-DD

D-Link DEM-432XT-DD Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Transceiver Module for SMF #DEM-432XT-DD

$23.00

HF P/N: AXS13-192-10

MFG P/N: DEM-432XT-DD

Shipping Cost: Free Shipping on orders over USD $300

Availability: in stock

loading...

D-Link DEM-432XT-DD Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Transceiver Module for SMF #DEM-432XT-DD

$23.00

HF P/N: AXS13-192-10

MFG P/N: DEM-432XT-DD

Shipping Cost: Free Shipping on orders overUSD $300

Availability: in stock

Description

D-Link DEM-432XT-DD Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Transceiver Module for SMF

QSFP+ Extender Solutions
Used for long-distance transmission under 40G QSFP+. The QSFP+ Port could be transferred/converted into 4x SFP+ port by Direct Attach Copper (DAC) technology under very low insert lose.
Learn More
Learn More
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More
HiFiber's D-Link DEM-432XT-DD Compatible 10GBASE-LR SMF Single-Mode 1310nm 10km transceiver is small form factor pluggable module for serial optical data communications such as IEEE 802.3ae 10GBASE-LR/LW. It is with the SFP+ 20-pin connector to allow hot plug capability.This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm. The transmitter section uses a 1310nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated In GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Features

  • Operating data rate up to 10.3Gbps
  • 1310nm DFB Transmitter
  • Distance up to 10km
  • Single 3. 3V Power supply and TTL Logic Interface
  • Duplex LC Connector Interface,Hot Pluggable
  • Compliant with MSA SFP+ Specification SFF-8431
  • Compliant with 10GFC 1200-SM-LL-L FC standard
  • Compliant with 8.5G FC-PI-4 800-SM-LC-L FC standard
  • Compliant with 4.25G FC-PI-4 400-SM-LC-L FC standard
  • Compliant with 2.125G FC-PI-4 200-SM-LC-L FC standard
  • Compliant with 1.0625G FC-PI-4 100-SM-LC-L FC standard
  • Compliant with IEEE 802.3ae 10GBASE-LR/LW
  • Operating Case Temperature Standard:0°C~+70°C

Applications

  • 10GBASE-LR at 9.953Gbps
  • 10GBASE-LW at 10.3125Gbps
  • 1000Base-LX Ethernet
  • 8x FC at 8.5Gbps
  • 4x FC at 4.25Gpbs
  • 2x FC at 2.125Gpbs
  • 1x FC at 1.0625Gbps
  • Other Optical Link
Specifications/Parameters

Specifications/Parameters

HF P/N
AXS13-192-10
MFG P/N
DEM-432XT-DD
Brands
D-Link
Manufacturer
HiFiber
Max Distance
10km
Wavelength
1310nm
Form Type
SFP+
Max Data Rate
10.3Gbps
Interface
LC Duplex
Fiber(Cable) Type
SMF
DDM Support
Yes
TX Power (dBm)
-8.2~0.5dBm
Temp. Range
0 to 70°C (32 to 158°F)
Rx Sens. (dBm)
< -14.4dBm
HTS-Harmonized Code
8517706000
