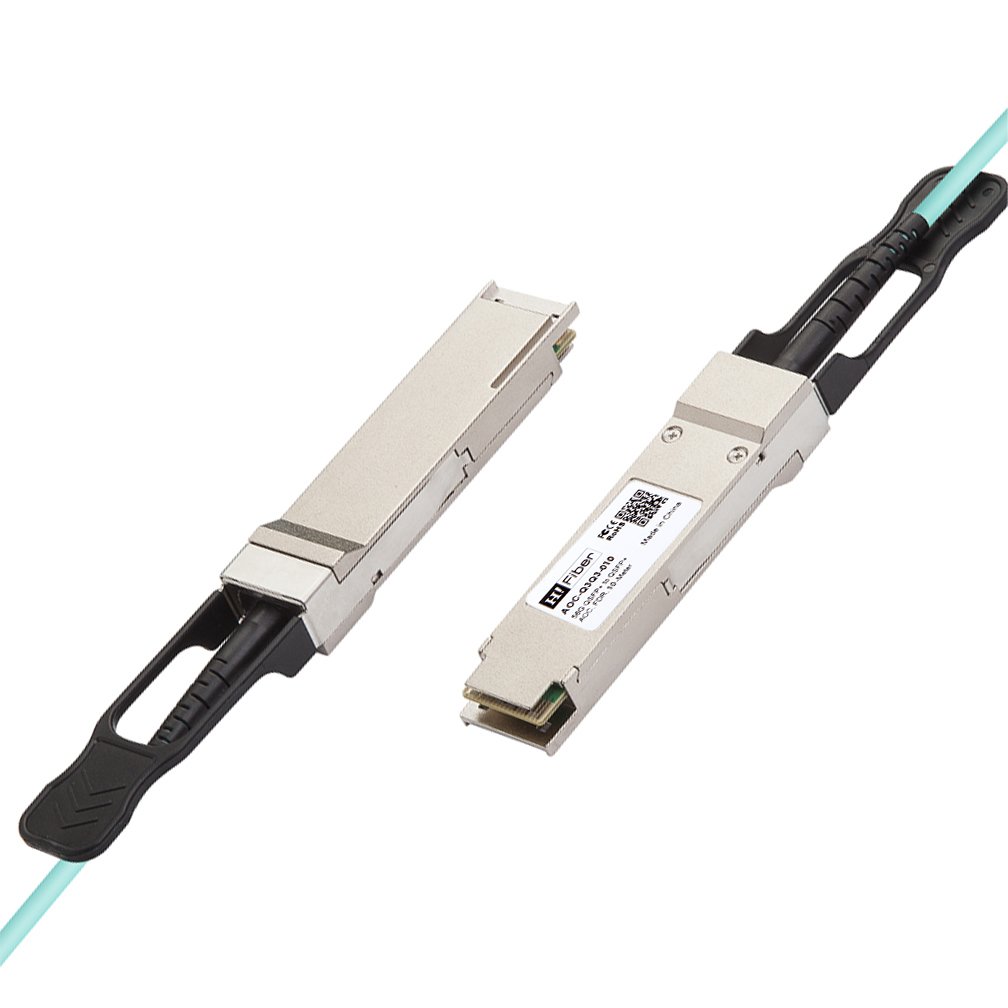

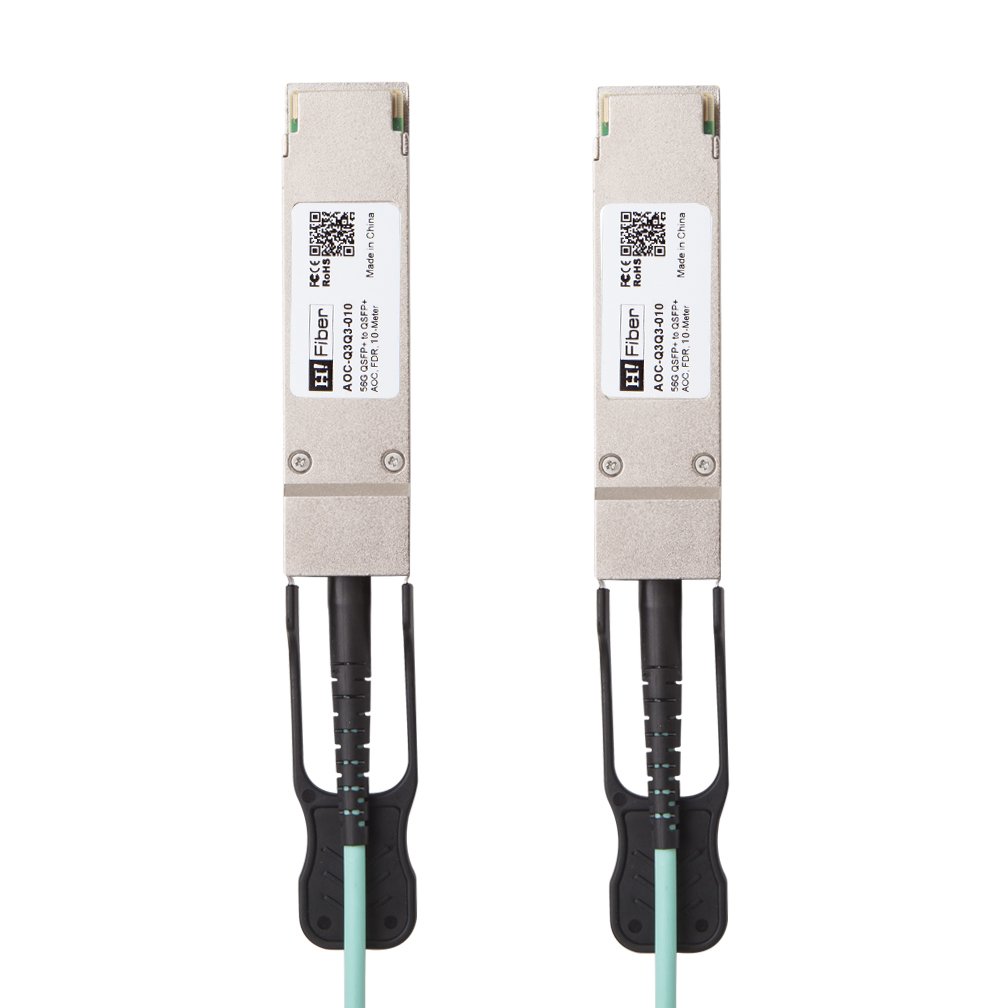

10m(33ft) 56G QSFP+ to QSFP+ AOC(Active Optical Cable), Singlemode PSM4, Customized #FDR-AOC-10M

10m(33ft) 56G QSFP+ to QSFP+ AOC(Active Optical Cable), Singlemode PSM4, Customized #FDR-AOC-10M

$116.61

HF P/N: FDR-AOC-10M

Shipping Cost: Free Shipping on orders over USD $800

Availability: in stock

loading...

10m(33ft) 56G QSFP+ to QSFP+ AOC(Active Optical Cable), Singlemode PSM4, Customized #FDR-AOC-10M

$116.61

HF P/N: FDR-AOC-10M

Shipping Cost: Free Shipping on orders overUSD $800

Availability: in stock

Description

10m(33ft) 56G QSFP+ to QSFP+ AOC(Active Optical Cable), Singlemode PSM4, Customized

QSFP+ Extender Solutions
Used for long-distance transmission under 40G QSFP+. The QSFP+ Port could be transferred/converted into 4x SFP+ port by Direct Attach Copper (DAC) technology under very low insert lose.
Learn More
Learn More
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More
HiFiber's 10m(33ft) 56G QSFP+ to QSFP+ AOC(Active Optical Cable) deal for high-performance computing storage customers,industry-leading Fourteen Data Rate (FDR) Quad Small Form-factor Pluggable Plus (QSFP+) Active Optical Cables (AOCs) achieve 14 Gbps data rates over long reaches up to 4km, using a fraction of the power of other brands Low power consumption of less than 1W per cable end Improves overall data-center power consumption and thermal efficiency.Enables deployment of additional ports for increased number of AOCs persystem, resulting in more connectivity options and total system cost savings.

Four bi-directional optical data links per end, each operating at data rates from 1.0 to 14.0 Gbps Compatible with multiple protocols including InfiniBand* Fourteen Data Rate(FDR), 10 Gbps Ethernet, Fibre Channel (8 and 10 Gbps), SAS 2.0 and 3.0(6 and 12 Gbps) and other protocol applications.

Low Bit Error Rate (BER) of10e-18 errors Provides increased data reliability and robustness of link versus standard transceivers with 10e-12 errors per link.

Up to 4km assembly length —singlemode fiber technology Longer reach than copper and multi-mode fiber solutions (100 meters typically), enabling deployment in data center and campus environments.

Lower cost versus standard transceivers and cable assemblies Allows for significantly more economical structured cable links.

Low-loss singlemode pigtail versions available Ensures network is capable of handling future bandwidth increases.

Minimizes future highcost cable upgrades as bandwidth requirements increase.

Firmware is field flashable via an I2C bus Ensures cables can be re-flashed while in the host systemSpecifications.

Specifications/Parameters

Specifications/Parameters

HF P/N
FDR-AOC-10M
Brands
Customized
Manufacturer
HiFiber
Connector Type
QSFP+ to QSFP+
Fiber(Cable) Type
Active Optical Cable
Length
10m
Max Data Rate
56Gbps
Temp. Range
0 to 70°C (32 to 158°F)
HTS-Harmonized Code
8544700000
