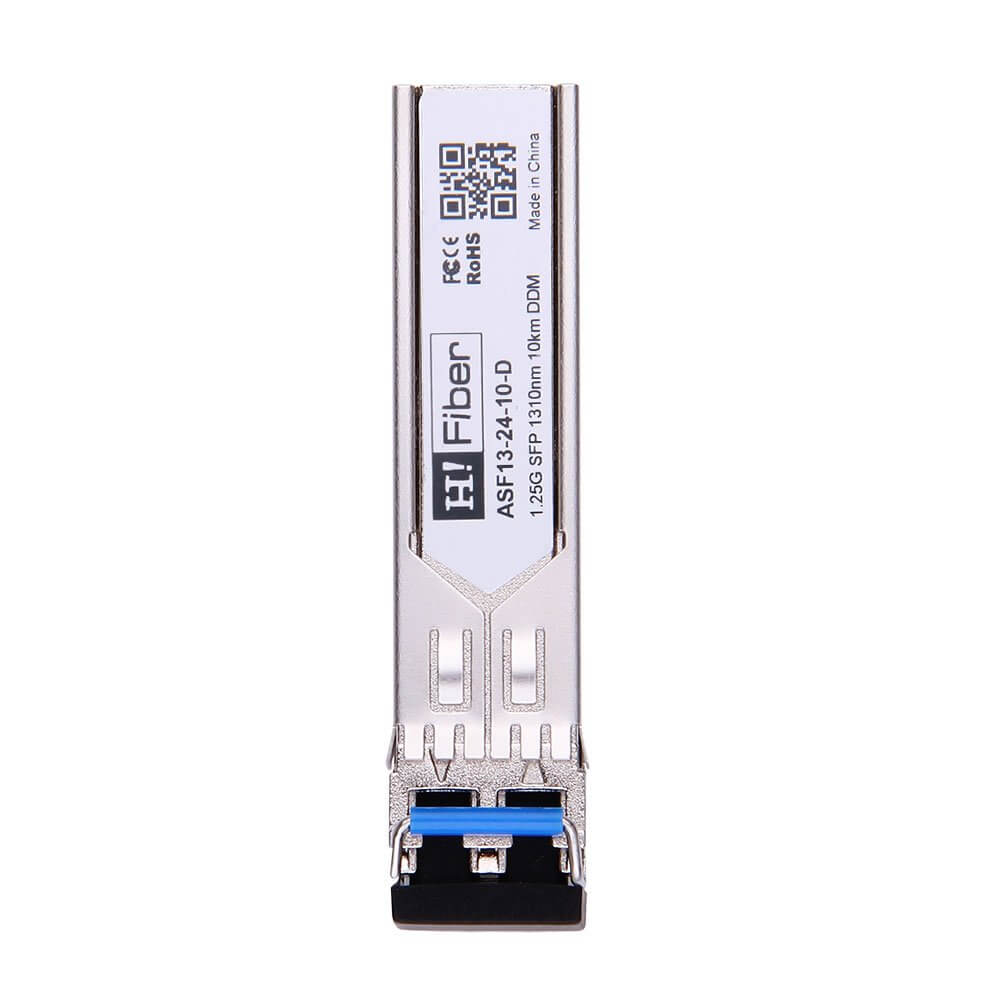

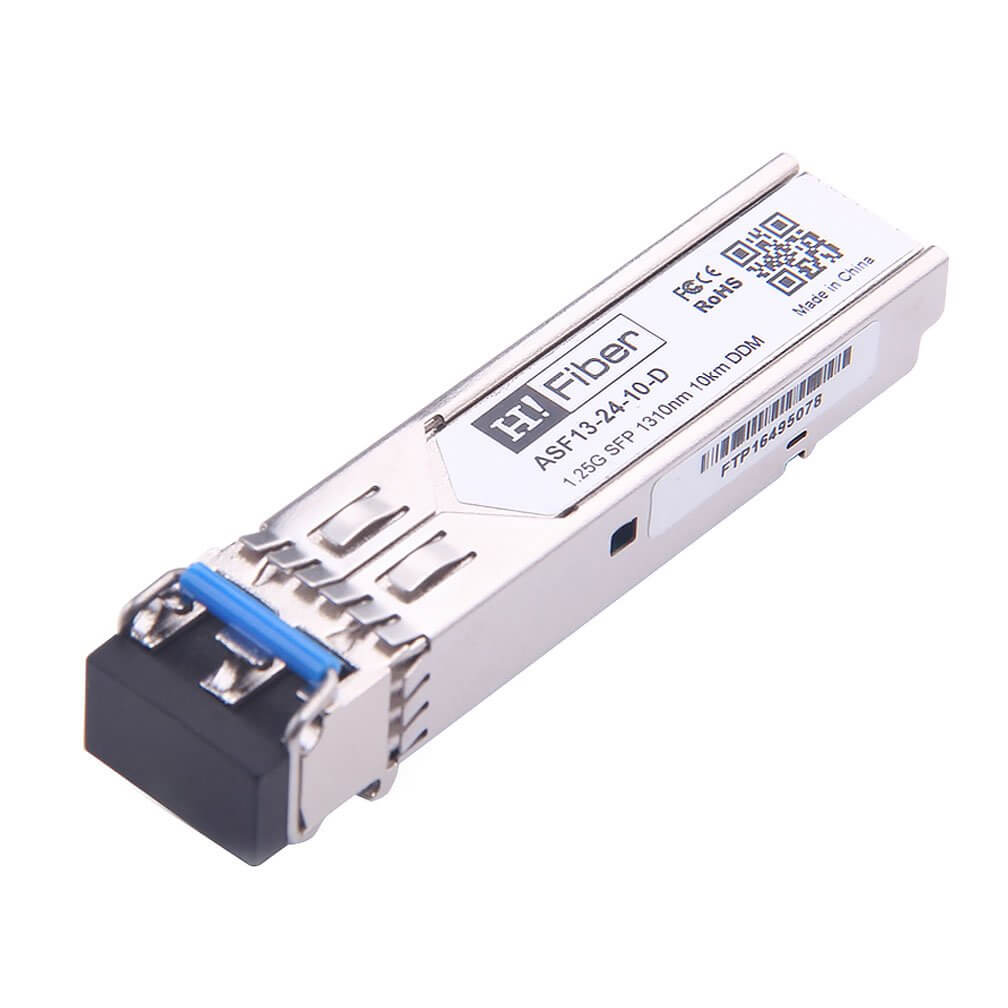

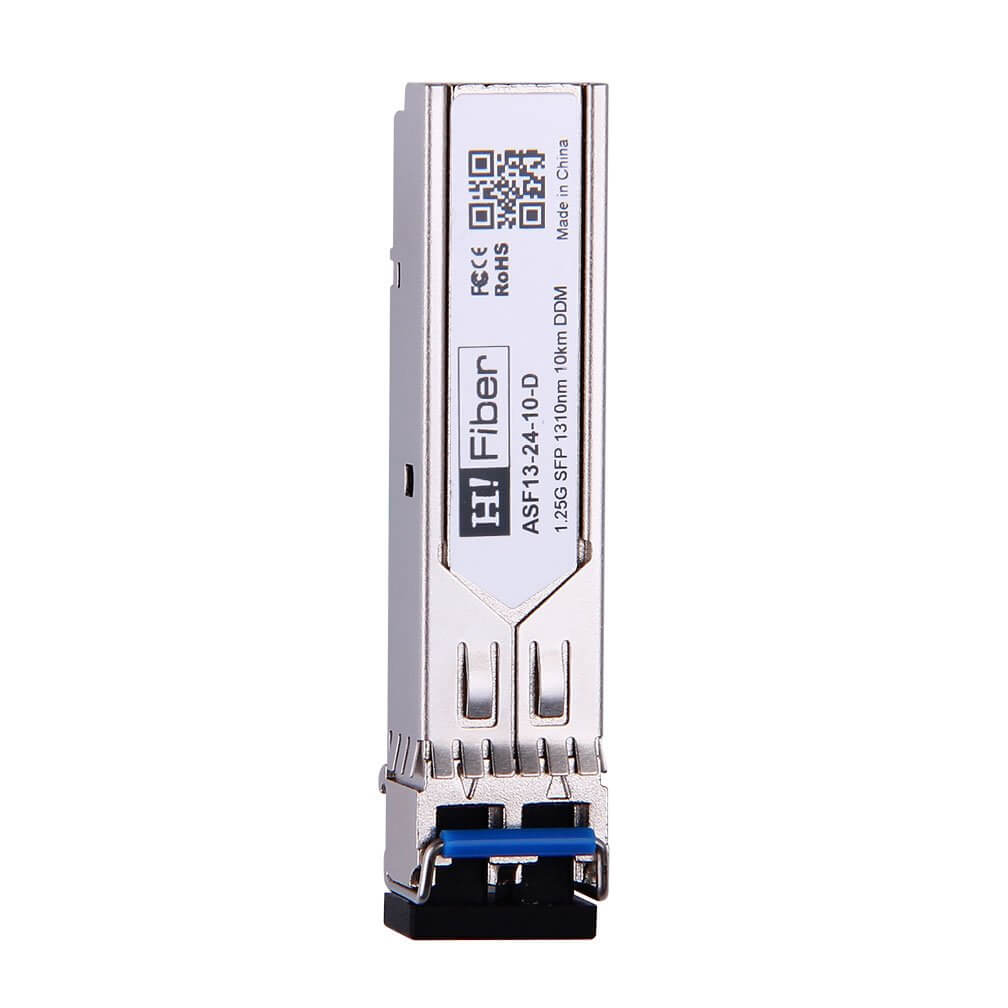

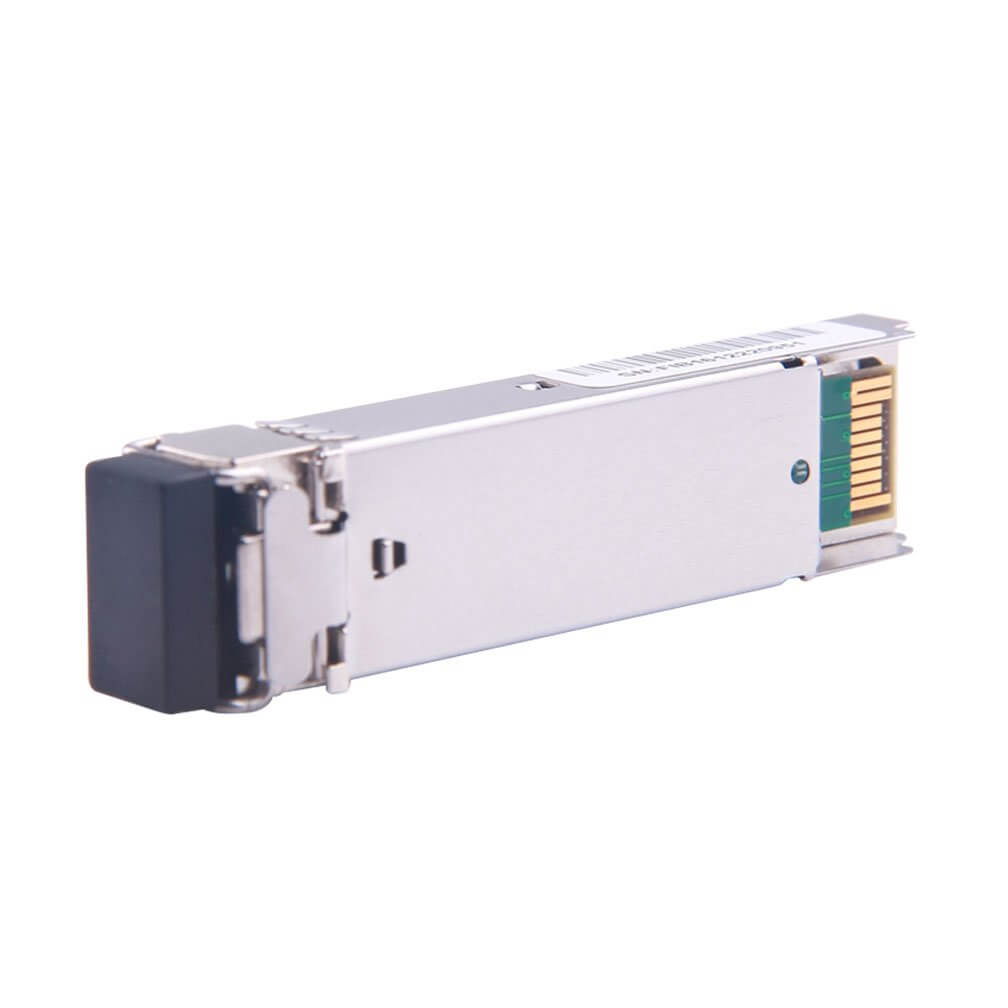

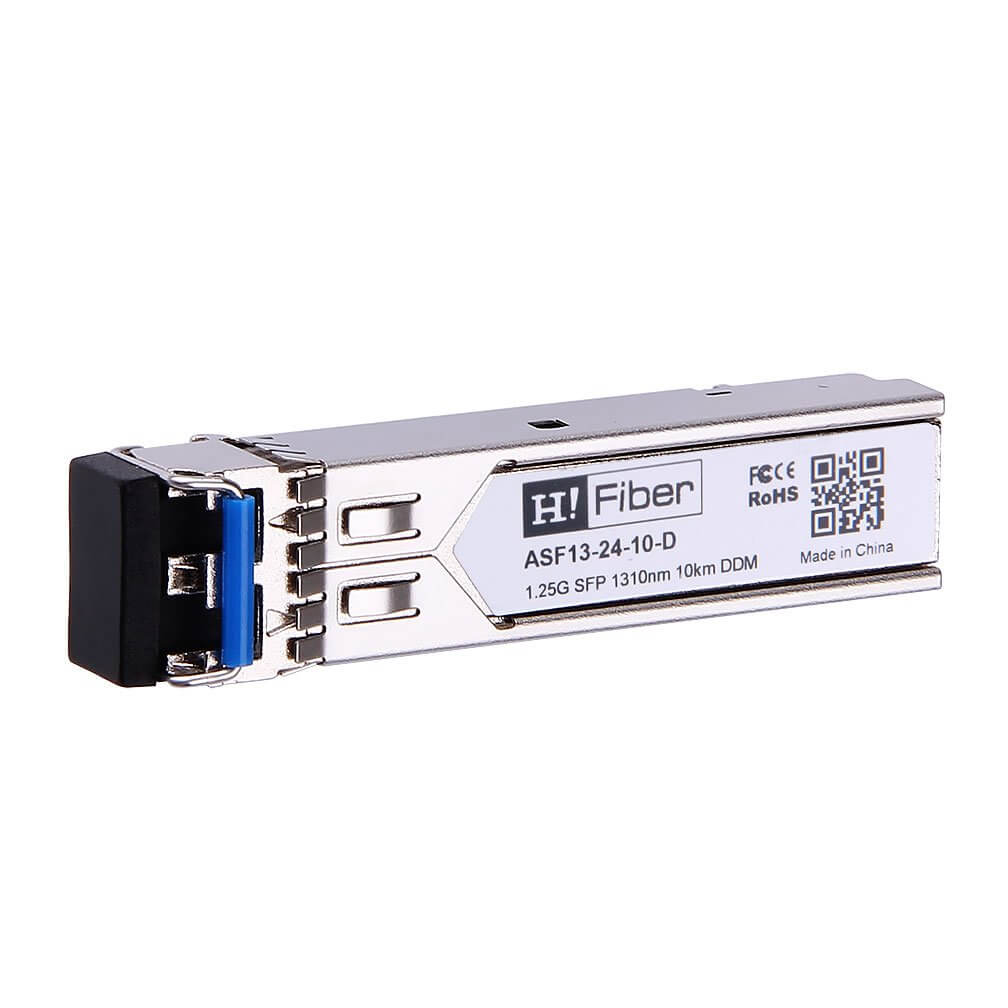

Cisco GLC-LH-SMD Compatible 1000BASE-LX/LH SFP 1310nm 10km DOM Transceiver Module for MMF/SMF #GLC-LH-SMD

Cisco GLC-LH-SMD Compatible 1000BASE-LX/LH SFP 1310nm 10km DOM Transceiver Module for MMF/SMF #GLC-LH-SMD

$9.00

HF P/N: ASF13-24-10-D

MFG P/N: GLC-LH-SMD

Shipping Cost: Free Shipping on orders over USD $300

Availability: in stock

loading...

Cisco GLC-LH-SMD Compatible 1000BASE-LX/LH SFP 1310nm 10km DOM Transceiver Module for MMF/SMF #GLC-LH-SMD

$9.00

HF P/N: ASF13-24-10-D

MFG P/N: GLC-LH-SMD

Shipping Cost: Free Shipping on orders overUSD $300

Availability: in stock

Description

Cisco GLC-LH-SMD Compatible 1000BASE-LX/LH SFP 1310nm 10km DOM Transceiver Module for MMF/SMF

QSFP+ Extender Solutions
Used for long-distance transmission under 40G QSFP+. The QSFP+ Port could be transferred/converted into 4x SFP+ port by Direct Attach Copper (DAC) technology under very low insert lose.
Learn More
Learn More
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More
HiFiber's Cisco GLC-LH-SMD Compatible 1000BASE-LX/LH1310nm 10km transceiver are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 550m transmission distance with MMF. The fiber optic transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) .

Features

  • Operating Data Rate up to 1.25Gbps
  • 850nm VCESL Laser Transmitter
  • 550-Meter@50/125 μm MMF
  • Single 3.3V Power and TTL Logic Interface
  • Hot-Pluggable SFP Footprint Duplex LC Connector Interface
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant
  • Compliant with SFP MSA Specification
  • Operating Case Temperature Standard:0°C~+70°C

Applications

  • Gigabit Ethernet
  • Fiber Channel
  • Other Optical Links
Specifications/Parameters

Specifications/Parameters

HF P/N
ASF13-24-10-D
MFG P/N
GLC-LH-SMD
Brands
Cisco
Manufacturer
HiFiber
Max Distance
10km
Wavelength
1310nm
Form Type
SFP
Max Data Rate
1.25Gbps
Interface
LC Duplex
DDM Support
Yes
TX Power (dBm)
-10 ~ -3dBm
Temp. Range
0 to 70°C (32 to 158°F)
Rx Sens. (dBm)
< -22dBm
HTS-Harmonized Code
8517706000
