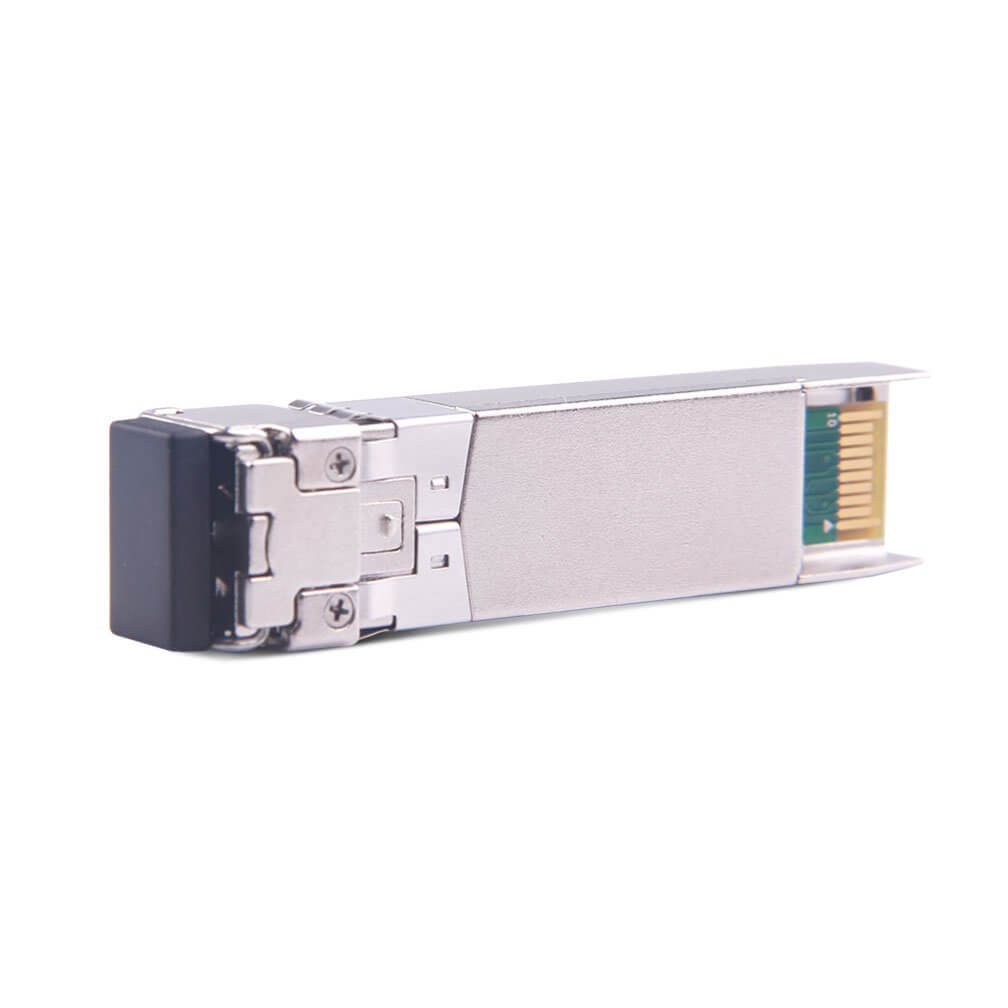

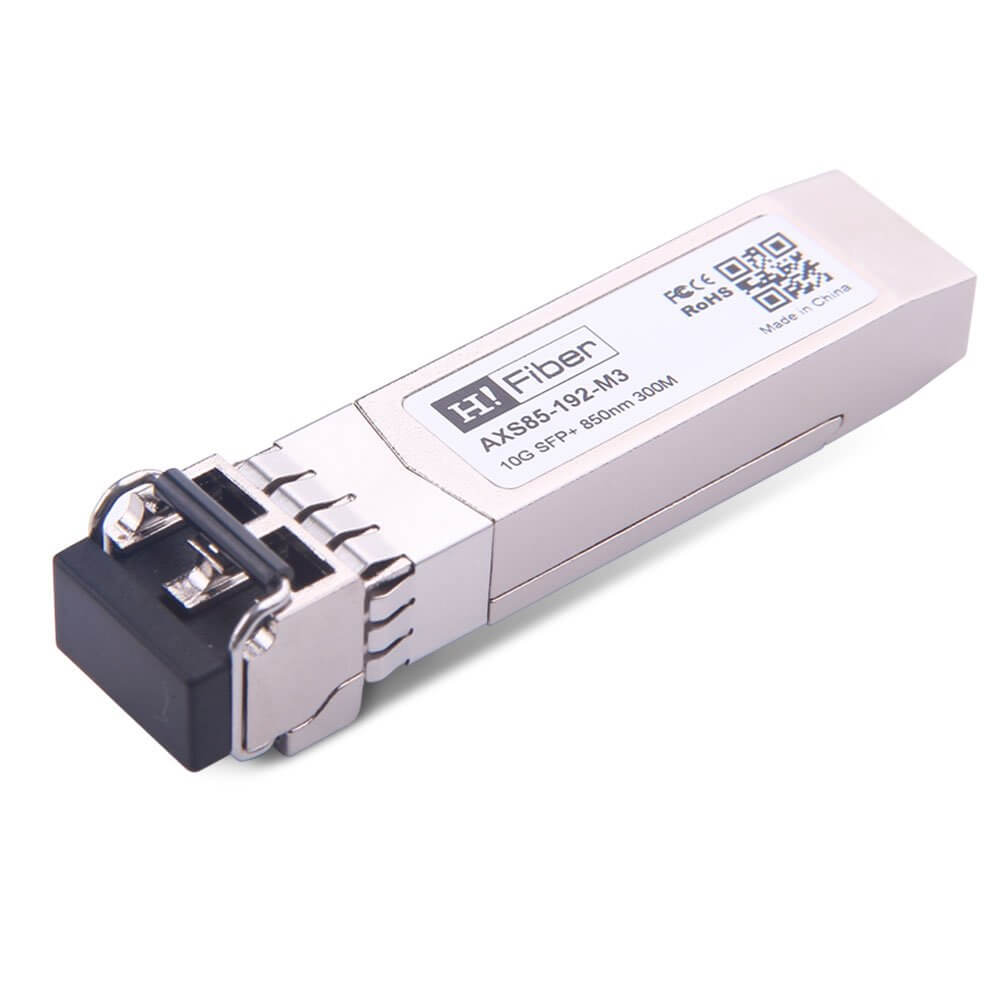

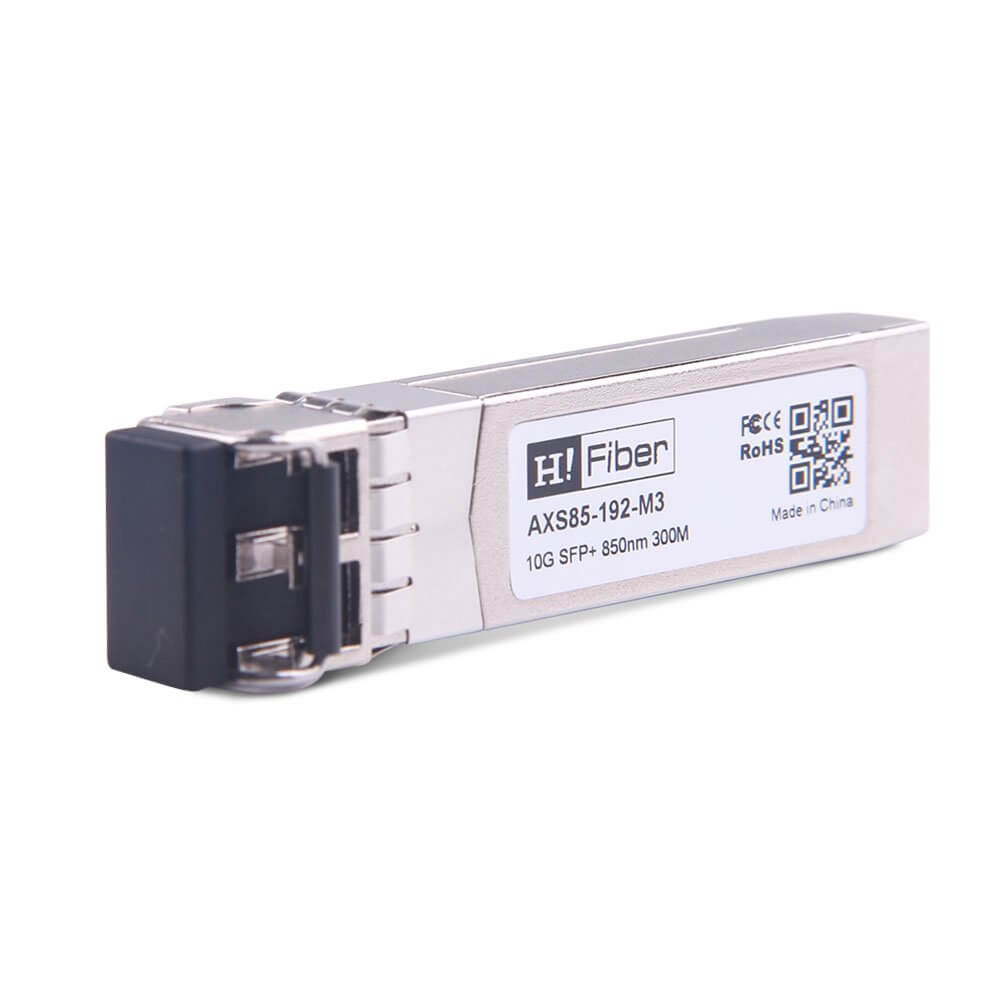

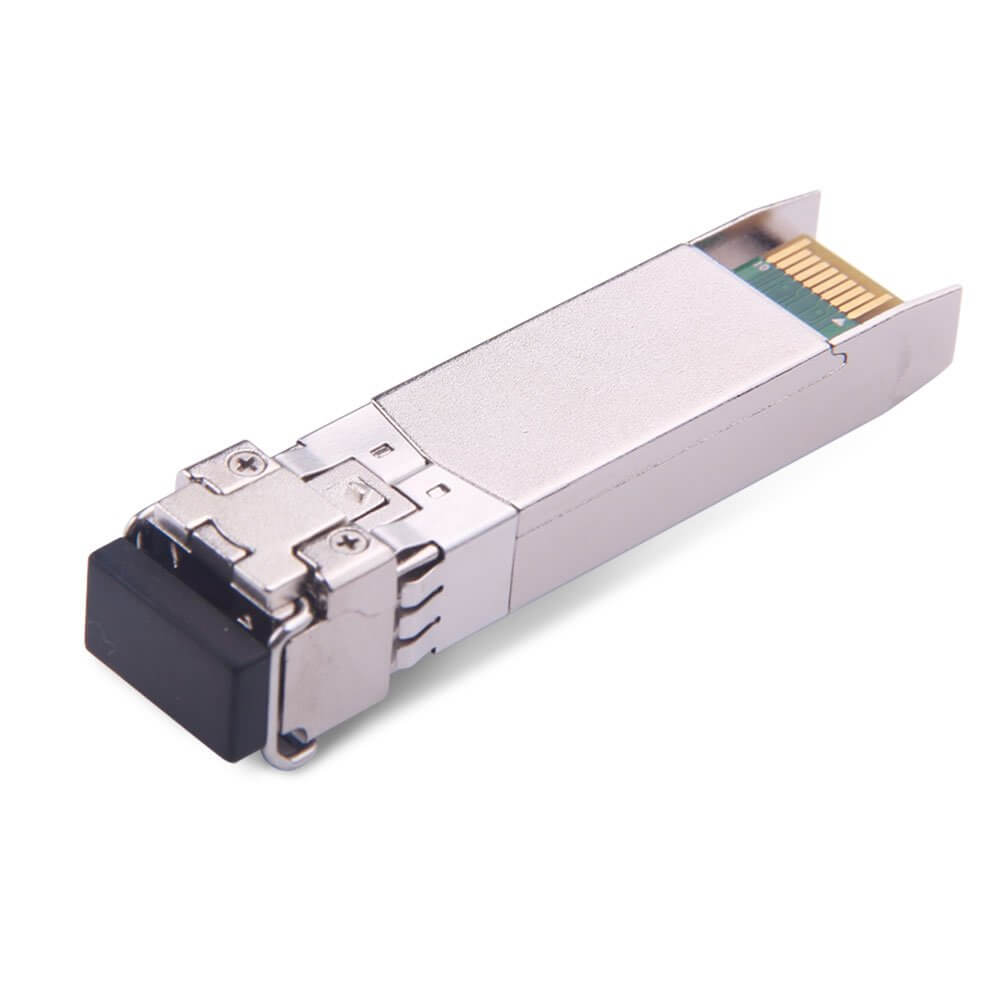

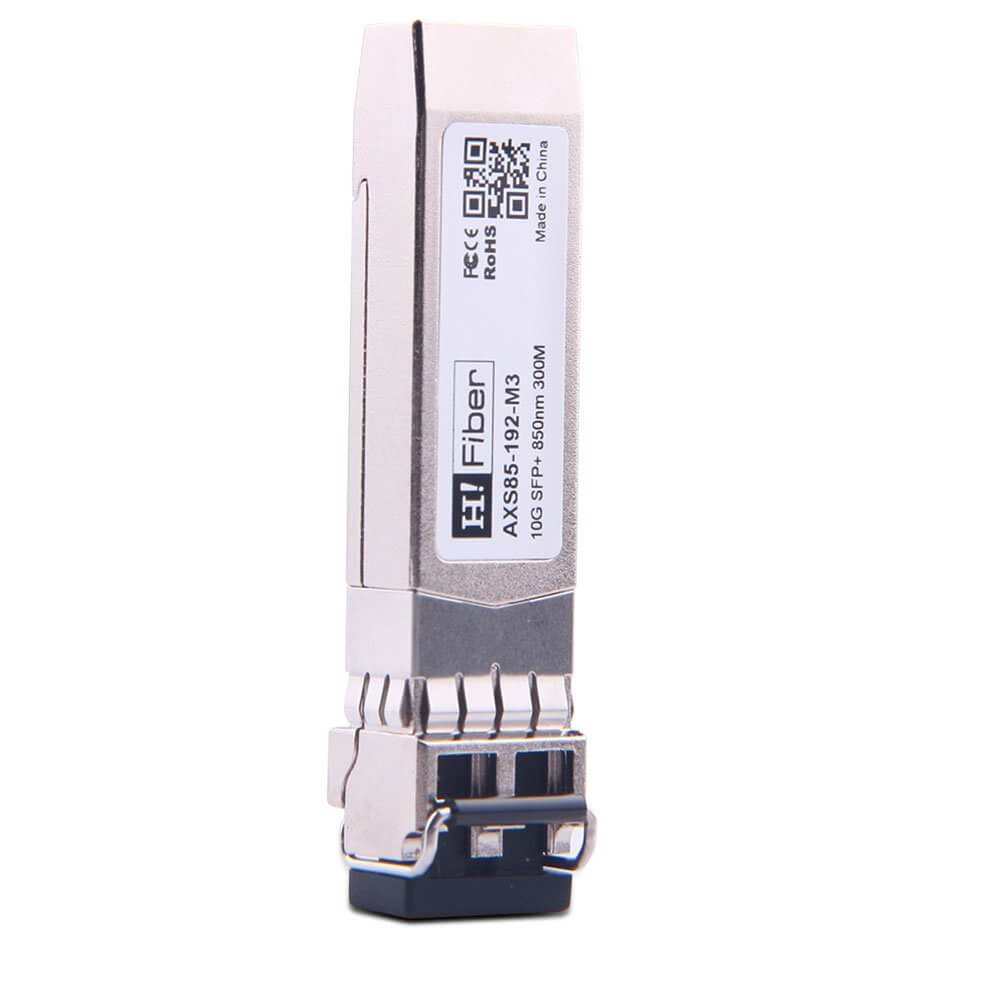

HPE J9150A Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver Module for MMF #J9150A

HPE J9150A Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver Module for MMF #J9150A

$13.90

HF P/N: AXS85-192-M3

MFG P/N: J9150A

Shipping Cost: Free Shipping on orders over USD $300

Availability: in stock

loading...

HPE J9150A Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver Module for MMF #J9150A

$13.90

HF P/N: AXS85-192-M3

MFG P/N: J9150A

Shipping Cost: Free Shipping on orders overUSD $300

Availability: in stock

Description

HPE J9150A Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver Module for MMF

QSFP+ Extender Solutions
Used for long-distance transmission under 40G QSFP+. The QSFP+ Port could be transferred/converted into 4x SFP+ port by Direct Attach Copper (DAC) technology under very low insert lose.
Learn More
Learn More
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More
HiFiber's HPE J9150A Compatible 10GBASE-SR MMF multi-mode 850nm 300m transceiver is SFP+ module for duplex optical data communications such as 10GBASE-SR and 10GBASE-SW. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. 10gbase-sr SFP module is designed for multi-mode fiber and operates at a nominal wavelength of 850 nm.The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Features

  • Operating data rate up to 10.3Gbps
  • 850nm VCESL Transmitter
  • Distance up to 300m @50 / 125 um MMF
  • Single 3. 3V Power supply and TTL Logic Interface
  • Duplex LC Connector Interface, Hot Pluggable
  • Compliant with MSA SFP+ Specification SFF-8431
  • Compliant with 10G 1200-M5-SN-I and 1200-M6-SN-I FC standard
  • Compliant with 8.5G 800-M5-SN-I and 800-M6-SN-I FC standard
  • Compliant with 4.25G 400-M5-SN-I and 400-M6-SN-I FC standard
  • Compliant with 2.125G 200-M5-SN-I and 200-M6-SN-I FC standard
  • Compliant with 1.0625G 100-M5-SN-I and 100-M6-SN-I FC standard
  • Compliant with IEEE 802.3ae 10GBASE-SR/SW
  • Operating Case Temperature Standard:0°C~+70°C

Applications

  • 10GBASE-LR at 9.953Gbps
  • 10GBASE-LW at 10.3125Gbps
  • 1000Base-LX Ethernet
  • 8x FC at 8.5Gbps
  • 4x FC at 4.25Gpbs
  • 2x FC at 2.125Gpbs
  • 1x FC at 1.0625Gbps
  • Other Optical Link
Specifications/Parameters

Specifications/Parameters

HF P/N
AXS85-192-M3
MFG P/N
J9150A
Brands
HPE
Manufacturer
HiFiber
Max Distance
300m
Wavelength
850nm
Form Type
SFP+
Max Data Rate
10.3Gbps
Interface
LC Duplex
Fiber(Cable) Type
MMF
DDM Support
Yes
TX Power (dBm)
-6~-1dBm
Temp. Range
0 to 70°C (32 to 158°F)
Rx Sens. (dBm)
< -11.1dBm
HTS-Harmonized Code
8517706000
