Cisco QSFP-4SFP25G-CU2M Compatible 1m(3ft) 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable,30AWG #QSFP-4SFP25G-CU1M/CSC

Cisco QSFP-4SFP25G-CU2M Compatible 1m(3ft) 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable,30AWG #QSFP-4SFP25G-CU1M/CSC

$47.00

HF P/N: CAB-ZQP/4ZSP-P1M

Shipping Cost: Free Shipping on orders over USD $800

Availability: in stock

loading...

Cisco QSFP-4SFP25G-CU2M Compatible 1m(3ft) 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable,30AWG #QSFP-4SFP25G-CU1M/CSC

$47.00

HF P/N: CAB-ZQP/4ZSP-P1M

Shipping Cost: Free Shipping on orders overUSD $800

Availability: in stock

Description

Cisco QSFP-4SFP25G-CU2M Compatible 1m(3ft) 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable,30AWG

QSFP+ Extender Solutions
Used for long-distance transmission under 40G QSFP+. The QSFP+ Port could be transferred/converted into 4x SFP+ port by Direct Attach Copper (DAC) technology under very low insert lose.
Learn More
Learn More
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More

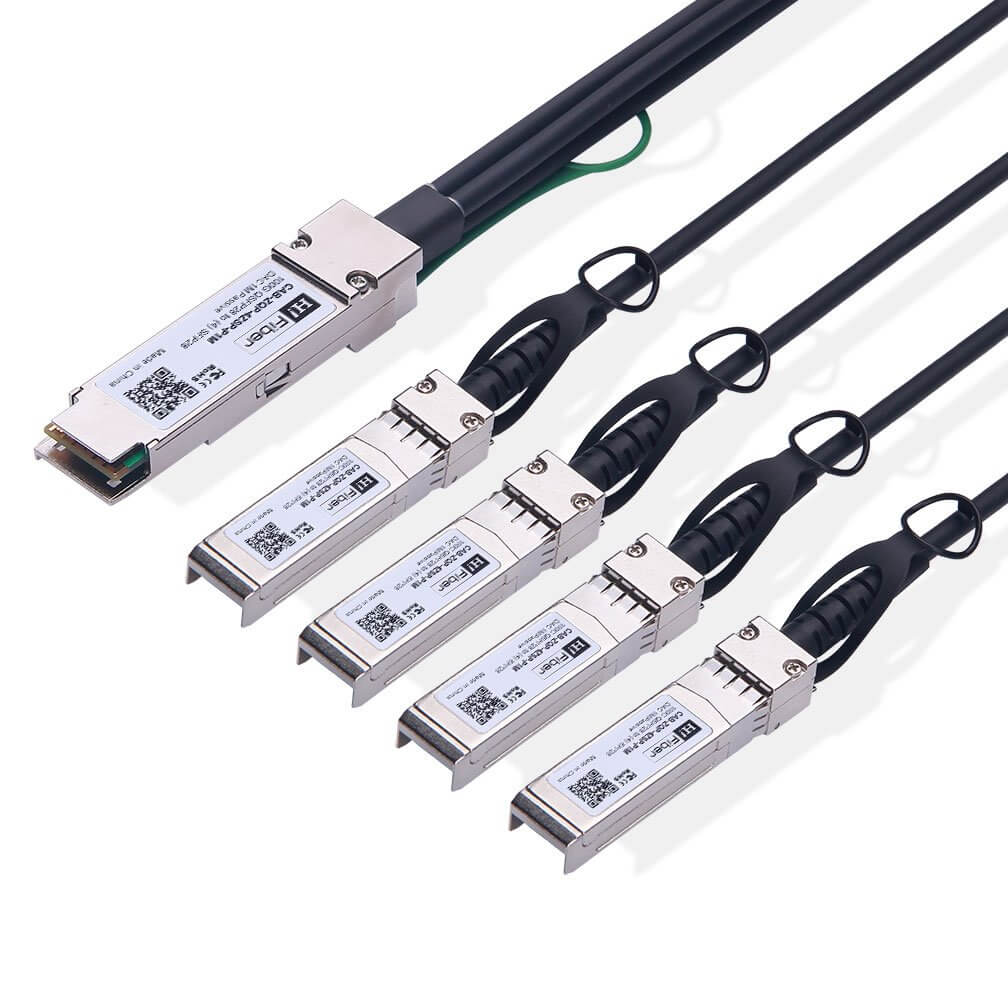

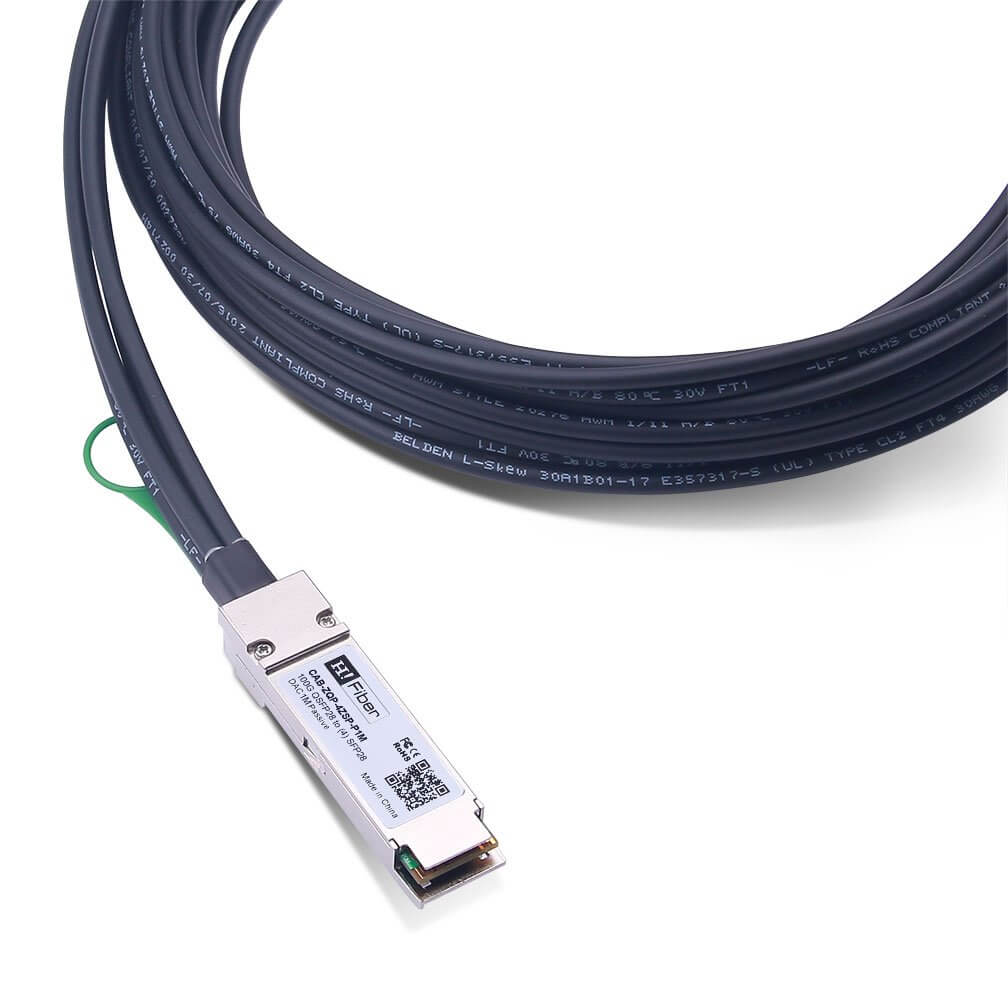

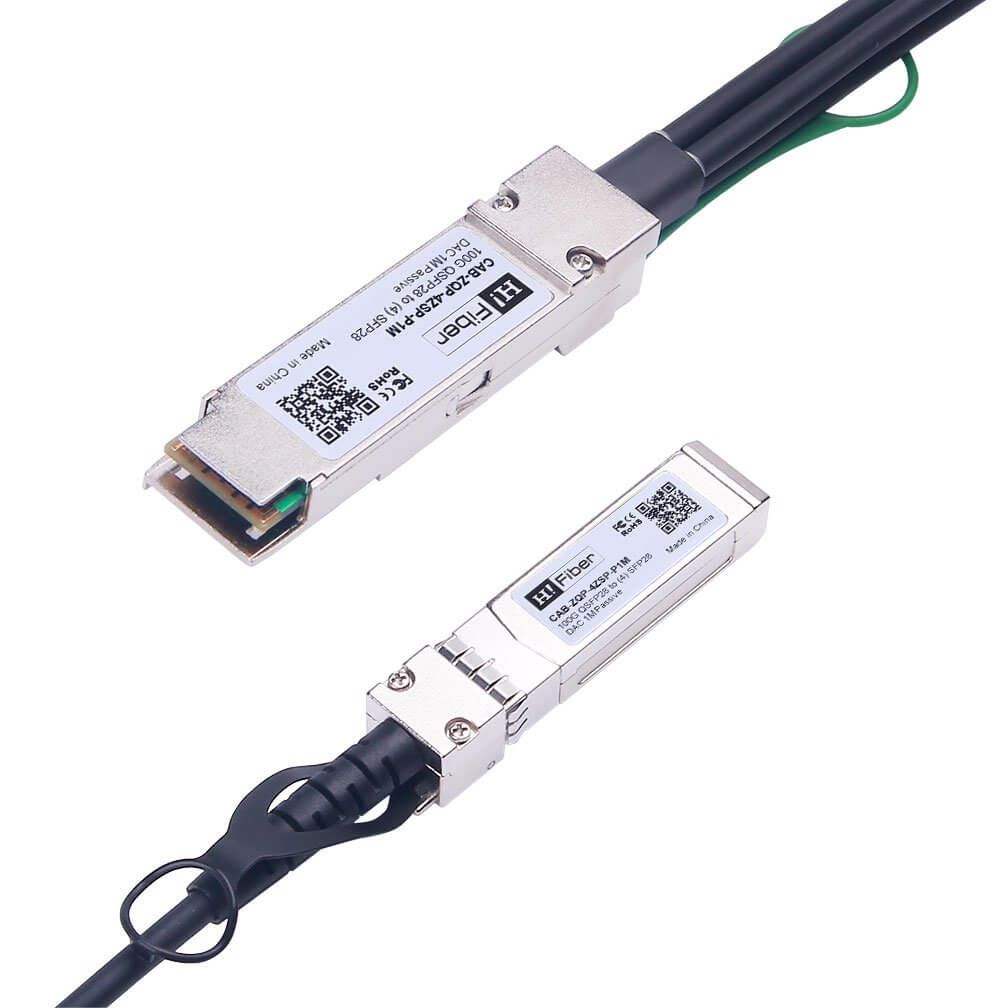

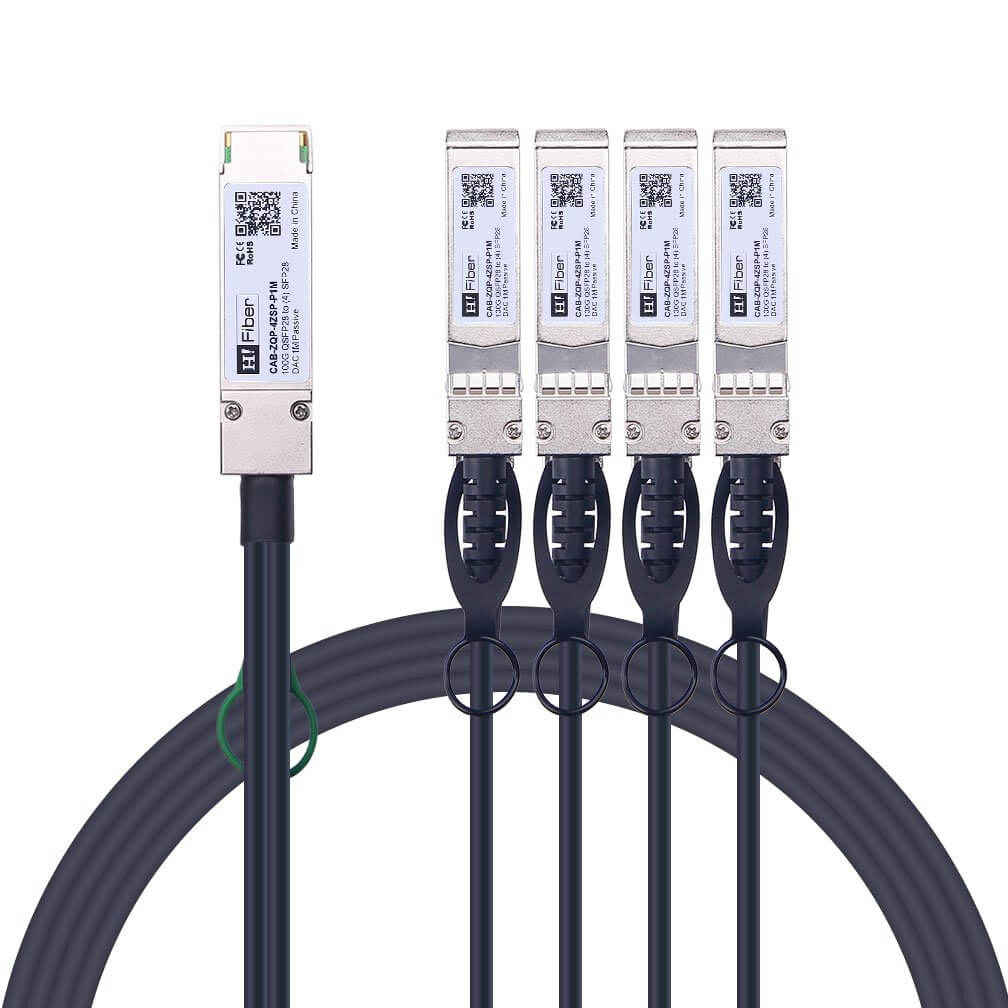

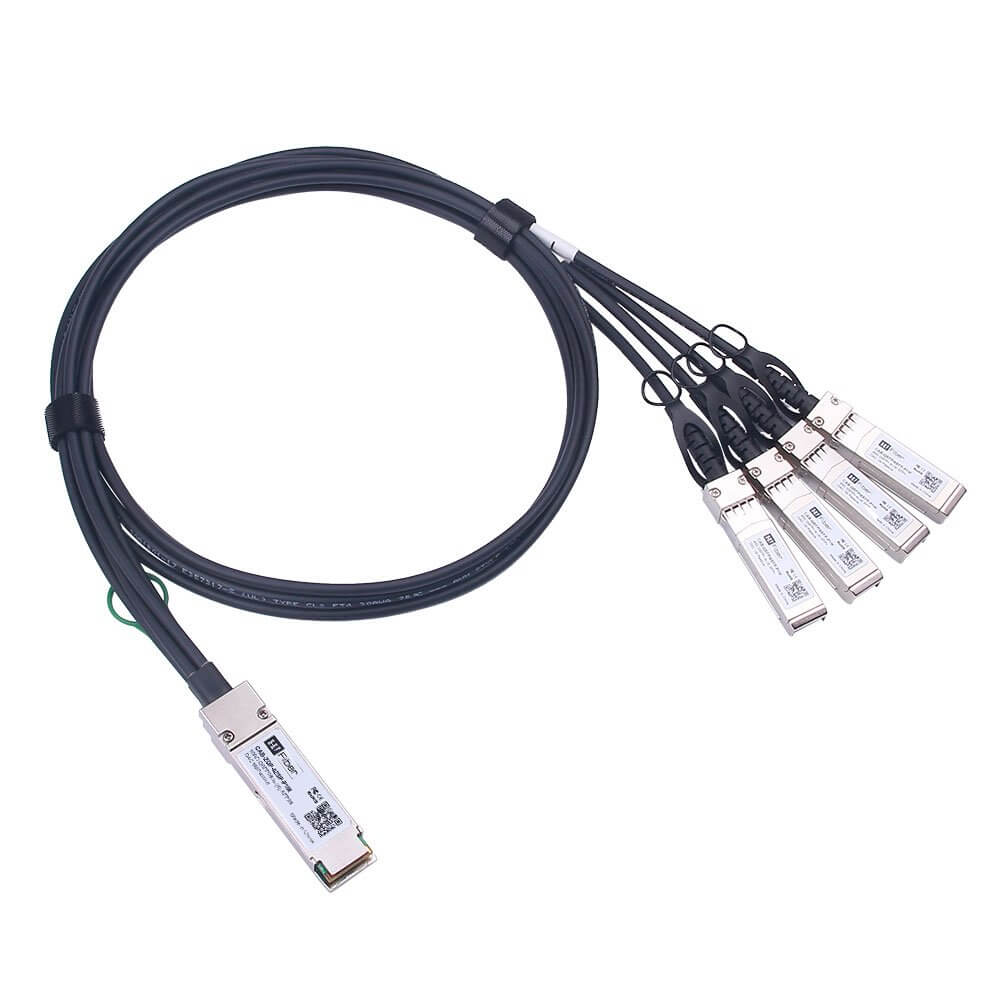

Hifiber's100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable application is a "break-out" assembly which is a hybrid transition from a QSFP28 on one terminal to four individual SFP28 on the other. The QSFP28 to 4x SFP28 Break-out DAC offers four parallel, bi-directional channels each operating at up to 25Gbps.

Features

  • Supports 100G to 4x 25G Ethernet interoperability
  • 1 Meter
  • AWG30
  • Low insertion loss and low cross talk
  • Wide operating temperature range:
    Standard: 0oC to +70oC
    Industrial: -20oC to +80oC

Applications

  • Low EMI radiation Switches, servers and routers
  • Data Center networks
  • Storage area networks
  • High performance computing
  • Telecommunication and wireless infrastructure
  • Medical diagnostics and networking
  • Test and measurement equipment

Compliant

  • 100G Ethernet (IEEE 802.3bj)
  • InfiniBand EDR
  • RoHS compliant
Specifications/Parameters

Specifications/Parameters

HF P/N
CAB-ZQP/4ZSP-P1M
Brands
Cisco
Manufacturer
HiFiber
AWG
30AWG
Length
1m
Max Data Rate
100Gbps
Temp. Range
0 to 70°C (32 to 158°F)
