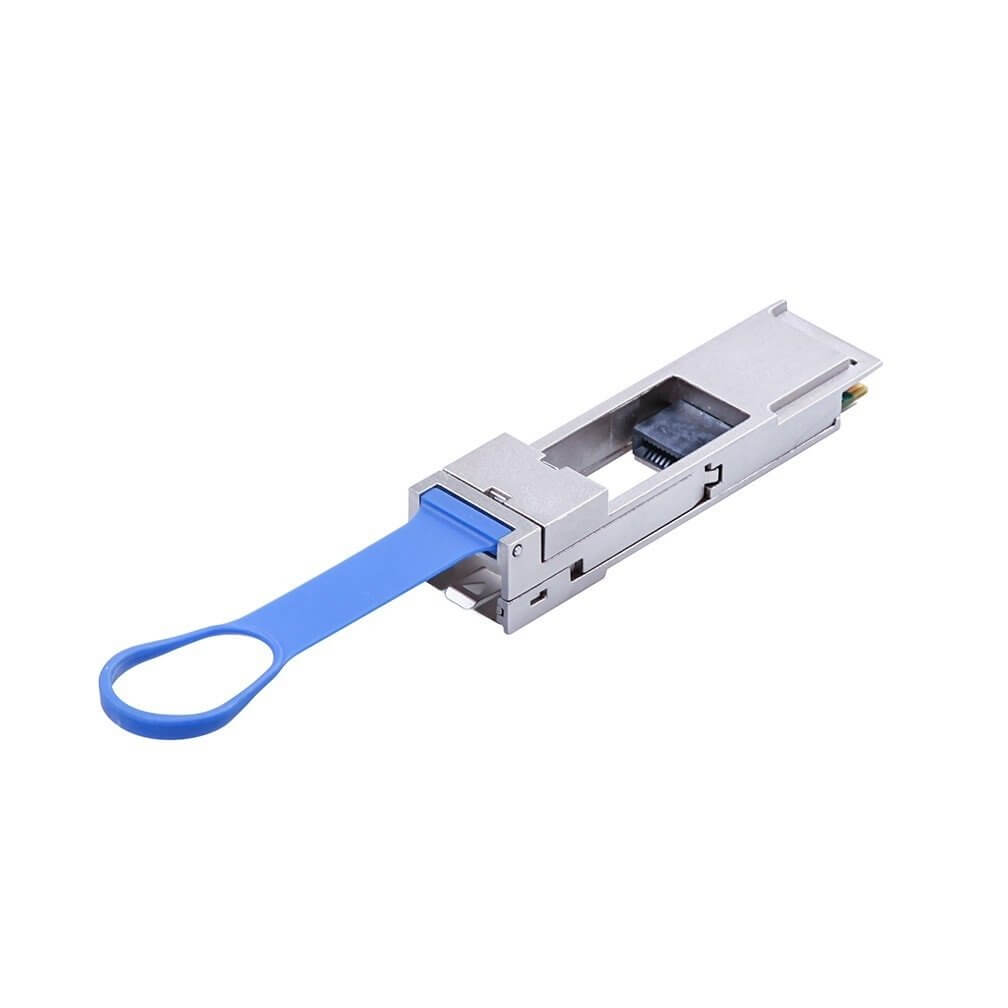

QSFP28 to SFP28 Adapter, QSA adapter #WADQS-28-B-100

QSFP28 to SFP28 Adapter, QSA adapter #WADQS-28-B-100

Regular Price: $82.00

Special Price $59.00

HF P/N: WADQS-28-B-100

Shipping Cost: Free Shipping on orders over USD $300

Availability: 4288 pcs in stock

loading...

QSFP28 to SFP28 Adapter, QSA adapter #WADQS-28-B-100

Each QSA adapter is individually tested on a full range of equipment and passed the monitoring of HiFiber's intelligent quality control system.

Regular Price: $82.00

Special Price $59.00

HF P/N: WADQS-28-B-100

Shipping Cost: Free Shipping on orders overUSD $300

Availability: 4288 pcs in stock

Description

QSFP28 to SFP28 Adapter, QSA adapter

QSFP+ Extender Solutions
Used for long-distance transmission under 40G QSFP+. The QSFP+ Port could be transferred/converted into 4x SFP+ port by Direct Attach Copper (DAC) technology under very low insert lose.
Learn More
Learn More
Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More
Hifiber WADQS-28-B-100, the Quad to Single Small Form Factor Pluggable Adapter (100G QSFP28 to 25G SFP28 Adapter or QSA) is the world's first solution for the QSFP28 to SFP28 conversion challenge. The QSA enables smooth, cost effective connections between a single lane transceiver/cable and a quad lane port. The QSA provides the option to connect an SFP28 transceiver or cable to a QSFP28 port of an Nx100 Gb/s switch or network card. It resolves the systems linking issues between different line rates and different form-factors used in switches and network adapters. The QSA provides an integration solution for systems using different vendors equipment, the QSA is vendor agnostic and provides a direct path to the SFP module memory. The QSA interoperates with all major optical module and direct attached copper cables vendors. The QSA design assures minimum loss on the conversion path from the QSFP28 cage to the SFP28 receptacle. The QSA is qualified for 25GbE SFP28 transceivers meeting the Small Form Factor Pluggable (SFP28) Transceiver Multi-source Agreement (MSA).

Features

• Secure latching mechanism

• RoHS compliant

• Low crosstalk

• Low insertion loss

• Operating case temperature: -20°C ~ +85°C

• Storage Temperature: -40°C ~ +125°C

• Supply Voltage: 3.15 ~ 3.45V

Applications

• Data Servers、Routers、Switches

• Networked storage systems

• Data Center networking

• InfiniBand Trade Association (IBTA)

• IEEE-802.3ba

Specifications/Parameters
