10Gb/s Ethernet NIC, Compatible for Intel X520-DA1 #X520-10G-1S-X8

10Gb/s Ethernet NIC, Compatible for Intel X520-DA1 #X520-10G-1S-X8

$138.60

HF P/N: X520-10G-1S-X8

Shipping Cost: Free Shipping on orders over USD $300

Availability: in stock

loading...

10Gb/s Ethernet NIC, Compatible for Intel X520-DA1 #X520-10G-1S-X8

$138.60

HF P/N: X520-10G-1S-X8

Shipping Cost: Free Shipping on orders overUSD $300

Availability: in stock

Description

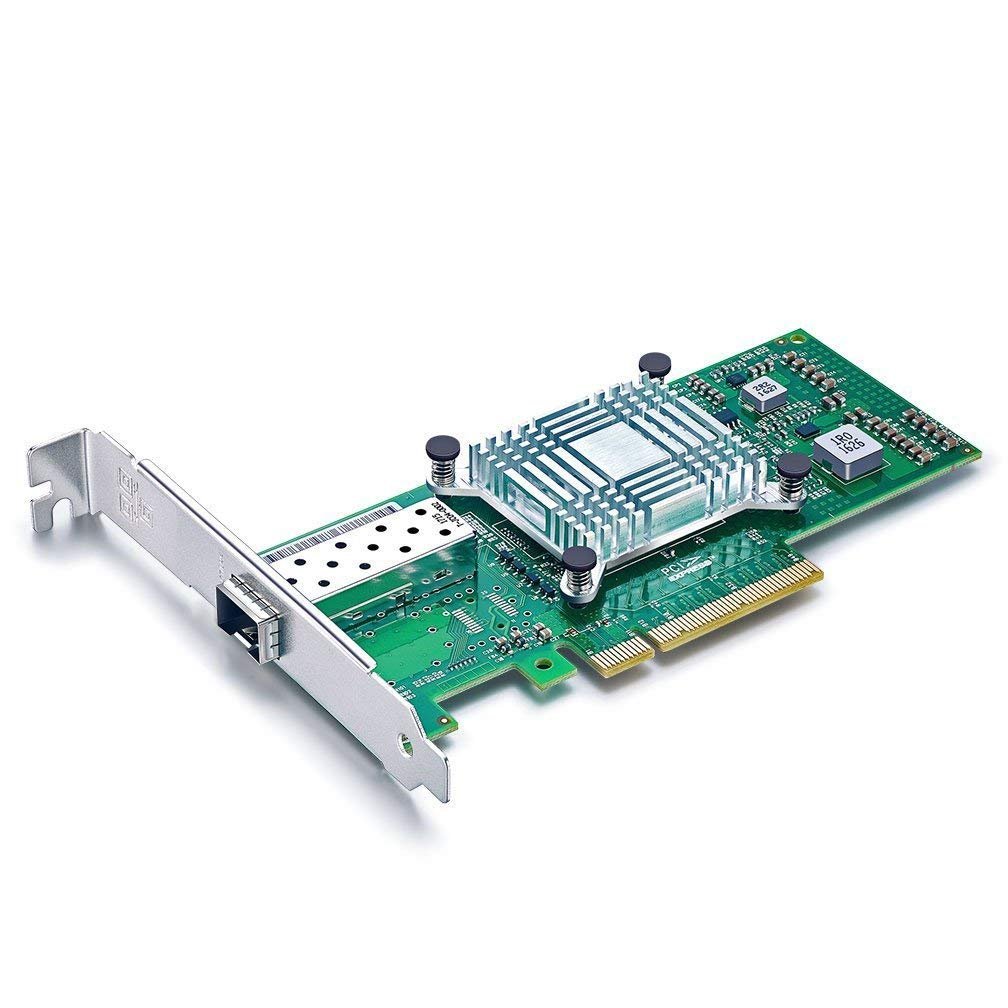

10Gb/s Ethernet NIC, Compatible for Intel X520-DA1

Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More

Ethernet Controller(s): 82599ES-LR

Connector & Cable Medium: SFP+ Direct Attach Copper/SFP+ Transceivers

Cabling Type: SFP+ Direct Attached/LC Fiber Cable Twin Axial Cabling up to 10 m

Slot Type, Maximum Bus Speed a Slot Width: PCI Express* 2.0. 5.0 G T/s x 8 Lane

Ports: Single Port

Supported Slot Height(s): Low Profile and Full Height

Ligent Offloads: Yes

VT for Connectivity: On-chip QoS and Traffic. Management, Flexible Port. Partitioning, Virtual Machine. Device Queues (VMDq), PCI-SIG* SR-IOV capable.

Storage over Ethernet: iSCSI, NFS

iWARP/RDMA: NA





Ethernet Converged Network and Server Adapters

Connectivity you can count on

Reliable Performance

● Broad OS support

● Optimized for Intel Architecture

● Low latency Ethernet



Best Choice for Virtualization

● Leadership in virtual system scalability with Flexible, Port Partitioning (FPP) and intelligent offload

● Broad VM support (VMware ESXi*, Microsoft Hyper-V*,KVM* and Xen*)



Unified Networking

● Full line of 10GbE Converged Network Adapters (CNA)

● Fibre Channel over Ethernet

● iSCSI with trusted, native OS support

● Support for data center bridging with lossless Ethernet



Platform Optimization

● Integrated PCI Express*

● Direct Data I/O Technology

Techincal_Parameters

Vertical Segment Server
# of Ports Single
Speed & Slot Width 5.0 GT/s, x8 Lane
System Interface Type PCIe v2.0 (5.0GT/s)
Cable Medium Copper
Cabling Type SFP+ Direct Attached Twin Axial Cabling up to 10m
Bracket Height Low Profile and Full Height
Ethernet Controller Intel Ethernet Controller 82599
Intelligent Offloads Yes
On-chip QoS and Traffic Management Yes
Flexible Port Partitioning Yes
Virtual Machine Device Queues (VMDq) Yes
PCI-SIG* SR-IOV Capable Yes
Supported Operating Systems

Windows Server 2012 R2*/ 2012*/ 2008 R2*/ 2008* SP2/ 2003 R2*/ 2003* SP2, Windows 7*/ Windows 8*, Windows Vista* SP2

Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11

VMware ESX/ESXi*

Specifications/Parameters

Specifications/Parameters

HF P/N
X520-10G-1S-X8
Controllers
Intel 82599
Compatible_Model
Intel X520-DA1
PCI-E
PCI-E v2.0 (5.0GT/s), X8 Lane
Manufacturer
HiFiber
