10Gb/s Converged Network Adapter (CNA)/NIC, Compatible Intel X540-T2 #X540-10G-T2-X8

10Gb/s Converged Network Adapter (CNA)/NIC, Compatible Intel X540-T2 #X540-10G-T2-X8

$60.99

HF P/N: X540-10G-T2-X8

Shipping Cost: Free Shipping on orders over USD $800

Availability: in stock

loading...

10Gb/s Converged Network Adapter (CNA)/NIC, Compatible Intel X540-T2 #X540-10G-T2-X8

$60.99

HF P/N: X540-10G-T2-X8

Shipping Cost: Free Shipping on orders overUSD $800

Availability: in stock

Description

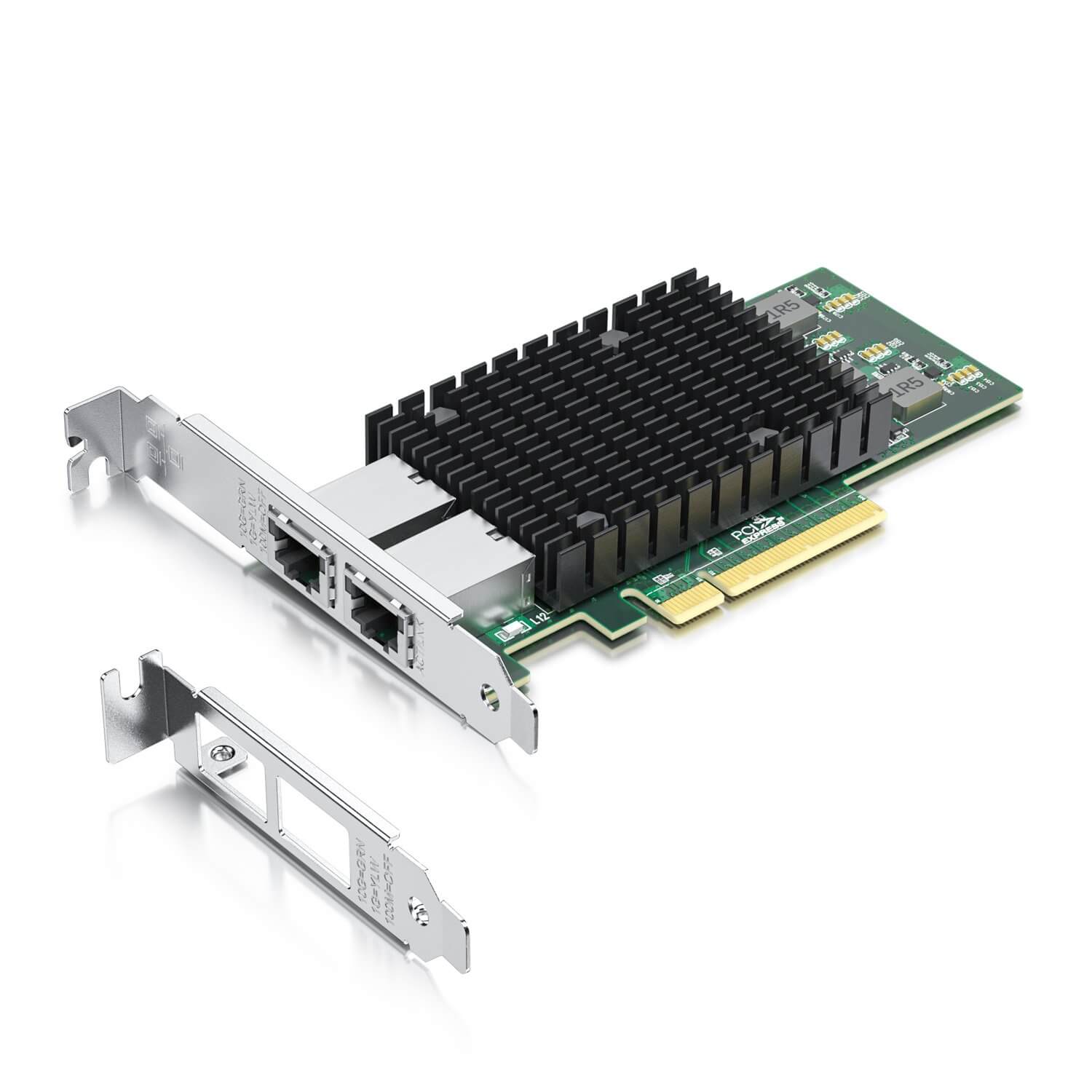

10Gb/s Converged Network Adapter (CNA)/NIC, Compatible Intel X540-T2

Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More
Hifiber's WG-X540-T2 10 gigabit lan card is the latest innovation in Intel's leadership to drive 10 Gigabit Ethernet into the broader server market. This lan card hosts Intel's latest Ethernet silicon, the Intel Ethernet Controller X540, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms.

Features

  • 10GBASE-T Simplifies the Transition to 10 GbE;
  • 10G Performance at Low Cost and Low Power;
  • Exciting New Data Center Usage Models;
  • Unified Networking (iSCSI, FCoE and LAN); Flexible Port Partitioning (FPP);
  • Flexible I/O Virtualization(VMDq and SR- IOV):10GBase-T network card includes Intel Virtualization Technology for connectivity (Intel VT-c) to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the Intel X540 controller on the adapter;
  • Flexible Port Partitioning (FPP);
  • Data Center Bridging (DCB) delivers Lossless Ethernet.

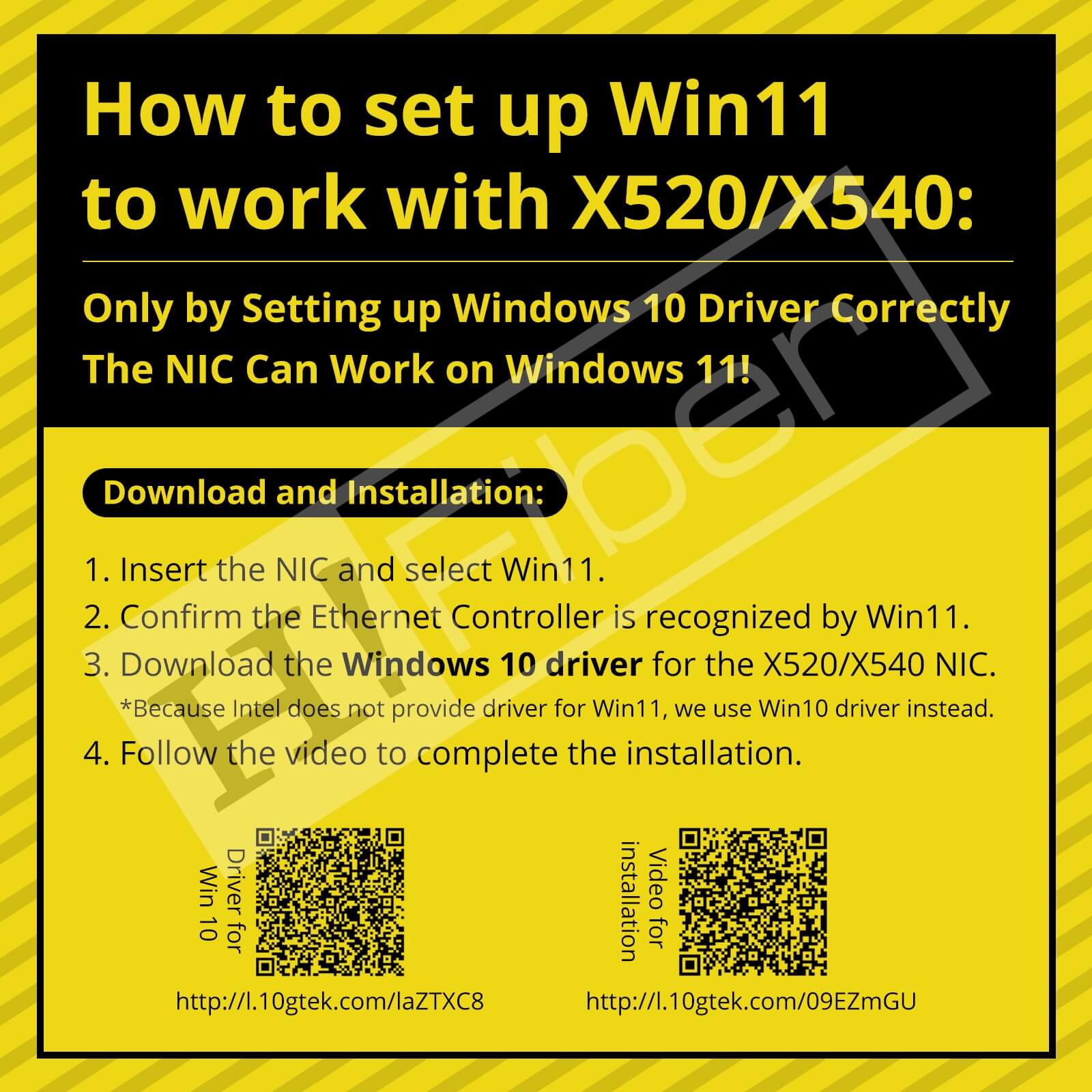

  • Compatible with Windows Server 2003/ 2008/ 2012, Windows7/8/10*/Visa, Linux, ESX/ESXi*. Storage over Ethernet: iSCSI, FCoE, NFS. (Only by setting up Windows 10 diver correctly the NIC can work on Windows 11! Please see the main picture or video for more detail of installation.)

Techincal_Parameters

Vertical Segment Server
# of Ports Dual
Speed & Slot Width 5.0 GT/s, x8 Lane
System Interface Type PCIe v2.1 (5.0GT/s)
Cable Medium Copper
Cabling Type RJ-45 Category-6 up to 55 m; Category-6A up to 100 m
Bracket Height Low Profile and Full Height
Ethernet Controller Intel Ethernet Controller X540-BT2
Intel Virtualization Technology for Connectivity (VT-c) Yes
Intelligent Offloads Yes
On-chip QoS and Traffic Management Yes
Flexible Port Partitioning Yes
Virtual Machine Device Queues (VMDq) Yes
PCI-SIG* SR-IOV Capable Yes
Supported Operating Systems Windows 7 (IA32 and X64);Windows Server 2008 (x64 and IPF);Windows Server 2008 Core (x64 and IPF);Windows Server 2008 R2 (x64 and IPF)Windows Server 2008 R2 Core (x64 and IPF)
Linux SLES 11 SP1;Microsoft Windows Server 2003*
Microsoft Vista;SUSE; SLES 10 or later, Professional 9.2 or later;Microsoft Windows Virtual Server 2005 Red Hat Enterprise 4 or later;FreeBSD 5.x or later support;VMware; ESX 4.0/4.1, ESXi 5.0 support
Fedora;EFI 1.1
Specifications/Parameters

Specifications/Parameters

HF P/N
X540-10G-T2-X8
Controllers
Intel X540
Compatible_Model
Intel X540-T2
PCI-E
PCI Express v2.1 (5.0GT/s), X8 Lane
Manufacturer
HiFiber
