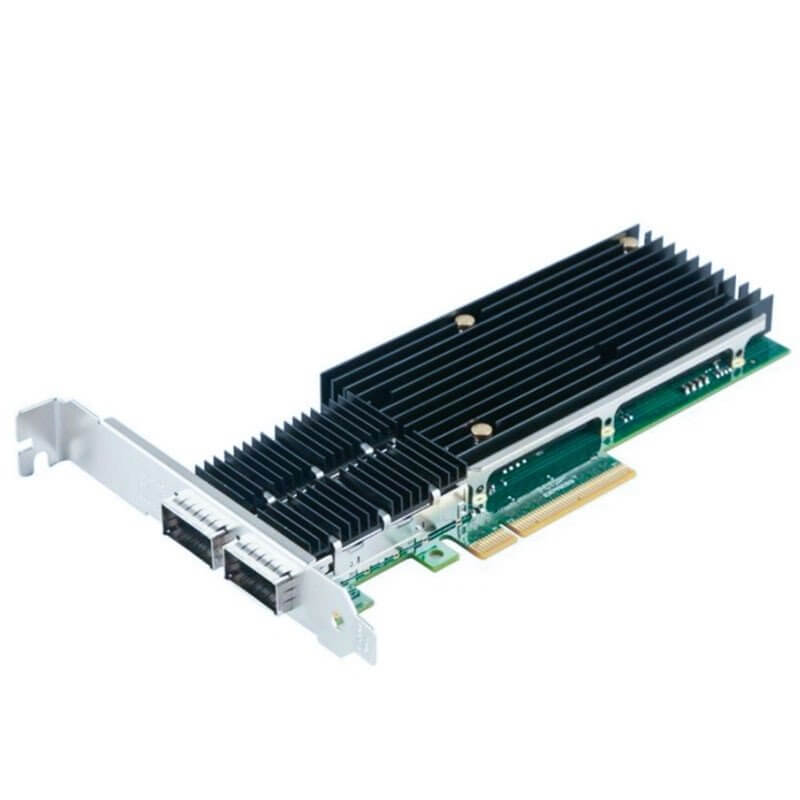

QSFP+ 40 Gigabit Ethernet PCI Express x8 CNA/NIC Compatible for Intel XL710-QDA2 #XL710-40G-2Q-X8

QSFP+ 40 Gigabit Ethernet PCI Express x8 CNA/NIC Compatible for Intel XL710-QDA2 #XL710-40G-2Q-X8

$1,111.48

HF P/N: XL710-40G-2Q-X8

Shipping Cost: Free Shipping on orders over USD $300

Availability: in stock

loading...

QSFP+ 40 Gigabit Ethernet PCI Express x8 CNA/NIC Compatible for Intel XL710-QDA2 #XL710-40G-2Q-X8

$1,111.48

HF P/N: XL710-40G-2Q-X8

Shipping Cost: Free Shipping on orders overUSD $300

Availability: in stock

Description

QSFP+ 40 Gigabit Ethernet PCI Express x8 CNA/NIC Compatible for Intel XL710-QDA2

Cisco 10GBASE-LR SFP+ Optical Transceiver Connectivity Solutions
What is the simplest cabling solution for connecting two Cisco switches with two 10GBASE-LR SFP+ optical transceivers?
Learn More
Learn More
Hifiber's XL710-40G-2Q-X8 QSFP+ 40 Gigabit Ethernet PCI Express server adapters are designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

Network Operating Systems (NOS) Software Support

  • Windows
  • Linux

LAN and Virtualization Features

  • Network Virtualization offloads for VXLAN and NVGRE
  • Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
  • Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh
  • Physical Functions – Up to 8 per port, up to 16 per device
  • Support for 128 Virtual Device Queues (VMDq) per port
  • Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
  • Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)

Host Interface

  • PCI Express X8 lanes
  • Support PCI Express Base Specification 3.0 (8GT/sec)

Performance Features

  • Support for jumbo frame up to 9.5KB
  • Flow control support
  • Priority Flow Control (draft IEEE 802.1Qbb)
  • Enhanced Transmission Selection (draft IEEE802.1az)
  • Statistics management and RMON
  • 802.1q VLAN support
  • DCB/DCB-X support
  • Message Signal interrupts (MSI-X)
  • Storage - Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FCoE.
Specifications/Parameters

Specifications/Parameters

HF P/N
XL710-40G-2Q-X8
Controllers
Intel XL710-BM2
Compatible_Model
Intel XL710-QDA2
PCI-E
PCIe v3.0, 8.0GT/s, x8 Lane
Manufacturer
HiFiber
